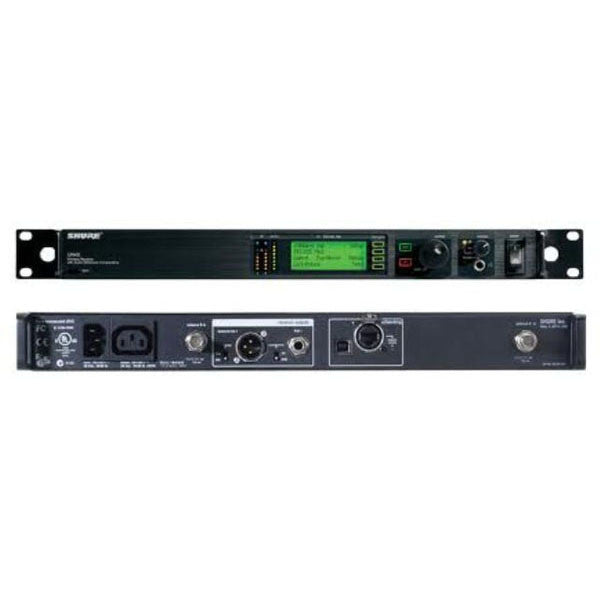

Shure UR4S+ Diversity UHF Wireless Microphone Receiver


Shop Brand : Shure
Shop All: Wireless Systems
SKU : SHUREUR4S

  • Buy Shure UR4S+ Diversity UHF Wireless Microphone Receiver online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

    Shure UR4S+ Diversity UHF Wireless Microphone Receiver.

    This Shure UR4S+ receiver adds even more flexibility to an already great unit. You get rear-panel RF distribution ports, which allow up to 10 receivers to share an RF signal from a single antenna pair. This UR4S+ receiver operates on the J5 band (578-638MHz).The UR4S+ receiver provides a single-channel option for premium UHF-R wireless. Technology innovations such as Networked Automatic Frequency Selection and Automatic Transmitter Setup provide advanced control and robust flexibility for a wide range of professional uses. RF distribution ports allow up to 10 receivers to share a single pair of antennas.

    Shure UR4S+ Features:

    • 2400 Selectable Frequencies Across 60 MHz Bandwidth
    • Track Tuning Filtering Technology
    • Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)
    • Networked Automatic Frequency Selection
    • Automatic Transmitter Setup (including Custom Group Upload)
    • Flash Memory to Store Six 60-channel Custom Frequency Groups
    • Shure Patented Audio Reference Companding
    • Multi-function Bit-mapped Backlit LCD
    • Built-in USB & Ethernet Network Compatibility
    • Shure Wireless Workbench Control/Monitoring Software
    • Remoteable Antennas
    • Shure Microprocessor-controlled Diversity.

    Shure UR4S+ Specifications:

    • Power supply: Internal power supply
    • Battery status: Yes
    • RF Carrier Frequency Range: 470-865 MHz, depending on region
    • Working Range: UR1, UR2, UR1M: 150 m (500 ft.), under typical conditions, 500 m (1600 ft) line-of-sight, outdoors for a single system
    • NOTE: Actual working range depends on RF signal absorption, reflection and interference
    • Audio Frequency Response: 40 – 18,000 Hz,(+1 dB, –3 dB).
    • NOTE: Overall system frequency response depends on the microphone element
    • Gain Adjustment Range
    • UR1, UR1M: –20 to +35 dB
    • UR2: –10 to +20 dB
    • Modulation: FM (45 kHz max. deviation), compander system with pre- and de-emphasis
    • RF Power Output
    • See table above.
    • Dynamic Range: >105 dB, A-weighted
    • Image Rejection: >110 dB typical
    • RF Sensitivity: –110 dBm Typical 12 dB SINAD
    • Spurious Rejection: >90 dB typical
    • Ultimate Quieting (ref. 45 kHz deviation): >100 dB, A-weighted
    • System Distortion (ref. ± 45 kHz deviation, 1 kHz modulation):
    • Power Requirements: 100 to 240 Vac, 50/60 Hz
    • Current Drain: 0.8 Amps max.
    • Battery Life (Typical): UR2: 9.5 hours (low power), 6 hours (high power)
    • Operating Temperature Range: –18° to +57° C (0° to +135° F).
