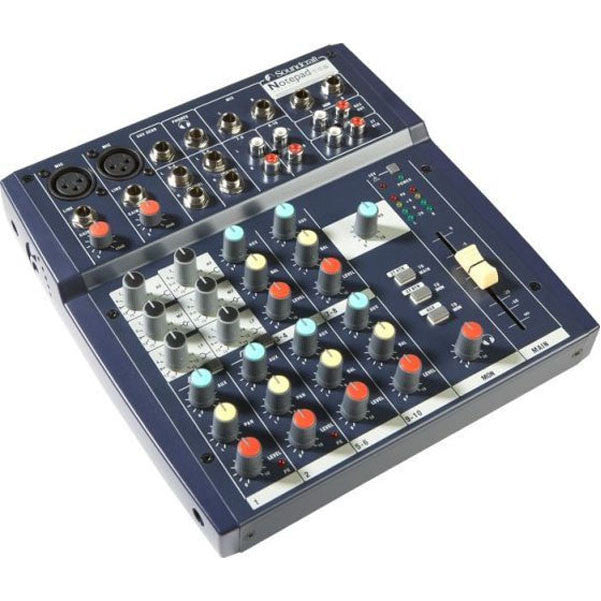

Soundcraft Notepad 102 Mixer.

The Soundcraft Notepad 102 mixer boasts Soundcraft audio performance with the acclaimed GB30 mic preamp and EQ technology in a highly compact, solid chassis.

The Notepad 102 has 2 mono mic/line inputs. It also boasts 4 stereo line inputs, and suits a very wide range of applications where simple yet high-quality mixing is required, such as in home recording, small band/cabaret PA systems, AV presentation systems, small broadcast edit suites, educational environments and general contracting.

The FX send is replaced by a standard AUX send with a dedicated output. It also provides a recording output of the mix on RCA/Phono connectors as well as a stereo input for CD playback etc.

Other highly desirable functions include a high-pass filter on the mono inputs, a 60mm fader for the mix output selectable sensitivity of +4dBu or -10dBV on each stereo input (Notepad 124 models only) and multisegment led metering on the mix output along with a headphone monitoring output

Soundcraft Notepad 102 Mixer Features:

  • Analog mixer
  • 2 Mic inputs with GB30 mic preamps:
  • 4 Stereo line channels for keyboards, MP3 player, etc.
  • Classic-sounding Soundcraft GB30 3-band British EQ
  • 100Hz high-pass filter on each mic input
  • +48V phantom power (global)
  • 1 Aux/FX Sends
  • 1 Return
  • L/R main Bus Outs.

Soundcraft Notepad 102 Mixer Specifications:

  • Frequency Response Mic / Line Input to any Output: +1/-1.5dB, 20Hz to 20kHz
  • T.H.D. Mic Sensitivity -30dBu, +10dBu @ Mix output:


  • Mic Input E.I.N. (maximum gain): -128.5dBm (150Ω source)
  • Aux, Mix and Masters (@ 0dB, at unity)

Crosstalk (@ 1kHz)

  • Channel Faders: > 87dB
  • Master Faders: > 100dB
  • CMRR (@ 1kHz) Master Faders: > 90dB


  • High Pass Filter: 100Hz @ 12dB/Octave
  • HF: 12kHz, ±15dB,
  • MF: 1kHz, ±15dB
  • LF: 80Hz, ±15dB
  • Q: 0.7
  • Power Consumption: Less than 40W
  • Operating Conditions Temperature Range: 5°C to 40°C

Input & Output Levels

  • Mic Input: +10dBu max.
  • Line Input: +22dBu max.
  • Stereo Input: +20dBu max.
  • Mix Output: +25dBu max.
  • Headphones (@32Ω): 300mw

Input & Output Impedances

  • Mic Input: 2kΩ
  • Line Input: 18kΩ
  • Stereo Input: 20kΩ
  • Outputs: 150Ω
  • Dimensions  (WxHxD):242mm (9.5") 45mm (1.8") 220mm (8.7")
  • Weight: 1.6 kg (3.5 lbs).
