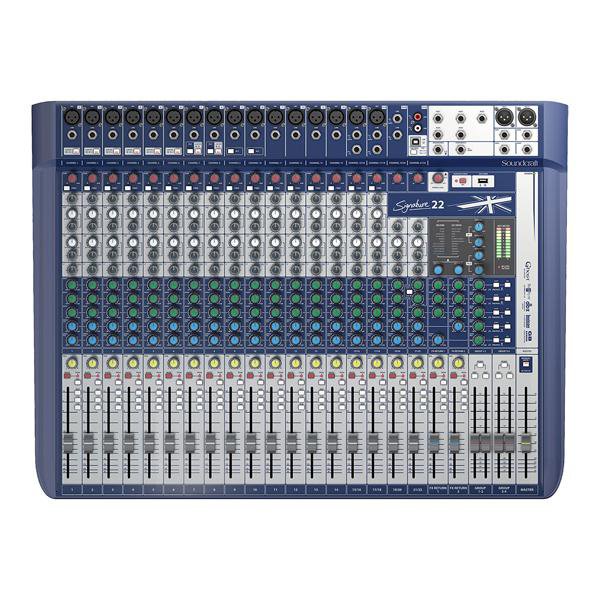

Soundcraft Signature 22 Mixing System

Overview: Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels.

The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected All the consoles come with a 2-in/2-out USB interface.

Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 9 Lite In addition, the consoles feature smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs.

The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply Features: High-Performance 22-input small format analogue mixers with onboard effects Iconic Soundcraft Ghost mic preamps with ultra-low noise performance Renowned Soundcraft Sapphyre British EQ with sweepable mid-bands per channel Lexicon Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations dbx Limiters (High-ratio Compressors) on input channels 2-in/2-out USB audio playback and recording* Switchable Hi-Z inputs for guitars , basses and other instruments Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels Comprehensive Soundcraft GB Series audio routing Smooth premium-quality faders Robust metal construction for tour-grade build quality and reliability Internal universal power supply Specifications: Channels : 22 Soundcraft Ghost Preamps : 16 Soundcraft Sapphyre EQ : 4-band (2 bands of swept mids) dbx Limiters on inputs : 8 Lexicon Effects : Dual Engine USB Interface : 2-in/2-out Auxes : 5 Subgroups : 4 mono/2 stereo Faders : 100mm Height 109mm (4.3") Width 490mm (19.3") Length 660mm (26.0") Weight 11.06kg (24.4lb) Made in China.
