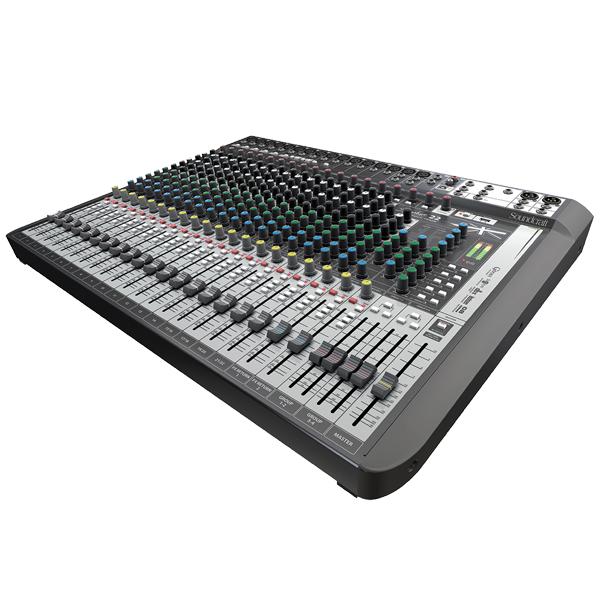

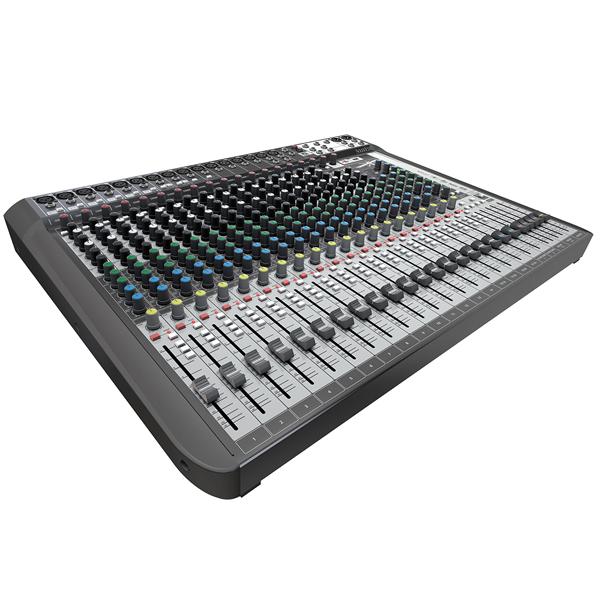

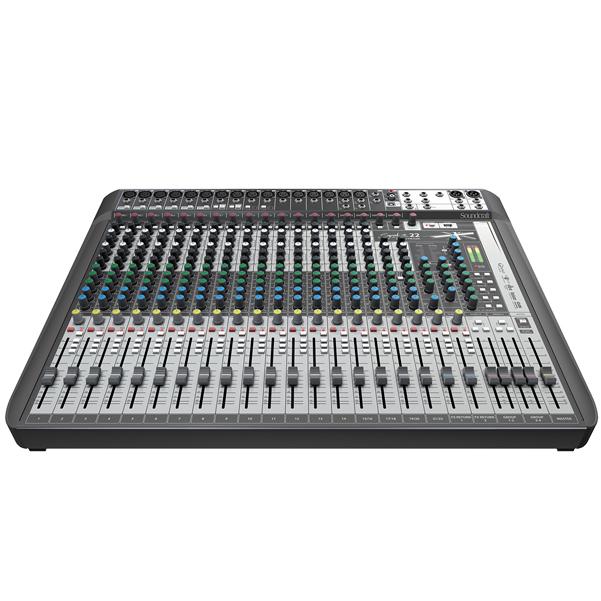

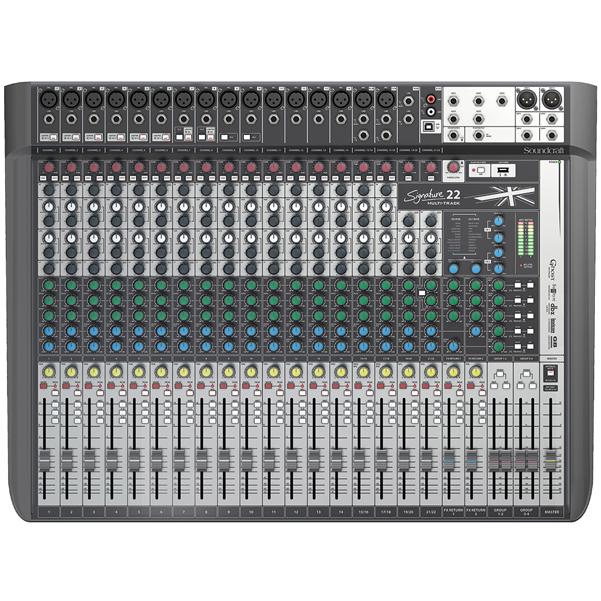

Soundcraft Signature 22 MTK Analog Mixer

Soundcraft Signature 22 MTK Analog Mixer Overview: The Soundcraft Signature 22MTK incorporate Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio They employ Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

It includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels In addition, the console’s multi-track USB audio interface allows any VST/AU/AAX/TDM/RTAS plug-ins to be inserted on any input channel, enabling studio plug-ins to be seamlessly integrated with live performances.

Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 9 Lite The console is designed to deliver pristine recordings.

Both have an ultra-low-latency USB interface that flawlessly captures every channel, which can then be mixed or transferred to a DAW for further mixdown and production The consoles offer XLR and switchable Hi-Z inputs that enable guitars , basses and other instruments to be directly connected.

The Soundcraft Signature 22MTK features smooth, premium-quality faders with GB® Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs Both the Soundcraft Signature 12MTK and Soundcraft Signature 22MTK are built using tour-grade robust metal construction and top-quality components.

Both have an internal universal power supply Features: High-Performance 22-input small format analogue mixer with onboard effects and multi-track USB recording and playback 24-in/22-out ultra-low latency USB playback and recording interface Iconic Soundcraft Ghost mic preamps with ultra-low noise performance Renowned Soundcraft Sapphyre British EQ with sweepable mid-bands per channel Lexicon Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations dbx Limiters (High-ratio Compressors) on input channels Switchable Hi-Z inputs for guitars, basses and other instruments Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels Comprehensive Soundcraft GB series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs Smooth premium-quality 100mm faders Robust metal construction for tour-grade build quality and reliability Internal universal power supply USB Interface Compatibility: PC: Supports Windows 7, Windows 8 and Windows 10.

Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan Specifications: Height: 109 mm (4.3") Width: 490 mm (19.3") Length: 660 mm (26.0") Weight: 11.36 kg (25.1lb) Signature 10 Signature 12 / 12 MTK Signature 16 Signature 22 / 22 MTK Channels 10 12 16 22 Soundcraft® Ghost Preamps 6 8 12 16 Soundcraft® Sapphyre EQ 3-band (1 band of swept mids) 3-band (1 band of swept mids) 4-band (2 bands of swept mids) 4-band (2 bands of swept mids) dbx® Limiters on inputs 2 2 4 8 Lexicon® Effects Single Engine Single Engine Single Engine Dual Engine USB Interface 2-in/2-out 2-in/2-out (14-in/12-out on 12 MTK) 2-in/2-out 2-in/2-out (24-in/22-out on 22 MTK) Auxes 3 3 4 5 Subgroups 0 2 mono/1 stereo 4 mono/2 stereo 4 mono/2 stereo Faders 60mm 60mm 100mm 100mm Made in China.
