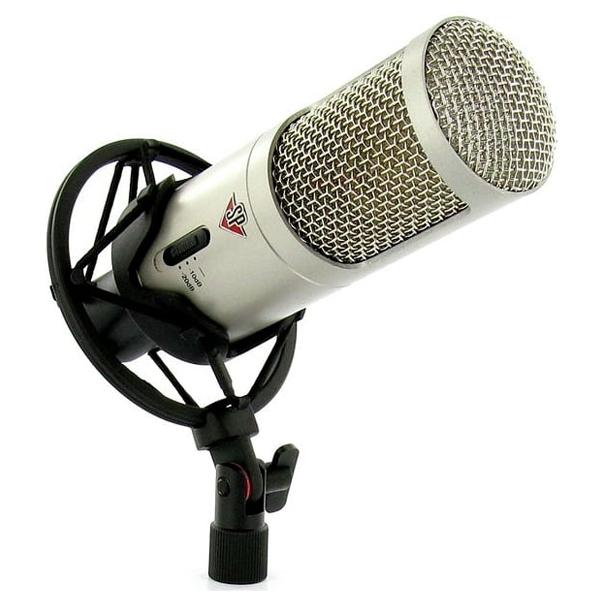

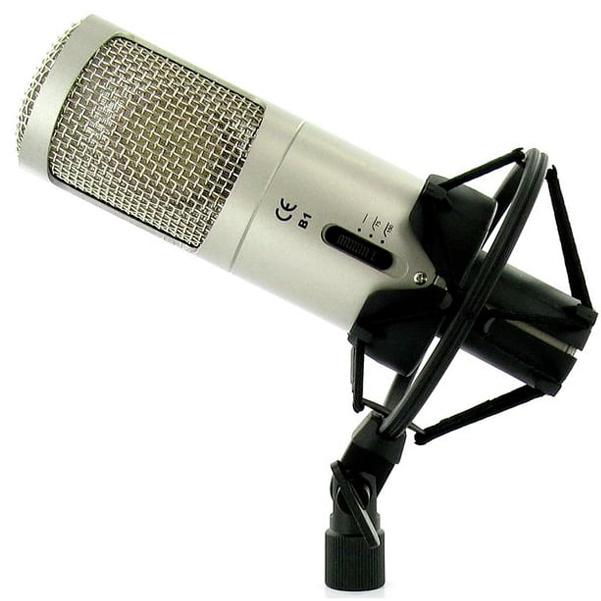

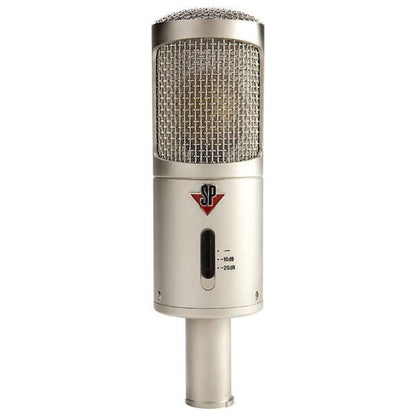

Studio Projects B1 Condenser Microphone

Studio Projects B1 Condenser Microphone Overview: The Studio Projects B1 condenser microphone is a large diaphragm cardioid microphone in a pressure-gradient transducer employing high quality transformerless design and extremely low noise Studio Projects’ B1 will enhance any professional or project studio application at an unbelievable low price.

As a result of uncompromising dedication and today's advanced production abilities, Studio Projects has broken the barrier of quality vs price for today's recording studio environment Being versatile is the key in the recording arena, and the Studio Projects B1 is no exception.

Equipped with a true 1 inch 3 um gold sputtered large diaphragm in a pressure gradient transducer capsule, the B1 will deliver the finest quality of vocal and instrumentation recordings in a wide variety of applications while offering a natural extended transparent high end, yet offer the thick bodied low end expected from a quality microphone Applications: Close miking of instruments with high sound-pressure levels Announcer’s mic for broadcasting/dubbing Home recording and project studios Vocalist recording Spot mic for: wind instruments, strings, percussion and guitar amps Features: Pressure-Gradient Transducer, 1" 3 um mylar capsule Selectable filters, 75Hz and 150Hz Selectable Pads, -10dB and -20dB Specifications: Box Contents: Foam wind screen Zippered Bag Shockmount Type: FET 3 micron 1" large single diaphragm Polar pattern: Cardioid Frequency response: 20~20000Hz Sensitivity: -34dB,(0dB=1V/Pa) Output impedance: <200 Ohm Load impedance: >1000 Ohm Maximum SPL: 132db Noise: 12dB-A (IEC651) S/N: 82 dB Pad: -10dB or -20dB Low cut: 6dB/Octave at 150 Hz or 75Hz Power requirement: 48 +/- 4V Current consumption: <2.5mA Connector: Gold-plated 3-pin XLR Circuit: Transformerless circuit (featuring extremely low self noise and large dynamic range).
