Description

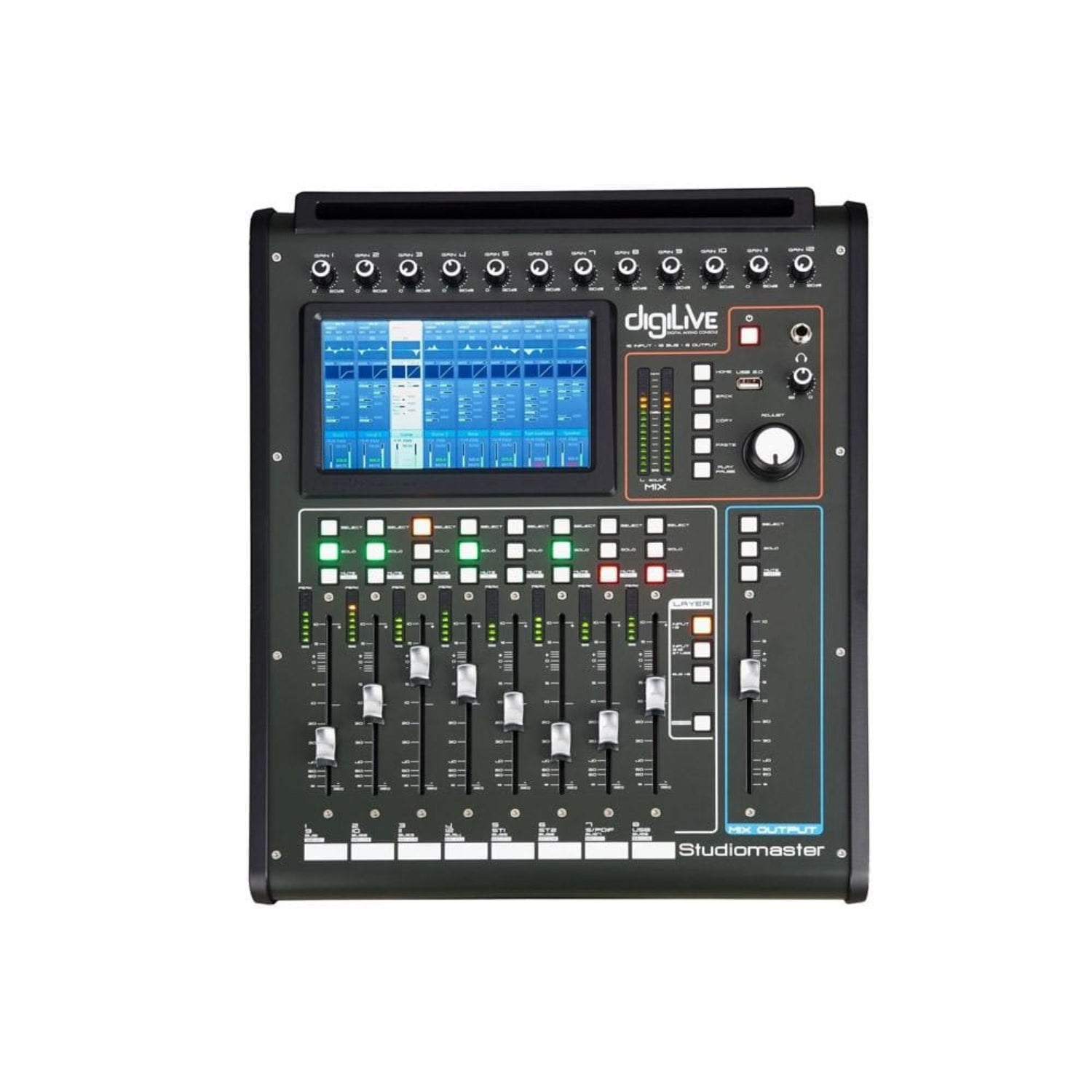

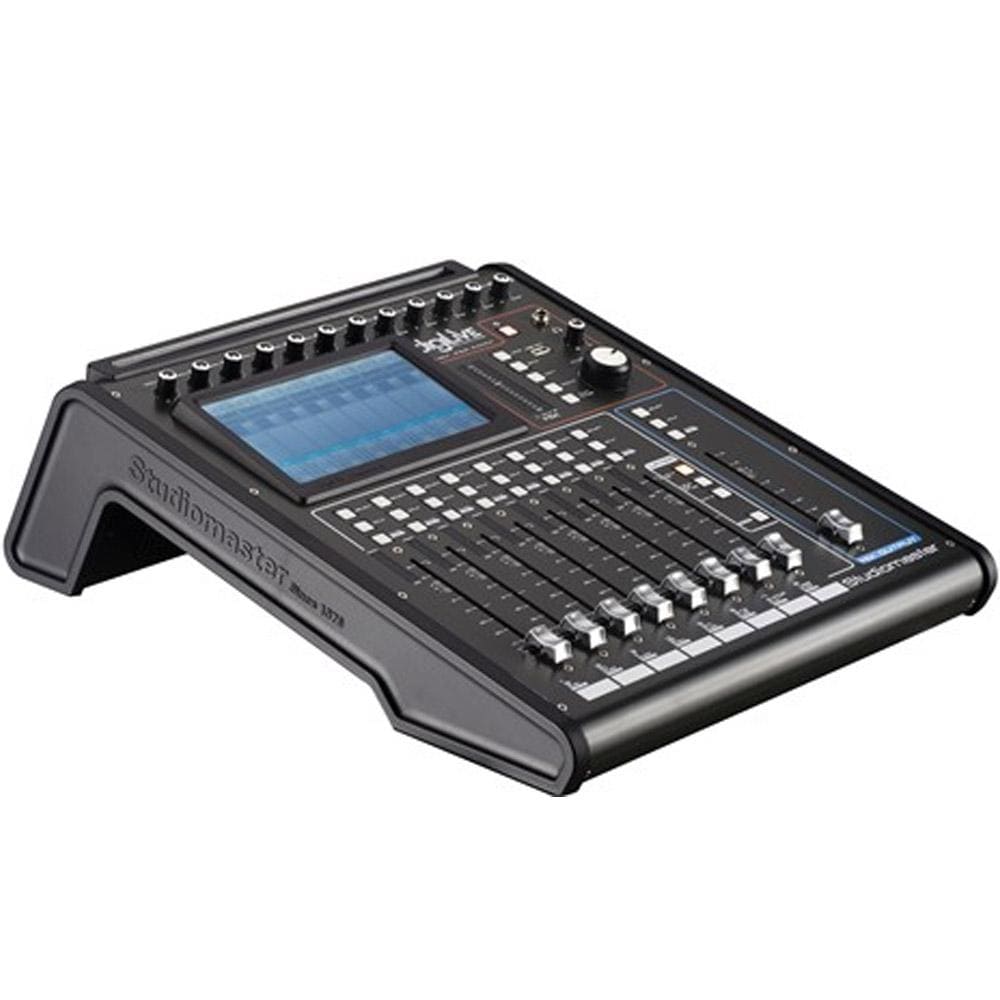

Studiomaster Digilive 16 Digital Mixer Overview: Studiomaster has just launched the digiLiVE 16, a compact digital audio mixer that employs a hybrid concept combining the advantages of hardware/touchscreen control surface and remote tablet operation. digiLiVE 16 is a 16 input/16 bus/8 output mixer with a control surface integrating a 7-inch Android-driven high-resolution touchscreen and eight motorized 100 mm fader operation alongside fully remote (iOS and Android) tablet operation.

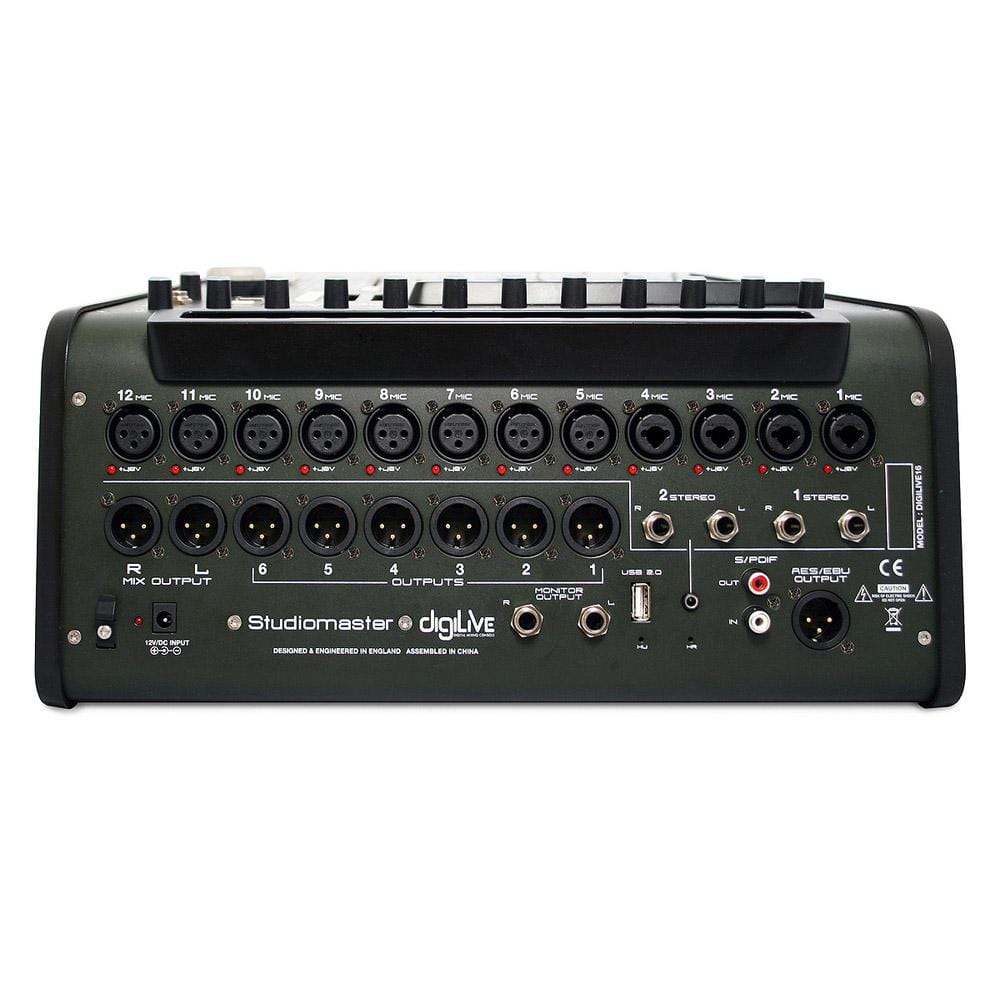

AD/DA conversion is 24 bit/192 kHz, The 16 inputs include 12 mic input channels, and there are up to eight internal effects buses with reverb, delay, 15-band EQ and modulation. The eight “smart” XLR analog outputs are assignable. Outputs also include digital AES/EBU ands SPDIF. Two USB interfaces are included (front and rear panel) supporting playback and recording, scene storage and system updating. WiFi and Bluetooth wireless connectivity are supported.
Specs
 This product
Studiomaster Digilive 16 Digital Mixer
Studiomaster
Rs. 92,900 |
Zoom Livetrak L-20 20-Channel Digital Mixer
Zoom
Rs. 85,000 |
Zoom LiveTrak L‑12 12-Channel Digital Mixer
Zoom
Rs. 64,620 |
ZOOM L-12 Livetrak Digital Mixer
Zoom
Rs. 75,415 | |
|---|---|---|---|---|
| Type | Digital Mixer | Digital Mixer | Digital Mixer | Digital Mixer |
| Channels | 16 | 20 | 12 | 12 |
| Inputs - Mic Preamps | 12 channels 8 x XLR/4 x COMBO XLR/JACK | 16 x XLR-1/4" combo (mic/line) | 8 x XLR-1/4" combo (mic/line) | 8 x XLR-1/4" combo (mic/line) |
| Inputs - Line | 2 (Stereo) channels | 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo | 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo | 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo |
| Outputs - Main | 2 Left/Right balanced XLR | 2 x XLR (master) | 2 x XLR (master), 2 x 1/4" (monitor) | 2 x XLR (master), 2 x 1/4" (monitor) |
| Outputs - Other | 6 assignable balanced XLR | 6 x 1/4" (monitor) | — | — |
| Outputs - Digital | Input / Output (RCA phono), Output (XLR) | — | — | — |
| Busses/Groups | 16 | 2 x FX Buses | 1 x FX | 1 x FX |
| EQ Bands | 31 band GEQ with RTA | 3-band Mid-parametric EQ | 3-band Mid-parametric EQ | 3-band Mid-parametric EQ |
| Signal Processing | 40-bit float point, SHARC processor | Compression (16 channels) | Compression | Compression |
| Effects | up to 8 assignable effect modules (reverb, modulation, delay) | 20 effect variations ; Reverb, Delay, Chorus | 16 effect varations; Reverb, Delay | 16 effect varations; Reverb, Delay |
| Faders | 8 x motorized 100 mm faders + 1 x motorized 100mm fader for L/R mix | 18 x channel faders, 2 efx faders, 1 x master | 10 x channel faders, 1 x EFX return, 1 x Master | 10 x channel faders, 1 x EFX return, 1 x Master |
| Screen | 7" high definition touch screen | LCD screen | LCD screen | LCD screen |
| DAW Control | Yes | — | — | — |
| Data I/O | 2 for playback/recording, scene storage and system updates | — | — | — |
| USB | 2 for playback/recording, scene storage and system updates | 1 x Type A, 1 x Type B | 1 x Type B, 1 x Type A | 1 x Type B, 1 x Type A |
| Computer Connectivity | yes via WIFI external module | USB (22 x 4) | USB (14 x 4) | USB (14 x 4) |
| A/D Resolution | 192kHz, 24-bit | Up to 24-bit/96kHz | Up to 24-bit/96kHz | Up to 24-bit/96kHz |
| Headphone Out | 1 TRS Jack output | 1 x 1/4" TRS | 5 x 1/4" TRS (headphones/monitor) | 5 x 1/4" TRS (headphones/monitor) |
| Power Source | 90-240V ~ 50/60Hz power supply 24VDC output | 12V DC 2A power supply (included) | 12V DC power supply (included) | 12V DC power supply (included) |
| Features | iPad Remote Control: Yes | 22 recording tracks, 20 playback tracks, 9 scene recall settings | Save up to 9 scenes, Metronome, Powered headphone outs | Save up to 9 scenes, Metronome, Powered headphone outs |
| Manufacturer's Standard Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
| Additional Bajaao Standard Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
| Inputs - Other | — | 2 x XLR-1/4" combo (Hi-Z) | 2 x XLR-1/4" combo (Hi-Z) | 2 x XLR-1/4" combo (Hi-Z) |
| Phantom Power | — | 16 Channels (1-4, 5-8, 9-12, 13-16) | 8 Channels (1-4, 5-8) | 8 Channels (1-4, 5-8) |
| Talkback | — | Built-in Slate Mic | Built-in slate mic | Built-in slate mic |
| Software | — | Remote Mixer App (iPad, BTA-1 bluetooth adapter required) | — | — |
| Storage | — | SDHC/SDXC Card Slot | SD/SDHC/SDXC card slot | SD/SDHC/SDXC card slot |
| Rackmountable | — | Yes (RKL-12 kit sold separately) | — | — |
| Country of Origin | — | China | China | China |
| Aux Sends | — | — | 5 x Monitor | 5 x Monitor |
