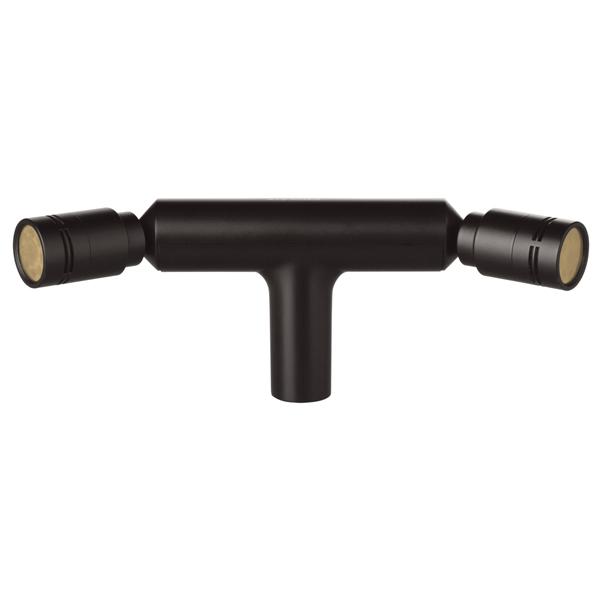

Superlux S502 ORTF Stereo Condenser Microphone

Superlux S502 ORTF Stereo Condenser Microphone Overview: ORTF is currently the most commonly used stereo recording technology S502 consists of two high-quality matching heart-shaped audio head, composed of ORTF stereo recording structure, eliminating the need to set up the trouble and can achieve excellent stereo sound recording Following the successful launch of Superlux high-quality S125, S241, and then further play a simple and direct design concept, so that stereo recording workers have a convenient tool.

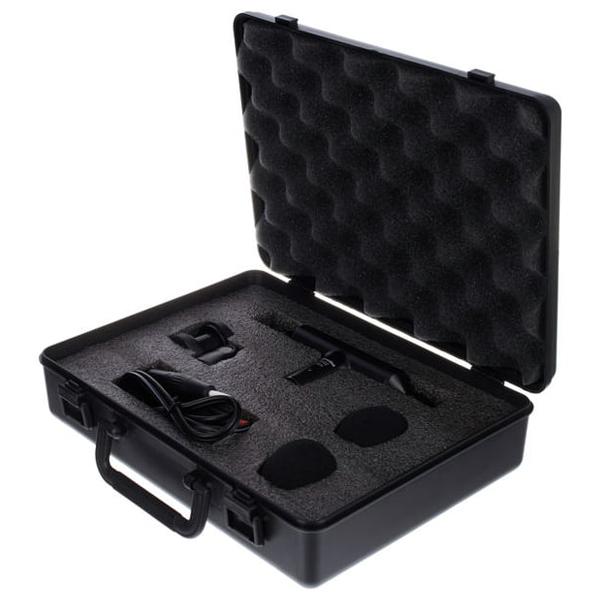

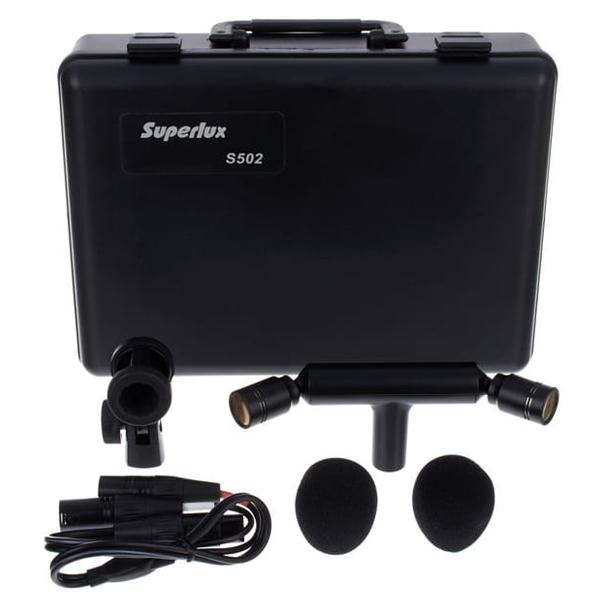

Features: 1/2 "diameter gold-plated 3 μm ultra-thin diaphragm head ORTF standard fixed structure Durable metal body Balanced stereo output Best stereo sound field Recommended Applications: Classical music recording Exterior team recording Recording studio Drum recording Specifications: Ondo: true condenser, Ø1 / 2 "(12.7 mm ), paired sound head Directivity: Heart Frequency response: 40 ~ 20,000 Hz Sensitivity: -36 dBV / PA (15.8 mV) Impedance: 200 is [Omega] Minimum Load: 1,000 [Omega] SNR Ratio: 76 dB Equivalent Noise SPL: 18 dB (A Weighted by IEC / DIN651) Maximum SPL: 135 dB (Harmonic Distortion ≦ 1% 1000Hz) Dynamic Range: 117 dB Power Requirements: 48V DC, 4.5 mA Surface coating: Black Connector: XLR5M Pin: left channel 2/3 feet; right channel 4/5 feet; 2/4 feet connected to the "+" terminal signal; drape & ground terminal 1 foot size: head Ø22 5mm (Ø0.89 ") Width 184.5mm, Height 66.8mm (Width 7.26", Height 2.63 ") Net Weight: 245 g (8.6 oz) Packing: A3 Handbag.
