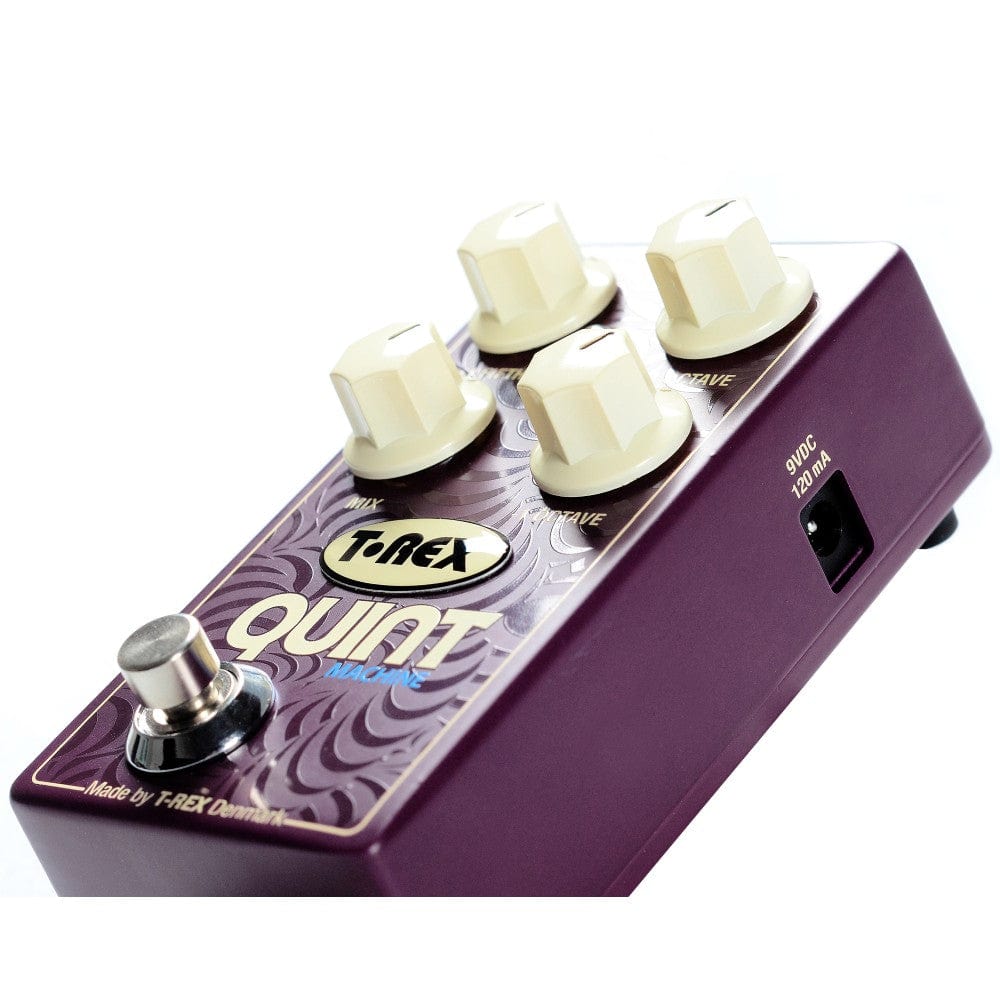

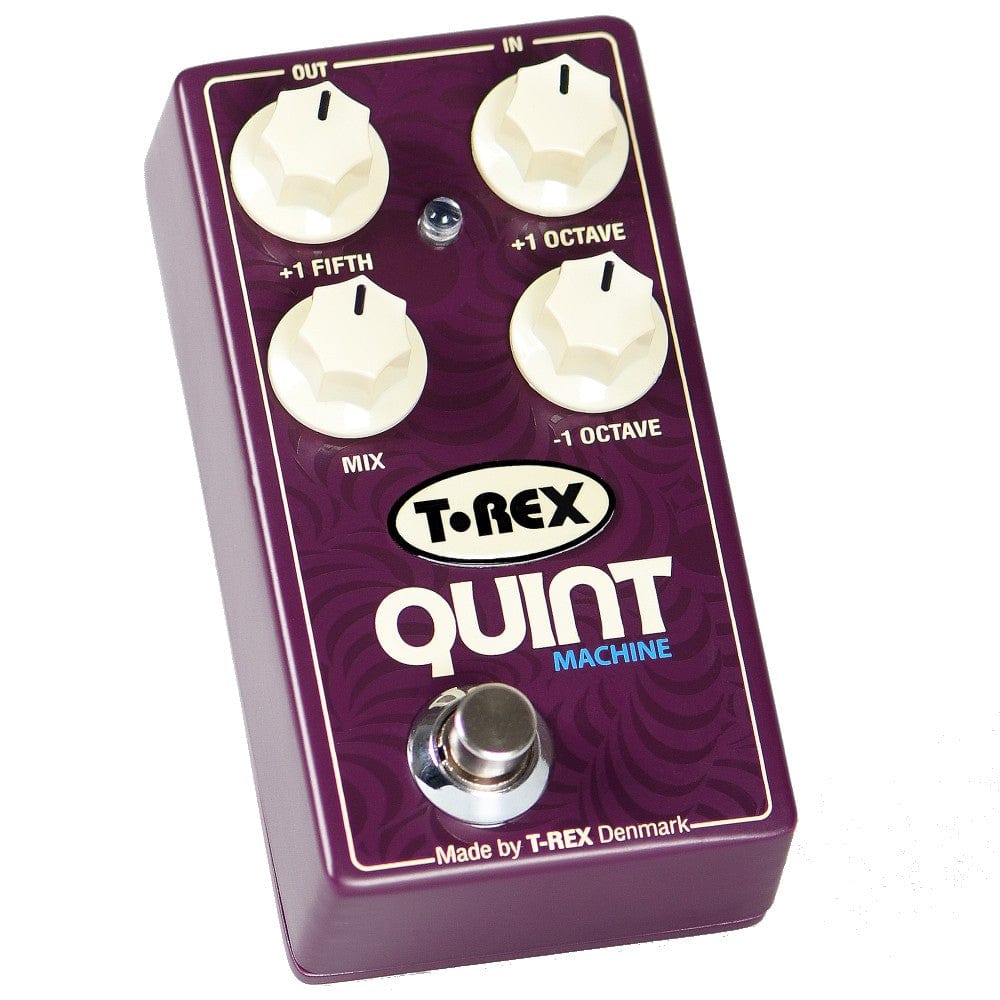

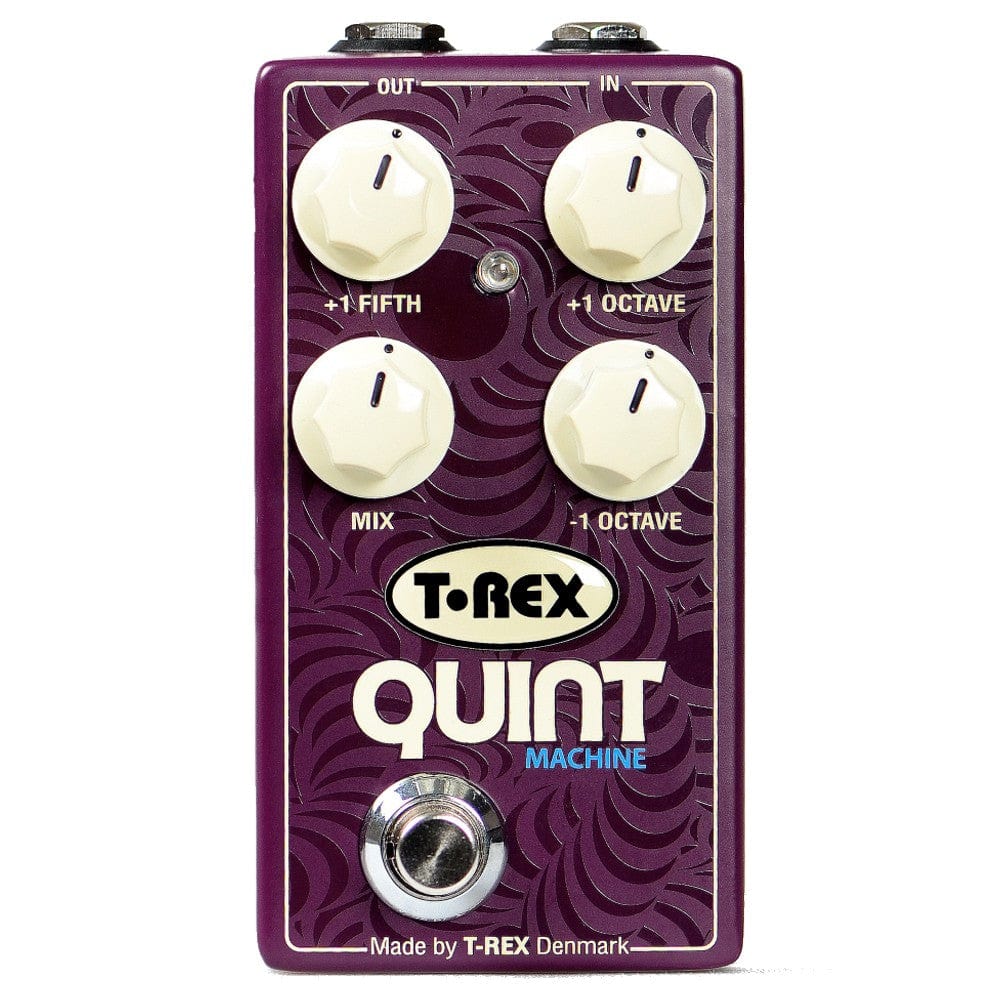

Turn your guitar into so much more, with individually adjustable octave up, octave down and 5th up enhancement. Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. T-Rex has built the QUINT MACHINE to give you more, and it will keep you discovering new sounds for years.
T-Rex Quint-Machine Features:
Octave up, octave down, 5th up
Individual volume controls, plus master mix
Ultra-fast polyphonic tracking
Replicate organ, synth or 12-string sound.
T-Rex Quint-Machine Specifications:
Input impedance @ 1KHz: Higher than 1M Ohm
Output impedance @ 1KHZ: Lower than 1K Ohm
Power supply: 9V DC (T-Rex FuelTank)
Minimum power supply voltage: 8V DC
Maximum power supply voltage: 12.5V DC
Current draw @ 9V DC: 145 mA
Maximum input signal Vp/p: 3Vp/p
Battery type: 9V battery 6F22
Battery life: 30 - 60 min.

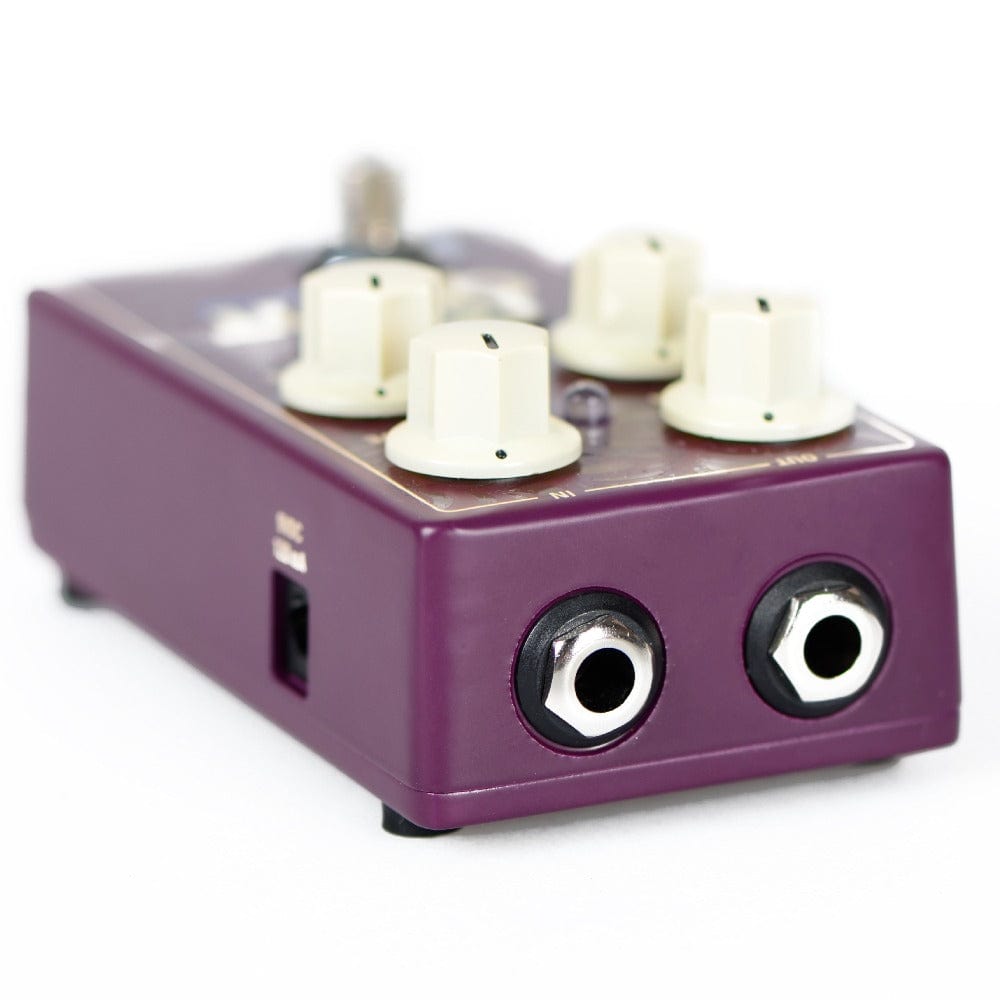

External connectors: Input Jack, Output Jack, 9V DC Jack
