Tascam LM-8ST Analog Mixer

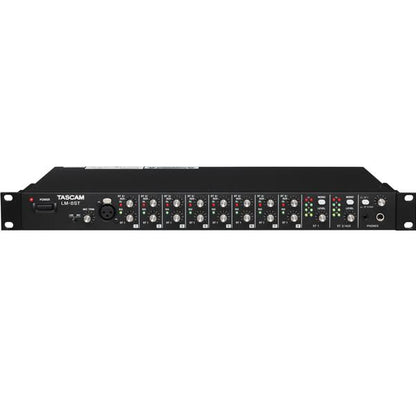

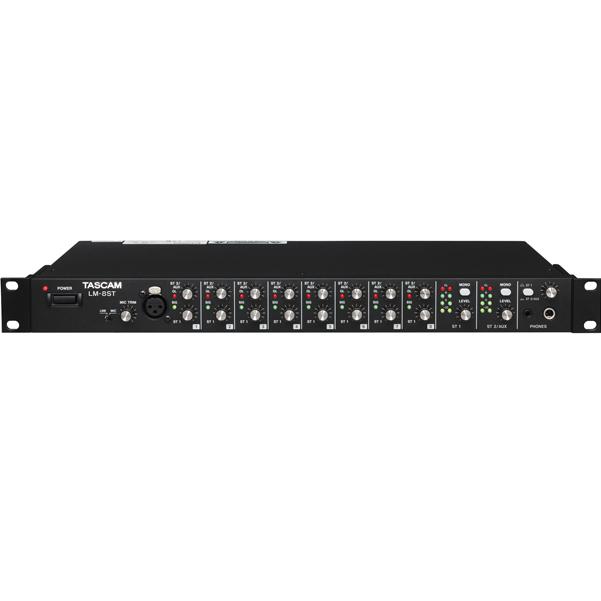

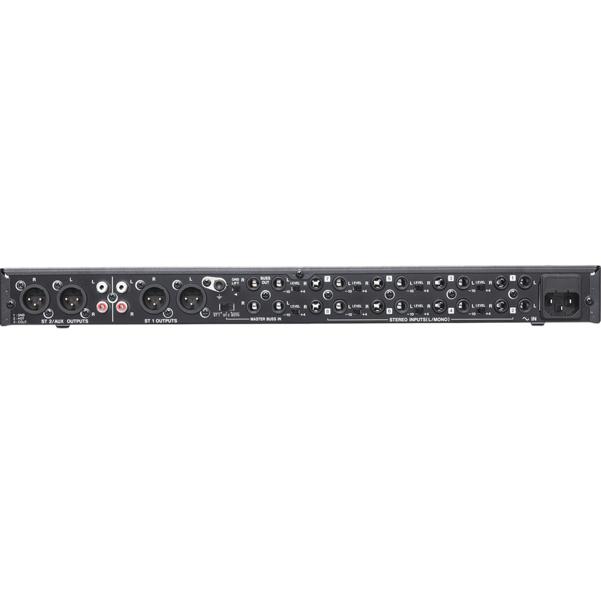

Tascam LM-8ST Analog Mixer Overview: The TASCAM LM-8ST is a 1-space rackmountable line mixer for installation, studio submixing, keyboardists or anyone looking for a great-sounding mix Eight pairs of balanced 1/4" TRS inputs - switchable from +4 or -10dB - can be bussed to a pair of XLR balanced outputs, labeled ST1 and ST2/AUX.

Pre or post-fader bussing is available for the alternate buss, and master output level controls and metering keep signals under control A microphone input is also provided for announcements or performance.

Packed with high-quality audio components, the TASCAM LM-8ST is perfect for any live performance or installation Features: \n \n 8 stereo channel / 4-buss line mixer \n (8) stereo 1/4" TRS balanced inputs with -10/+4dB switch 1U rack mountable Mic input with trim control on front panel 2-segment LED meter per channel ST1 and ST2/AUX level control per channel ST1 and ST2/AUX master level controls Each channel switchable to ST2 (pre fader) or AUX (post) output 1/4" and 1/8" stereo headphone outputs XLR balanced ouptuts for ST1 and ST2/AUX Stereo balanced buss output/input for cascade Ground lift switch and terminal Applications: Boardroom Conference room Health club Restaurant House of worship Keyboard mixer Effects return submixer One-man performance stage mixer Specifications: Audio inputs and outputs Microphone input Connector: XLR-3-31 (pin 2 hot) Input impedance: 2.4kΩ Nominal input level: -58 dBu (1 mV) – 12dBu (195 mV) Maximum input level: +10 dBu (2.45 Vrms) Stereo Inputs Connectors: 1/4” TRS balanced phono jack Input impedance: 16kΩ Nominal input level: +4 dBu (1.23 Vrms) Maximum input level: +24 dBu (12.3 Vrms) Master Buss Input Connectors: 1/4” TRS balanced phono jack Input impedance: 16kΩ Nominal input level: +4 dBu (1.23 Vrms) Maximum input level: +24 dBu (12.3 Vrms) ST1 and ST2 / Aux Outputs Connector: XLR-3-31 (pin 2 hot) Input impedance: 94Ω Nominal output level: +4 dBu (1.23 Vrms) Maximum output level: +24 dBu (12.3 Vrms) Connector: RCA pin jacks Input impedance: 200Ω Nominal output level: -10 dBV (0.3 Vrms) Maximum output level: +10 dBV (3.16 Vrms) Buss Output Connectors: 1/4” TRS balanced phono jack Output impedance: 94Ω Nominal output level: +4 dBu (1.23 Vrms) Maximum output level: +24 dBu (12.3 Vrms) Phones Output Connectors: 1/4” TRS stereo phono jack and 3.5mm (1/8”) stereo mini jack Maximum output level: 250mW + 250mW (32Ω) Audio performance Frequency response: 20 Hz–50 kHz ±3 dB (Phones outputs) 10 Hz–100 kHz, ±3 dB (Each Buss output) S/N ratio: 80 dB or more (Phones outputs, AWTD, 20kHz LPF) 80 dB or more (Each Buss output, A-WTD, 20kHz LPF) THD: 0.07% or less (Phones outputs,100mW+100mW (32Ω), 20Hz HPF and 20kHz LPF 0.03% or less (Each Buss output, 20Hz HPFand 20kHz LPF) Channel separation: 50 dB or more (Phones outputs,within a channel, A-WTD, 20kHz LPF,1kHz nominal input, 32Ω termination) 70dB or more (Each Buss output, A-WTD, 20kHz LPF, 1kHz nominal input, 600Ω termination) Crosstalk: 65dB or more (Each Buss output, AWTD, 20kHz LPF, 1kHz nominal input, 600Ω termination) General / Power supply AC: 120-240V, 50-60 Hz Power consumption: 15 W Dimensions (W x H x D): 19” x 1.73” x 11” (482 x 44 x 280mm) Weight: 8.4 lbs.

(3.8 kg) Made in China.
