Tascam TM-180 Studio Condenser Microphone

TM-180 OVERVIEW In recording, microphone plays an important role, that is, converting the pneumatic vibration that turns the sound into electric signals Of course, a preamplifier that amplifies the microphone signals, an AD converter that converts the sound into digital signals, and the DAW software that shapes the sound.

All these gears are important after the recording stage However, these gears work with the sound which has already been converted by the microphone.

This means, the quality of a microphone detemine the sound quality of the entire song To easily acquire high-precision sound in a home recording environment, why not starting from adding a condenser microphone in your recording gears? The condenser microphone has a different structure from the dynamic microphone which can be easily seen everywhere.

In general, the condenser mic has high-precision, subtle sound quality Types of "large diaphragm" microphones , which have a large diaphragm that converts the sound to an electric signal, especially it has a unique tone that is suitable for lead vocal recordings.

TM-180 is the standard model in the TASCAM microphone series that have been tested with the TASCAM products, specialized in the bright sound quality In addition to this, the product includes a professional-use suspension to avoid noise mixing due to the microphone vibration during recording.

Vocal Recording The vocal recording can be a typical application for a large-diaphragm condenser microphone The US-2x2 incorporates Ultra-HDDA microphone preamplifier which boasts a great EIN performance of -125dBu.

This means you can record a vocal track by US-2x2 with an extremely low noise level even when you are not singing while solo part is playing Please use TM-AG1 (optional) as a dedicated pop filter.

When the room resonance does not work at home, use TM-AR1, the acoustic control filter that gives you a dry, processable sound quality Acoustic Guitar Recording A large diaphragm condenser microphone is also suitable for an acoustic guitar.

When recording an acoustic guitar, the multi-mic recording can be worked out very well We recommand the setup with a TM-180 as the main mic, and TM-80s as backup mics for adding ambient sound.

For the multi-mic recording, US-4x4 is recommanded It could connect with four condenser microphones simultaneously.

Other than the acoustic guitar recording, when you want to add acoustic guitar to other recordings, the TM-AR1, TASCAM acoustic control filter is definitely essential when recording with the TM-180 It adds the classic dry sound to your recording.

Wind Instrument Recording A large diaphragm condenser microphone works great with saxophone or trumpet solo recordings The recommended setup is no different than the vocal recordings.

If you wish to record with easy settings, we recommand the iXR, TASCAM portable audio interface and your iPad to start your recordings with the TM-180 In addition, iXR has the Ultra-HDDA microphone preamplifier with extreme low noise level which is equivalent to the US-2x2.

Easily gets a precise, high-definition sound quality from a condenser microphone TM-180 is a condenser-type microphone, which is quite different from the dynamic microphone which usually being used in live performances The diaphragm operates due to the pneumatic vibration.

Inside of a dynamic microphone, the voice coil operates with the diaphragm, which increases the weight of the entire part On the other hand, the condenser microphone incorporates a diaphragm in the either side of the electrode in an electrical part referred to as condenser, realizing a lightweight structure.

This allows excellent follow-up performance, greatly contributing to high-precision sound Thus the mechanism to convert into electrical signals is completely different between the two: the dynamic microphones are powered by electromagnetic induction to obtain electrical signals, whereas the condenser microphones take out the potential difference between the condenser electrodes as a signal.

To give the condenser the electric potential difference, power supply is required A large-sized Φ34 diaphragm contains suitable frequency response that highlights the lead part Condenser microphones are largely divided into two categories according to the size of diaphragm: large diaphragm types, and small diaphragm types.

While the small diaphragm types have flat frequency response and tolerance to high sound pressure, the large diaphragm types allows high sensitivity, low noise, and distinctive sounds This is why the large diaphragm types are relatively popular for vocal recordings.

TM-180 applies a large size, 34mm pure gold-coated diaphragm, and it is often characterized by its bright sounds The frequency response of TM-180 shows a distinct curve at 1kHz or higher, and have a loose peak especially around 9kHz.

By these characteristics, TM-180 acquires a clear outline in the recording of lead instruments as vocal or sax, for a strong, standout sound -10dB switch and a low cut filter switch, that smooths out the harshness from instruments Low cut filter switch that enables to eliminate the background noise or any low frequencies on some particular instruments that you want to get rid of.

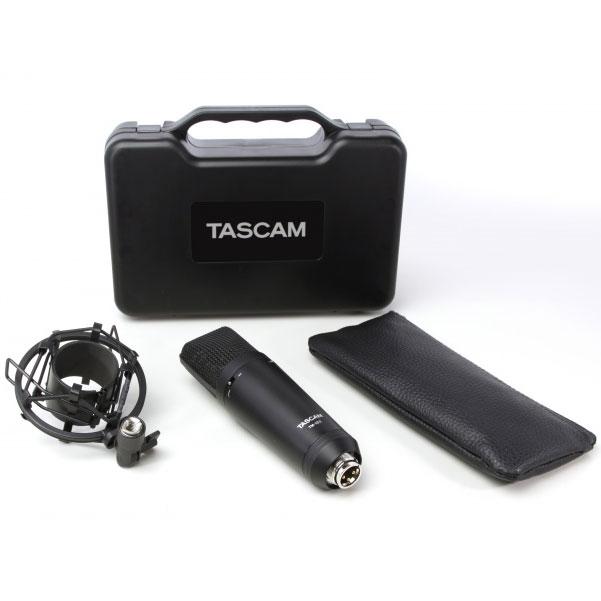

For recordings like percussions or other instruments with high sound pressure, by turning the equipped-10dB switch on, it prevents sound distortion from an instrument that has high sound pressure during the recording Comes with a suspension shockmount, a soft mic case, and a hard case A suspension shockmount is included.

A noise due to vibration during recording can be avoided as well In addition, a soft mic case and a hard case is included that prevents damage while carrying.

Operation and sound quality verified with TASCAM products The microphone has been tested with the TASCAM audio interfaces as well as PORTASTUDIO for their functionality and sound quality The audio samples of TM-180 with a few TASCAM products are available on our web page.

Of course, the microphones can be used with any acoustic equipment that complies with a condenser microphone Features at-a-glance Condenser-type microphone Cardioid (Unidirectional) 34-mm aluminum diaphragm Operating with the phantom power of 48V Includes a suspension shockmount Specifications: Model : Condenser Directivity : Cardioid Frequency response : 20Hz - 20,000Hz Output impedance : 200Ω Load impedance : >1kΩ Sensitivity : -35dB +/-2dB (0dB=1V/Pa at 1kHz) Max.

SPL : 130dB S/N ratio : 79dB Connector : 3 pin XLR, Male Phantom power : 48V dimensions : 50(W) × 190(H) × 50(D) mm Weight : 420g (Microphone body only) Accessory : Suspension shockmount (Screw dia 5/8 inch), hard case, Soft case, 5/8 to 3/8 conversion adapter Made in China.
