TC Helicon, Vocal Processor, Play Acoustic 996364005


EMI starts from Rs. 1,662.92. Click here for options.

Shop Brand : TC Helicon
Shop All: Voice Processors
SKU : TCHELICON996364005

Rated 5.0/5 based on 3 customer reviews
TC Helicon, Vocal Processor, Play Acoustic 996364005 has a rating of 5.0 stars based on 3 reviews.
TC Helicon, Vocal Processor, Play Acoustic 996364005

The natural companion for any modern singer-songwriter, Play Acoustic combines all the things you need to make a live acoustic performance shine; lavish vocal sounds, perfect backing harmonies, best-selling guitar FX, and unique processing that makes your six-string sing – in perfect harmony with your voice.
  • Professional Vocal Effects and Tone with natural sounding Vocal Harmonies guided by your guitar
  • Guitar FX styles from TC Electronic’s Hall of Fame Reverb and Corona Chorus pedals
  • BodyRez™ filtering and onboard EQ and DI for impeccable acoustic guitar tone
  • Guitar feedback-proofing with notch filter and phase controls
  • Separate vocal and guitar outputs, or a stereo mix of both

Specification:

Control

  • 100+ Song & Artist Inspired Presets, Memory for 500
  • Simple Vocal & Guitar FX Editing via Direct Access Buttons
  • Direct Access to Favorite, Genre, Mix and Setup Menus
  • Preset Up/Down and HIT Footswitch
  • Graphics LCD Display
  • Bump-Protected Mic Level
  • Dual-Colour Backlit Buttons

Design

Size

  • Height: 1.8 inches (45 mm)
  • Width: 7.9 inches (200 mm)
  • Depth: 6.1 inches (156 mm)

Weight

  • Weight: 2.2 lb. (1 kg)

Construction

  • Dual die-cast clamshell design
  • Acrylic Lens
  • Punch-cut Metal connection panel
  • Rubberized footings
  • Backlit Graphic LCD Display

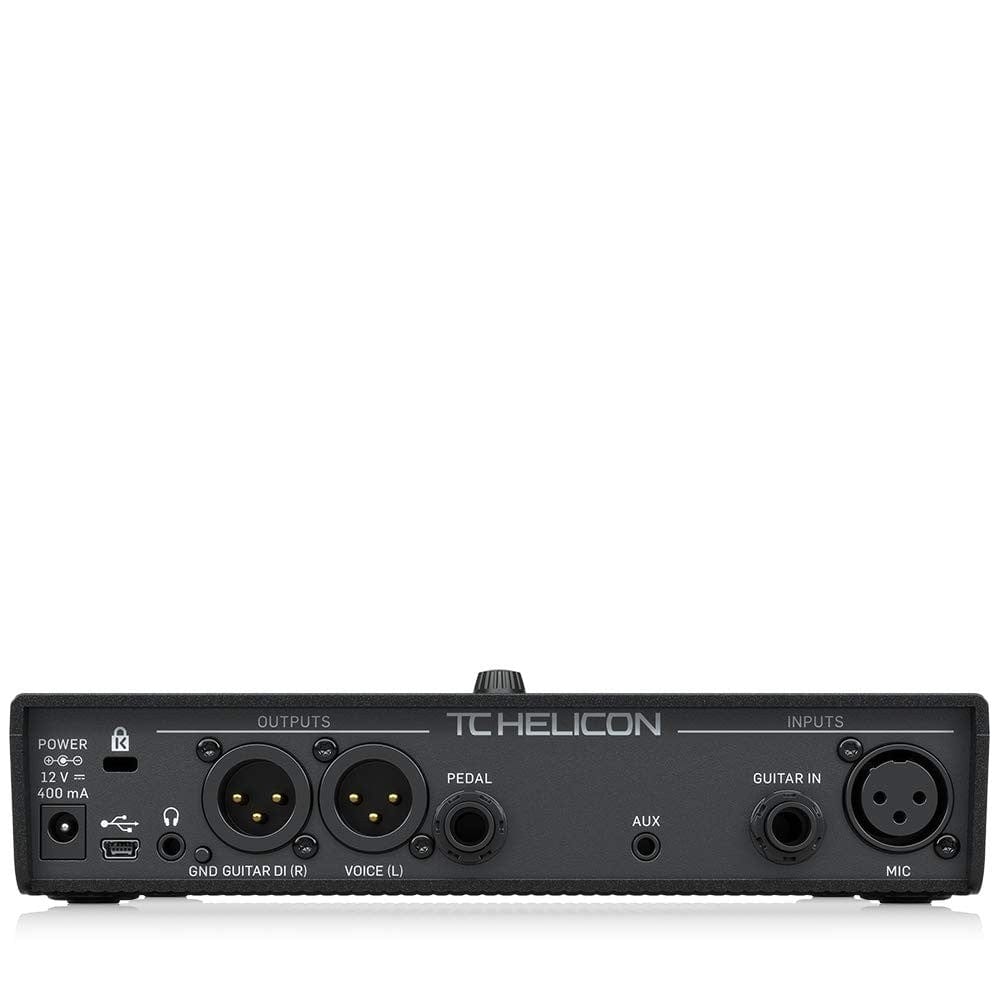

Connections

Analog Inputs

  • Connectors: Mic.: balanced XLR, Guitar: unbalanced 1/4″ TS, Aux: 1/8″ stereo mini jack
  • Impedance: Balanced/Unbalanced: Mic.: 2.14/1.07 kOhm
  • Mic Input Level @ 0 dBFS: -42dBu to +13dBu
  • EIN @ Max Mic Gain Rg = 150 Ohm : -127 dBu
  • Mic SNR: > 104 dB
  • Phantom Power: +48V (on/off via Setup menu)
  • Guitar Input impedance: 1 MOhm
  • Guitar Input Level @ 0 dBFS: 12 dBu
  • Guitar Input SNR: > 115dB
  • Aux Input Level @ 0dBu: +2dBu
  • A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted

Analog Outputs

  • D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
  • Connectors, balanced: XLR
  • Output Impedance Balanced/ Unbalanced: 80/40 Ohm
  • XLR Output 0dBFS: +2 dBu
  • Dynamic Range: > 109 dB, 20 Hz to 20 kHz
  • Frequency Response: +0.30/-0 dB, 20 Hz to 20 kHz
  • Headphone Out: 1/8″ Mini stereo jack

Control

  • USB: USB-B (Preset Management, Firmware Updates and audio I/O)
  • Pedal: 1/4″ TRS phone jack
  • Mic Control using TC-Helicon MP-75 Microphone or Sennheiser e 835 fx mic

Details

Power

  • External Power Supply. Mains Voltage Input: 100 to 240 VAC, 50 to 60 Hz (auto-select)
  • 12V DC 0.4A max output
  • Power Consumption: < 14 W

Safety

  • EMC – Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
  • Safety – certified to: IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

Operating Requirements

  • Operating Temperature: 32° F to 122° F (0° C to 50° C)
  • Storage Temperature: -22° F to 167° F (-30° C to 70° C)
  • Humidity: Max. 90 % non-condensing
