Yamaha DA824 D/A CONVERTER 8 channel

A rack-mounted, 8 channel, 24 bit converter, with balanced XLR and 6.35mm jack input connectors, word clock and RS422 serial ports. Each channel also has an unbalanced insert jack. A single slot is provided for Yamaha mini-YGDAI cards (which must be ordered separately) giving a variety of output formats. The front panel has mains switch, individual channel selection, status and level indication, and assignable rotary gain control. 48V phantom power is also provided.

Internal sample rate is either 44.1kHz or 48kHz with external sample rates of 39.69kHz-50.88kHz accepted. Typical dynamic range of 110dB is achieved with 128x over-sampling.

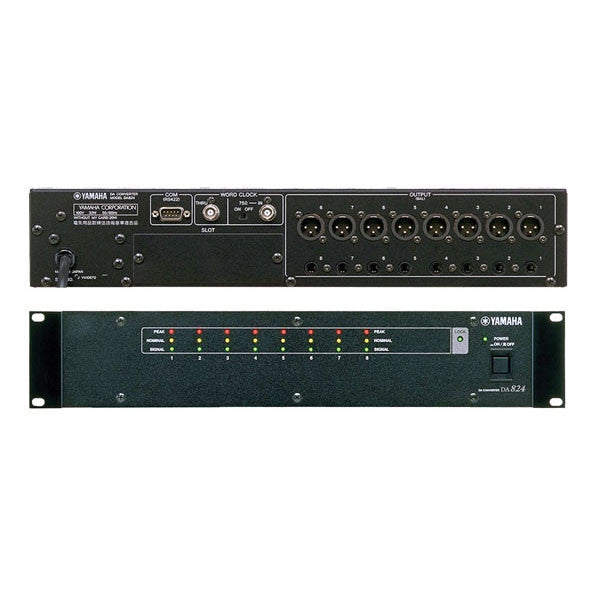

DA824 Digital to Analogue Converter

A rack-mounted, 8 channel, 24 bit converter with balanced XLR and 6.35mm jack output connectors, word clock and RS422 serial ports. A single slot is provided for Yamaha mini-YGDAI cards (which must be ordered separately) giving a variety of input formats. The front panel has individual channel status and level indication. Maximum output level can be set to +4, 15, +18 or +24dBu

Sample rates of 39.69kHz-50.88kHz are accepted. Typical dynamic range of 110dB is achieved with 128 x over-sampling.

Mini-YGDAI cards

Plug-in cards for use with Yamaha equipment to provide a variety of input and output options.

MY8-AE

Provides eight channels of input and output in AES/EBU format on a D-sub 25-way female connector.

MY8-AT

Provides eight channels of input and output in ADAT format on two optical connectors.

MY8-TD

Provides eight channels of input and output in Tascam TDIF format on a D-sub 25-way female connector.
