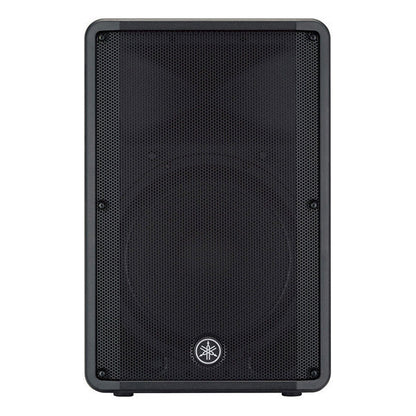

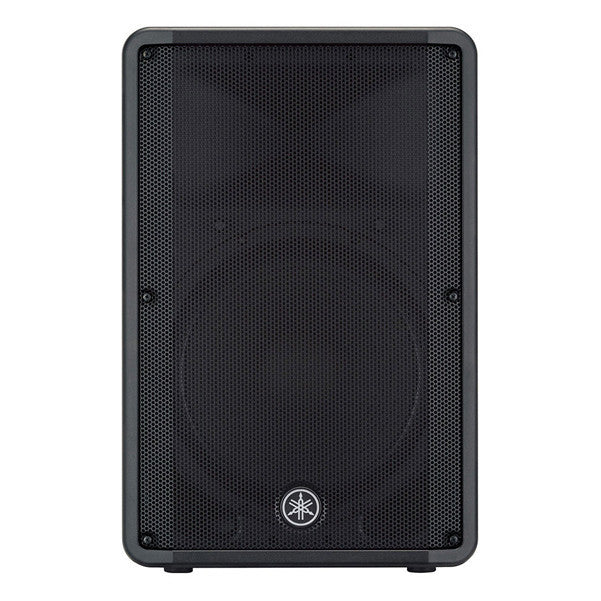

Yamaha DBR15 15inch 2-way Powered Loudspeaker

Yamaha DBR15 15" 2-way Powered Loudspeaker Overview: The DBR15 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.

High Efficiency 1000W Class-D Amplifiers The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics Custom Designed Transducer The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate mid-range and high frequencies.

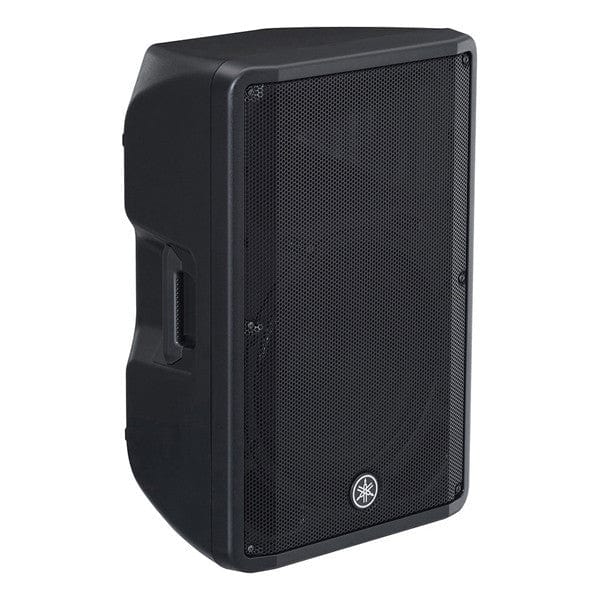

A Rugged, Highly Portable Cabinet DBR series speakers feature a compact, lightweight and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers The sleek steel grill bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

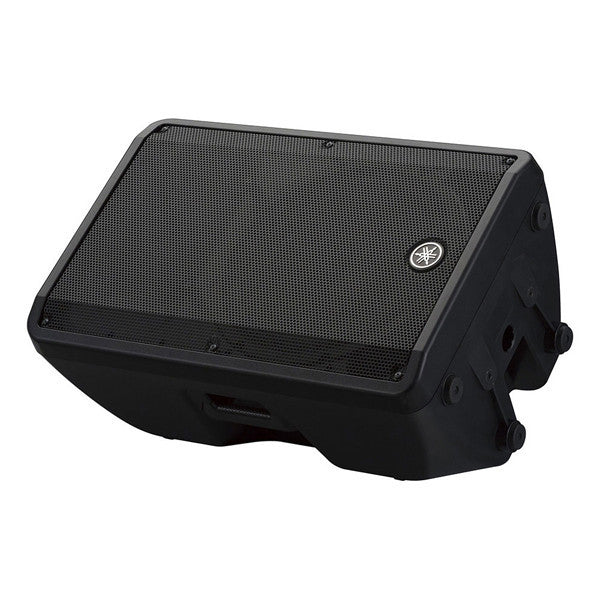

Smart Enclosure Design for Floor Monitoring DBR Series feature an optimized 50 degree wedge angle for floor monitoring In addition the DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

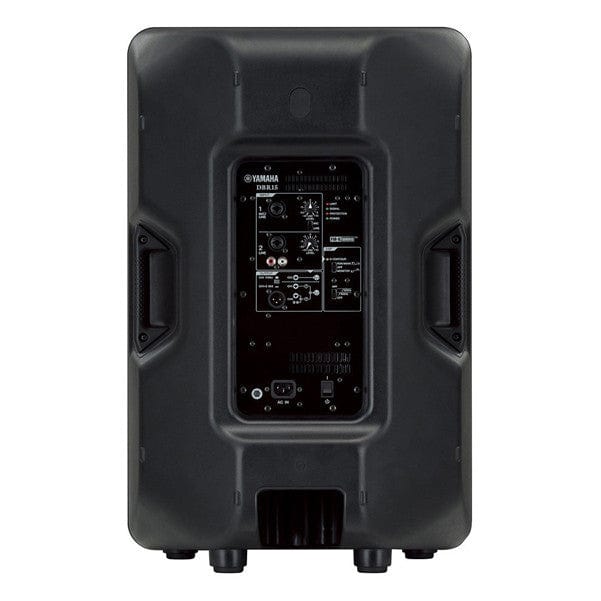

Easy to Use Onboard 2-Channel Mixer DBR Series speakers have two input channels CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals.

CH2 offers two input options, a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for inout from CD players or other stereo line-level sources The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Rigging points for Installation Applications DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts (Speaker brackets and eye-bolts are not included).

Functional Speaker Cover Yamaha's newly designed functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road (Functional Speaker Cover is not included.) Specifications: Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type Frequency range (-10dB): 55Hz – 20kHz Nominal coverage: H: 90°, V: 60° Components: LF: Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite, HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter) Output power: Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) Maximum output level (1m; on axis): 132dB SPL I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF Heat dissipation: Fan cooling, 4 speeds Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz Power consumption: 74W(1/8 Power Consumption), 18W(Idle) Cabinet material: Plastic Finish: Black Handle: Side x 2 Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) Pole socket: 35mm (Bottom x 1) Dimensions: W X H X D: 455mm (17.9") X 700mm (27.6") X 378mm (14.9") Net weight: 19.3 kg (42.6 lbs).
