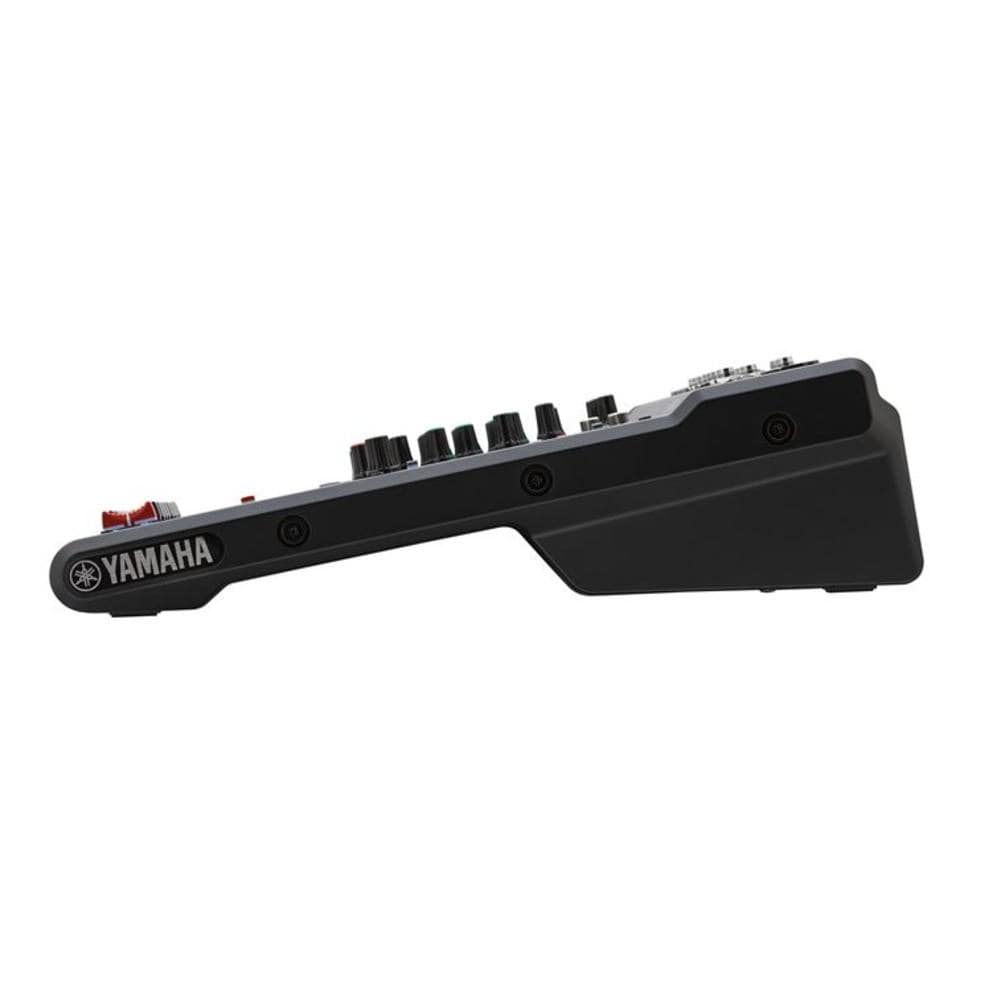

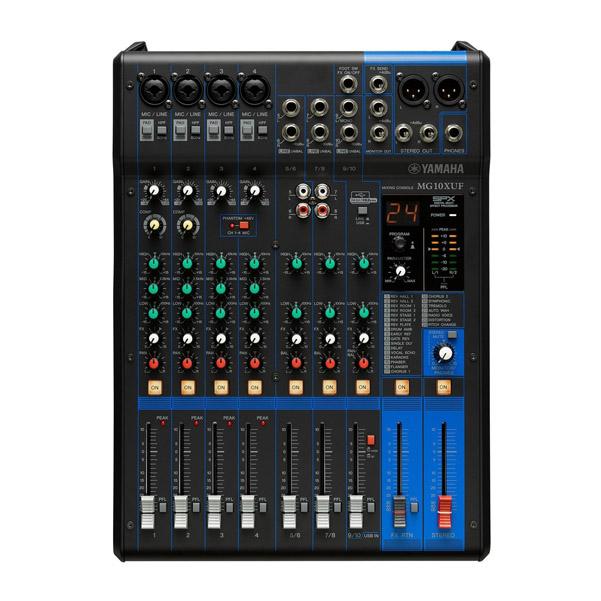

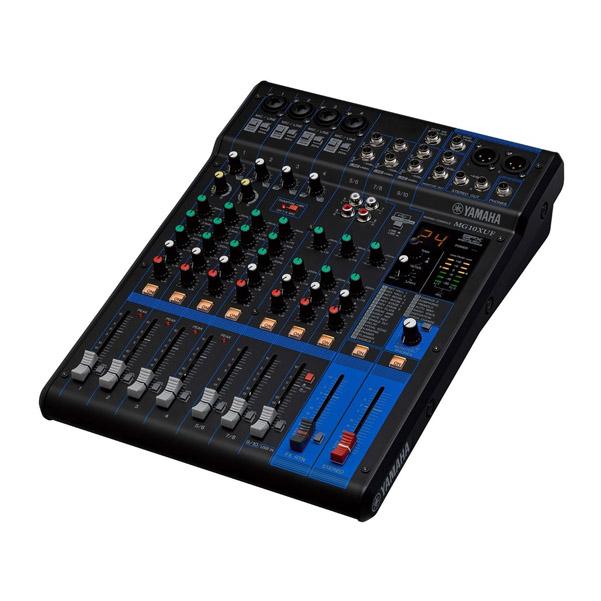

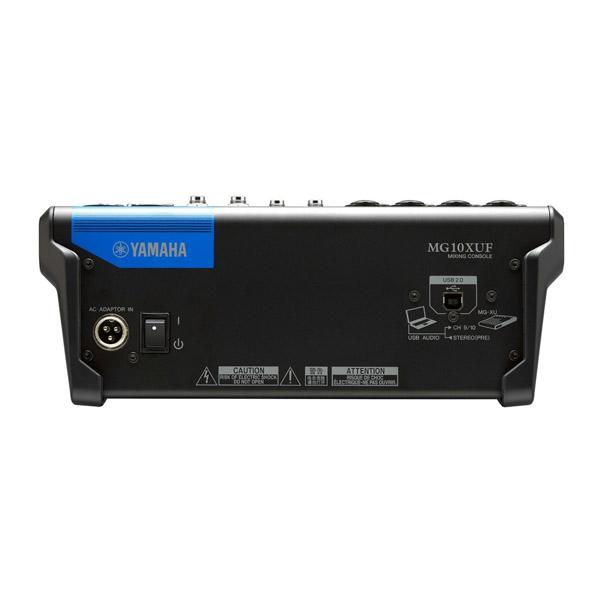

Yamaha MG10XUF 10 Channel Analog Mixer

Write a review
| Ask a question
SKU : YAM-MG10XUF
Sold out
Rs. 21,800
Rs. 21,114

   Free Delivery available on this product.

Buy Bajaao Premium Warranty- With Accidental Damage Cover & Free Pickup and Return T&C
Seen It For Less? Learn More



Overview:

Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.


Features:

  • D-PRE (Discrete Class-A Mic Preamps)
  • High Quality Sound Op-amp
  • Switchable Phantom Power & PAD Switch
  • 1-knob Compressors
  • EQ and High-pass Filters
  • AUX / Effect Sends / Group
  • A variety of input / output connectors
  • LED level metering
  • Built-in SPX Digital Effects
  • Metal Chassis
  • Internal Universal Power Supply
  • Rack Mount Kit Included
  • XLR connector
  • 24-bit /192kHz 2-in/2-out USB Audio Interface Function
  • MG Rec & Play
  • Cubase AI
  • Cubasis LE



Specifications:

Input Channels:

  • Mono: 4 x Mic/Line
  • Stereo: 3 x Line

Output Channels:

  • Stereo Out: 2
  • Monitor Out: 1
  • Headphone Output: 1
  • AUX Send: 1

Bus:

  • 1 x Stereo
  • 1 x Aux (FX)

On-Board Effects: 24 x SPX Algorithms Effects
Phantom Power: +48V
USB Interface: USB 2.0, 24-Bit/192kHz
PAD: 26dB (Mono)
HPF: 80Hz, 12dB/oct (Mono)
Compressor:

  • Threshold: +22dBu to -8dBu
  • Ratio: 1:1 to 4:1
  • Output Level: 0dB to 7dB
  • Attack Time: Approx. 25msec
  • Release Time: Approx. 300msec

EQ:

  • High: 10kHz Shelving (+15dB/-15dB Gain)
  • Mid: 2.5kHz Peaking (+15dB/-15dB Gain)
  • Low: 100Hz Shelving (+15dB/-15dB Gain)

Peak LED: LED Turns On When Post EQ Signal Reaches 3dB Below Clipping
Level Metre: 2 x 7-Segment LED Metre (Peak, +10dB, +6dB, 0dB, -6dB, -10dB, -20dB)
Crosstalk: -83 dB
Power Requirements: PA-10 (AC 38 VCT, 0.62A, Cable Length = 3.6m)
Power Consumption: 22.9W
Dimensions:

  • Height: 71mm
  • Width: 244mm
  • Depth: 294mm

Weight: 2.1kg
