Yamaha MLA8 8 Ch Mic/Line Preamp Head Amplifier

The MLA8 is an eight-channel head amplifier inheriting top-performance head amp technology from Yamaha's acclaimed DM2000 digital mixing console. In a compact 1U unit the MLA8 features a 26 dB pad, adjustable 44 dB gain trim, an 80 Hz high-pass filter, and a phantom-power switch on each channel. Both Euroblock terminals and a D-sub 25-pin connector are provided on the rear panel for output connections, making the MLA8 a perfect match for Yamaha digital mixers.

An Eight-Channel Head Amplifier that Inherits Acclaimed DM2000 Head-Amp Technology

Having earned the acclaim of professional engineers at live-sound venues, music production studios and other areas, the head-amp technology from Yamaha's top-of-the-line DM2000 Digital Production Console was selected for use in the MLA8. This head amp design achieves stunning audio quality, reproducing the original sound with breathtaking clarity.

Practical Features in a Compact 1U Package

In a space-saving 1U design, the MLA8 front panel offers a 26 dB pad, adjustable 44 dB gain trim, an 80 Hz high-pass filter, and a phantom-power switch on each channel. Used in conjunction with Yamaha digital mixers, DME64N/24N digital mixing engines, or other state-of-the-art digital audio gear, the MLA8 offers simple, straightforward signal control that can provide invaluable complementary functionality for a wide range of applications.

Convenient Color-coded Control Interface

The control colors for Yamaha mixers are based on a set of common rules. Accordingly, the MLA8 uses green for signal indicators and high-pass filters, red for peak indicators, and gray for pads. In systems where the MLA8 will be combined with other Yamaha products, this provides an intuitive, efficient working environment.

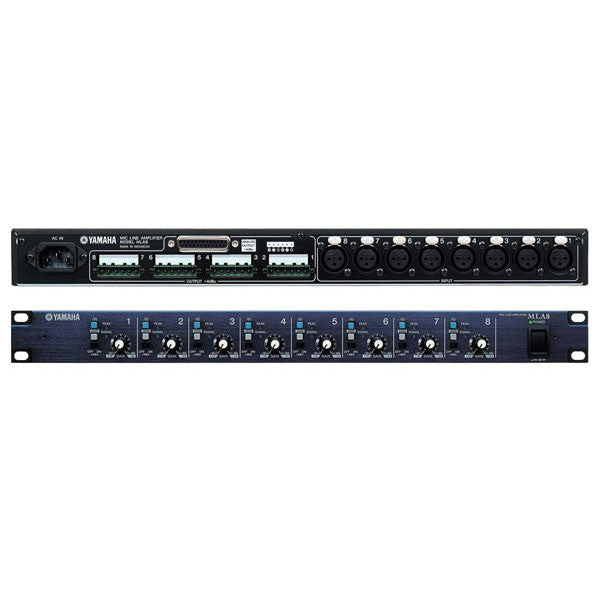

Euroblock and D-sub 25-pin Connectors

XLR connectors are provided for the audio input, while output connections can be made via either a D-sub 25-pin connector or Euroblock connectors. The latter can be an advantage in installations. The D-sub 25-pin connector is compatible with the MY8-AD96 8-channel Mini-YGDAI A/D card, providing convenient connectivity with Yamaha digital mixers.

Yamaha MLA8 Specifications:

  • Total harmonic distortion  Less than 0.1% (THD+N) : 20Hz to 20kHz @ +14dBu, 600ohms (Input GAIN = Max.)
  • Frequency response  0+0.5,-1dB : 20Hz to 20kHz @ +4dBu, 10kohms (Input GAIN = Max.)
  • Maximum voltage gain  64dB : CH INtoCH OUT
  • Channel PAD : 26dB
  • Channel gain : 44dB: Variable
  • Channel HPF : 80Hz, 12dB/oct
  • Phantom voltage : +48V DC:  Phantom voltage ON/OFF switch
  • Channel LED : SIGNAL(Green), PEAK(Red)
  • Dimensions : 480(W) x 44(H) x 375.5(D)
