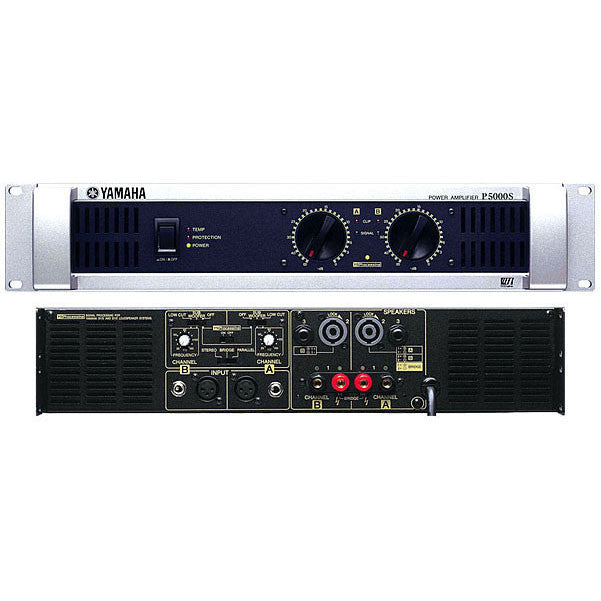

    Yamaha P5000S P-Series Power Amplifier

    The new P-Series amps are an ideal match to Yamaha's popular Club Series loudspeakers and deliver a robust amount of pro quality power in a wide range of configurations designed to suit most any need. To achieve this, they're designed with big power output, and equipped with YS (Yamaha Speaker) Processing to deliver a signal that is tuned to the needs of the Club Series loudspeakers. All models feature both XLR and 1/4-inch TRS inputs and Neutrik Speakon (tm), 1/4 in., and 5-way binding post outputs to make connections quick and easy. Other features include Yamaha's exclusive EEEngine technology which delivers high performance with exceptional efficiency, sweepable high and low pass filters for optimizing output to any loudspeakers, compact and durable 2U chassis, and variable speed cooling fans.

    Yamaha P5000S Features:

    • Pro-quality power in a wide range of configurations
    • Perfect tuned via YS processing for use with the popular Club Series speakers
    • Yamaha's exclusive EEEngine technology for high performance with exceptional efficiency
    • XLR and 1/4" TRS inputs
    • Neutrik Speakon, phone plug, and 5-way binding post outputs
    • Sweepable high- and low-pass filters
    • Variable-speed fan
    • Delivers 2 x 500W @ 8 ohms, 2 x 700W @ 4 ohms, and 1,400W @ 8 ohms bridged

    Yamaha P5000S Specifications:

    Output Power

    • 1kHz, THD+N=1% 8 Ohms Stereo: 525W + 525W
    • 1kHz, THD+N=1% 4 Ohms Stereo: 750W + 750W
    • 1kHz, THD+N=1% 8 Ohms Bridge: 1500W
    • 20Hz-20kHz, THD+N=1% 8 Ohms Stereo: 500W + 500W
    • 20Hz-20kHz, THD+N=1% 4 Ohms Stereo: 700W + 700W
    • 20Hz-20kHz, THD+N=1% 8 Ohms Bridge: 1400W
    • 1kHz, 20mS nonclip 2 Ohms Stereo: 1300W + 1300W
    • 1kHz, 20mS nonclip 4 Ohms Bridge: 2600W
    • Power Bandwidth (half power): 10Hz-40kHz (THD+N=0.5%)
    • THD+N (20Hz - 20kHz, half power): Maximum 0.1%
    • Intermodulation Distortion (60Hz: 7kHz, 4:1, half power: Maximum 0.1%
    • Frequency Response: 0dB, +0.5dB, - 1dB f=20Hz-50kHz
    • Channel Separation: Minimum 70dB 1kHz
    • Residual noise (Att. min.): Maximum 70dB
    • S/N Ratio: 103 dB
    • Damping Factor: 350 max.
    • Sensitivity @8 Ohms +6dB
    • Voltage Gain (Att. max): 32.1dB
    • Input Impedance: 30kOhms balanced; 15kOhms unbalanced

    Controls

    • Front Panel: POWER switch (push on/push off) attenuator (31position) x 2
    • Rear Panel:
    • MODE switch (STEREO/BRIDGE/PARALLEL)
    • FILTER switch (SUB WOOFER/LOW CUT/OFF) x 2
    • FREQ. CONTROL (25Hz-150Hz) x 2
    • YAMAHA SPEAKER PROCESSING switch (ON/OFF).
