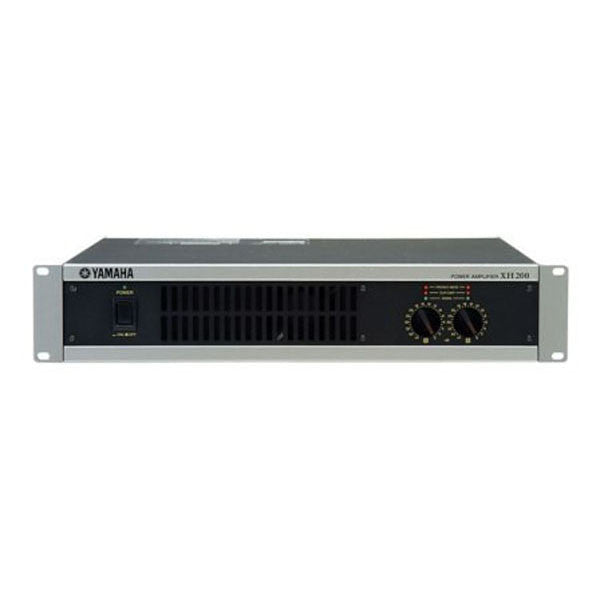

Yamaha XH200 Power Amplifier

The XH200 is the ideal distribution power amp for use with numerous high-impedance speakers in theatre, hall, and conference facility installations. In addition to being remarkably lightweight, the XH200 is a compact 2U size that will fit comfortably in just about any installation. This combination of high power output and small size has been realized through the use of an advanced switching power supply. The XH200 also features a monitor/remote connector that allows remote status monitoring and control from an external device.

Yamaha XH200 Features:

Two 200W Channels In a 2U Power Amp

The XH200 is a two-channel high-output power amp that can be switched between 70V and 100V line operation (200W x 2 channels into 24ohms-70V / 48ohms-100V). This high-impedance power amp is designed for installations in which multiple speakers are driven in parallel. A high-efficiency switching power supply means that the XH200 is significantly smaller and lighter than comparable amplifiers: it fits comfortably in a 2U rack space and weighs only 10 kg.

Monitor/Remote and Other Important Functions

A rear-panel MONITOR/REMOTE connector allows the unit to be controlled or monitored from a remote location. The front panel provides dB-calibrated detented attenuators for each channel, and a comprehensive range of protection circuitry and indicators ensures operational stability and safety under the widest possible range of conditions.

Euroblock Input/Output Connectors, and Barrier Strip Output Connectors

Euroblock input connectors and barrier-strip output connectors allow simple, secure input and output connection. High pass filters with switchable 40 Hz or 80 Hz roll-off provide an extra margin of system flexibility.

Yamaha XH200 Specifications:

  • Power Output Level 20Hz 20kHz THD+N=0.1% 8O 70V/channel RL=24. 200W x 2 4O 70V/channel RL=24. 200W x 2
  • 8 Ohms / BRIDGE 100V/channel RL=48. 200W x 2
  • 70V/BRIDGE RL=16 Ohms 100V/channel RL=48. 200W x 2
  • Sensitivity RL=8. Att.max
  • S/N Ratio 20Hz-20kHz(DIN AUDIO)
  • Idle Power Consumption 40W
  • 1/8 Power Consumption (4 Ohms) 250W
  • Power Bandwidth (Half power THD+N=0.5%) 10Hz – 40kHz
  • THD+N 20Hz 20kHz, half power 0.1%
  • Intermodulation Distortion 60Hz: 7kHz, 4:1, half power 0.1%
  • Frequency Response f=20Hz-20kHz -0.5dB, 0dB, 0dB 80Hz-20kHz
  • Channel Separation Half power RL=8 Ohms, 1kHz
  • ATT. Max input 600 Ohms shunt 60dB(24 Ohms)
  • Residual Noise 20Hz-20kHz (DIN AUDIO) –65dB
  • Damping Factor 8 Ohms, f=1kHz 100
  • Voltage Gain ATT. max 38dB(100V), 35dB(70V)
  • Maximum Input Voltage 22dB
  • Input Impedance 30 kOhms (Balance) 15 kOhms (Unbalance)
  • Controls Front panel POWER switch (push on/push off), attenuator (31position) x 2
  • Rear panel MODE switch (70V/100V) x 1
  • HPF switch (40Hz/80Hz 12dB/oct) x 1
  • Connectors Input euro-block (balance)/ch
  • Output Barrier strip/ch
  • DATA PORT D-sub15P, Monitor:Output Level/ch,Active/ch,
  • Model Detect Control:Mute/ch
  • Power AC inlet x 1
  • Indicators POWER x 1 (Green)
  • SIGNAL x 2(Green)
  • CLIP/LIMIT x 2 (Red)
  • PROTECT/MUTE x 2 (Red)
  • Load Protection POWER switch on/off mute, DC-fault output relay off
  • Amplifier Protection thermal (heatsink temp =90°C), VI limiter(RL = 16 Ohms)
  • Limiter Circuit clip limiting,THD = 1.0%
  • Cooling/Variable-speed fan stop-50C-variable-70C-Hi
  • Power Requirements UC: 120V / 60Hz, EU: 230V / 50Hz, A: 240V / 50Hz
  • Dimensions (W x H x D) 480 x 88 x 412.2 mm
  • (18-7/8" x 3-7/16" x 16-1/4").
