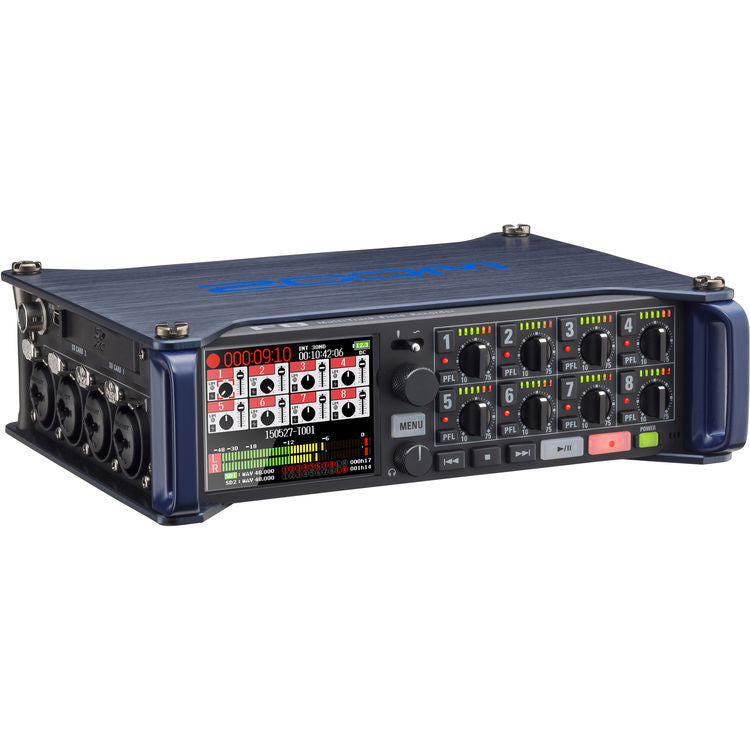

The Zoom F8 Multi-Track Field Recorder is designed for professional and enthusiast recording applications on set and in the field, including music, filmmaking, and electronics news gathering (ENG). Designed to be carried by a shoulder strap or in a bag, the unit features eight analog input channels with lockable XLR/TRS combo jacks that provide +75 dB maximum input gain, and support for +4 dB inputs with an EIN of -127 dBu or less. It can record up to 10 tracks simultaneously (channels 1-8 plus a stereo mix), or up to eight channels when recording at the A/D converter's maximum 24-bit 192 kHz resolution.
Alternatively, you can perform dual-channel recording of separate files at lower volume levels to ensure you have backup recordings to use when unexpected loud noises distort the primary recording. A newly designed limiter provides up to 10 dB of headroom. The unit supports SMPTE time code input and output. Included in the outputs is a powerful 100 mW + 100 mW headphone jacks as well as the MAIN OUT 1/2 and SUB OUT 1/2 jacks so you can send the audio signal to a video camera or other device while monitoring with headphones.
The unit's internal mixing capability enables flexible routing, and the inclusion of individually selectable +24V/+48V phantom power ensures you can use your favorite condenser microphones.
Power to the recorder can be supplied in one of three ways: via AA batteries, an AC adapter, or a 9 to 16V external DC power supply. Two SDXC card slots can be used simultaneously for recording even longer sessions, and can also be used as card readers when connected to a computer via USB.
When operating via USB, the unit can be used in a 2-in/2-out configuration as well as an 8-in/4-out audio interface (driver required for windows). A built-in slate mic allows you to make voice memos and the unit's slate tone can be used to confirm specific levels.
Among the most innovative features of the recorder is support for the company's interchangeable microphone capsules.FEATURES:
- 8x XLR/TRS Combo Jacks with +75 dB Gain
- Up to 192 kHz/ 24-Bit PCM Recording
- Record Up to 10 Tracks Simultaneously
- Dual Channel Recordings at Two Levels
- Works with Zoom Microphone Capsules
- 2x SDXC Card Slots
- Built-In Slate Microphone
- 8x AA Batteries, AC, External DC Adaptor
- Supports SMPTE Timecode I/O
- +24V/+48V Phantom Power
