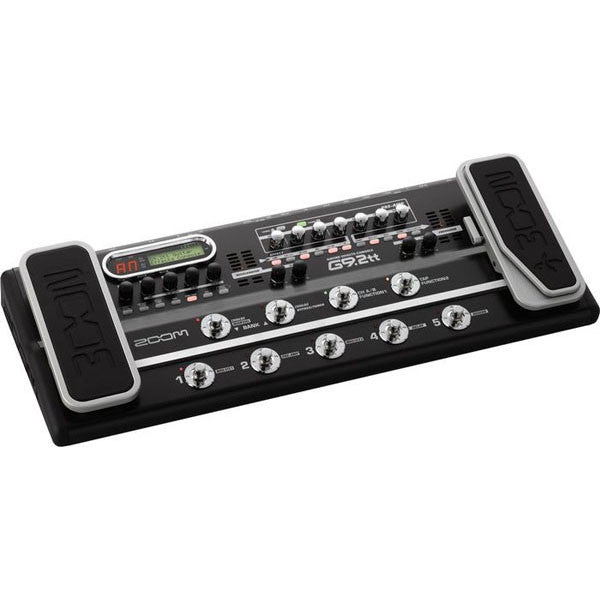

Zoom G9.2TT Twin Tube Guitar Processor

Zoom G9.2TT Twin Tube Guitar Processor _x005F The Zoom G9.2tt Twin Tube Guitar Multi-Effects Pedal/USB Interface ups the ante with 2 tubes and 2 built-in expression pedals The pedals can be assigned to control different parameters while the 2nd tube adds even more tube tone versatility.

_x005F Energizer using 12AX7 tube _x005F Giving body to the guitar sound and adding supple power and intensity - that is the task of the Energizer Turning up the TUBE control to drive the 12AX7 produces warm crunch with rich harmonics.

The BOOST control spruces up highs and lows, resulting in more transparency Enjoy a powerful tone also when recording directly to a line input or via USB on a computer.

_x005F ZFX-3 - a 32-bit DSP designed by ZOOM _x005F The heart of any multi-effect device is its processor and decoder section ZOOM has started a fresh chapter with its new ZFX-3 chip.

The 32-bit architecture ensures outstanding performance and allows smooth and detailed signal processing Accuracy and speed ensure that even delicate picking and fingering work come across with impressive clarity.

_x005F DSP sound modeling plus tube circuitry create the ultimate in distortion _x005F 96 kHz sampling and 24-bit A/D/A conversion assure super high resolution sound An abundance of signal processing power allows accurate recreation of the complex upper-range harmonics that are the hallmark of tube amplifiers.

Analog circuitry using a 12AX7 tube then adds that classic warmth and sonic impact to the DSP sound The result combines the best of the digital and analog worlds: distortion so advanced and sophisticated it elevates your guitar playing to the next level.

_x005F Preamp section with two channels _x005F The preamp section, comprised of the amp/drive-modeling, and EQ modules offers two channels per patch You can easily select a channel by simple foot switch operation.

Toggle between a Fender clean sound for rhythm and a Marshall drive sound for lead, while keeping modulation and spatial effect settings the same The user interface with analog knobs lets you shape the sound with the same facility as on a guitar amp.

_x005F Great for stage work or direct recording _x005F The amp/drive-modeling blocks have two dedicated algorithms for each amp/drive type, designed for live playing and direct recording The CABINET effect simulates amp and mic recording characteristics as well, and the algorithm is automatically switched according to the CABINET on/off setting.This lets you bring the same guitar sound that you used during practice or recording right on to the stage.

Alternatively, sound settings that were determined during a session with the band can be used seamlessly in the studio as well _x005F USB based audio interface functions _x005F The USB port allows the unit to function as an audio interface for a computer.

Simply plug the unit in to your computer with a USB cable to use the high-quality sound of the G7.1ut in a computer-based recording system The high-performance DAW application "Cubase LE" comes bundled with the unit, so you can start creating sophisticated music straight away.

Because playback from the DAW application can be monitored at the unit itself, there are no latency problems during recording _x005F MIDI IN/OUT jacks allow linking to other equipment _x005F The ability to exchange MIDI data with other devices opens up a wealth of possibilities.

You can switch patches in conjunction with a MIDI enabled preamp, or use the unit as a real-time controller for other MIDI equipment By connecting the MIDI interface to a computer, you may use a dedicated editor/librarian application to edit and store patch data.

_x005F Zoom G9.2tt Features: _x005F _x005F 32-bit ZFX-3 processor _x005F 96kHz sampling rate / 24-Bit A/D/D/A converters _x005F Fast patch change speed: 7ms _x005F 106 effects / 10 modules _x005F Two 12AX7 tubes for natural overdrive/compression and drive/volume _x005F Dual Expression pedals _x005F 3D Z-Pedal allows for multi-dimensional parameter control _x005F USB interface for connecting directly to a computer _x005F Remote Patch Editor/Librarian available _x005F Zoom G9.2tt Specifications: _x005F _x005F Effect Types: 120 _x005F Effect Modules: 10 _x005F Maximum Simultaneous Effects: 10 _x005F Patch Memory: User 100 + Preset 100 _x005F Sampling Frequency: 96kHz _x005F A/D Conversion: 24-bit, 64 times over-sampling _x005F D/A Conversion: 24-bit, 128 times over-sampling _x005F Signal Processing: 32-bit _x005F Frequency response: 20Hz-40kHz+1.0dB, -3.0dB(10kΩload) _x005F Guitar Input: 1/4" phone jack (Rated input level: -10dBm, Input impedance: 1MΩ) _x005F \r\nrnrn AUX Input: 1/8" stereo phone jack (Rated input level: -10dBm, Input impedance: 10kΩ) _x005F External Return: 1/4" phone jack (Rated input level: -10dBm / +4dBm) rn Line Output (L/MONO, R): 2 x 1/4" phone jack(Rated output level: -10dBm / +4dBm, Maximum output level: +19dBm, Output load impedance: 10kΩ or more, Output Impedance: 1kΩ or less) _x005F Headphone Output: 1/4" stereo phone jack (Rated output: 60mW / 32Ω load, 20mW / 300Ω load, Output impedance: 47kΩ) rn External Send: 1/4" phone jack (Rated output level: -10dBm / +4dBm) _x005F Tube Circuitry: 2 x 12AX7 _x005F MIDI: IN/OUT _x005F USB Interface: 16-bit, 32kHz/44.1kHz/48kHz _x005F Display: 2-digit, 7-segment LED, backlit LCD _x005F Power Requirements: 15V AC, 1.5A _x005F Supplied Accessory: AC adaptor(AD-0012) _x005F Dimensions (mm): 595(W)x 235(D)x 85(H) _x005F Weight: 5.5kg.
