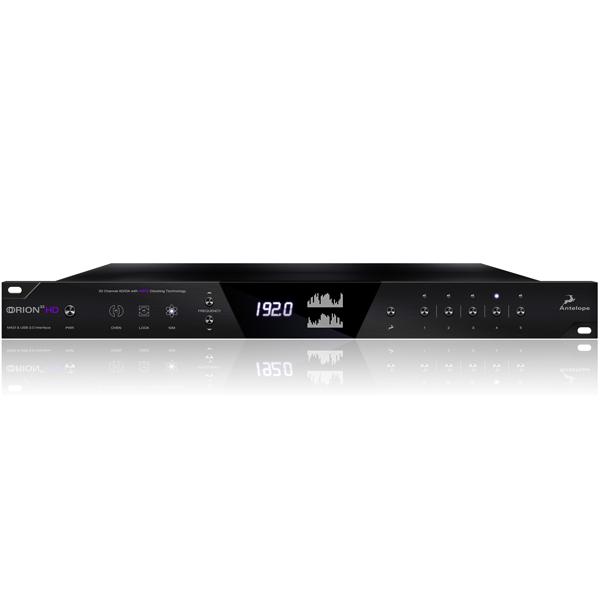

Antelope Audio ORION32 HD 64 channel HDX & USB 3.0 Audio Interface

Antelope Audio ORION32 HD 64 channel HDX & USB 3.0 Audio Interface Overview: FORGET ABOUT LATENCY Stream 64-channels of audio via HDX & USB 3.0 Orion32 HD is the newest addition to the Orion family Compatible with any DAW on the market via HDX port or USB 3.0, this new Pro Tools HD and Native interface offers everything Antelope Audio stands for.

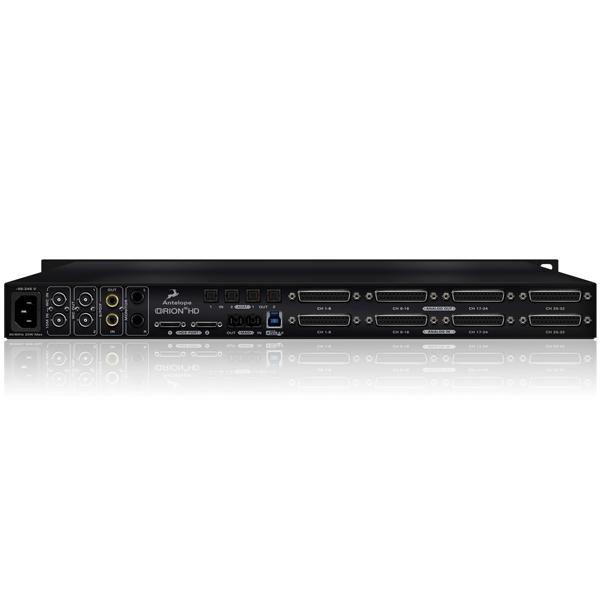

Zero latency Monitoring, I/O streaming of 64-channel 192 kHz audio, Antelope’s industry-leading clocking, and pristine AD/DA conversion Orion32 HD’s analog I/O is handled by 8 DB25 connectors, accompanied by MADI, ADAT and S/PDIF connectivity.

Orion32 HD features a fine selection of vintage FX powered by Antelope Audio’s innovative Field Programmable Gate Array (FPGA) technology bringing modeling of legendary vintage gear to a whole new level FAST AND FURIOUS Smooth mixing and mastering-grade monitoring Like its predecessors, Orion32 HD is a versatile audio interface, which works like a charm with any DAW on the market.

It enables you not only to stream an astounding 64 channels of audio when tracking, but also allows for multiple monitor mixes When monitoring, the sound is pleasing, combining transparent detail in a very natural way, like all things Antelope.

Independent software mixers, integrated hardware-based FPGA vintage effects, it’s all there, with more connectivity options than ever CLOCKING LIKE WE LOVE IT Perfect sound through flawless clocking The unbeatable clocking accuracy of Orion32 HD is provided by Antelope’s renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology.

Antelope’s clocking is known the world over with a 20 year reputation for excellence in both stability and sonic improvement Transients will shine like never before, you’ll achieve a stereo image with incomparable depth and detail.

And that sparse and crystal clear high-end… Yes, we’re talking sonic perfection just like in our game-changing OCX HD and Trinity master clocks FPGA POWERED The proprietary FPGA is the heart and soul of all Antelope Audio interfaces The exquisite collections of Vintage EQ’s include authentically models of Lang PEQ-1, BAE 1073, 1084, 1023, UK-69 and many other classic British and German vintage units.

Vintage Compressors begin with the life-like model of the FET76 and many more are soon to be available, FREE to all new and registered users of Antelope’s growing line of world class interfaces INTUITIVE SOFTWARE CONTROL Your wildest routing dreams come true with the Orion 32 HD desktop app Orion32 HD is fully controllable via its intuitive OS X and Windows compatible desktop app.

Its color-coded routing matrix now features an alternative view making routing a piece of cake The interface can be also accessed from multiple computers on the same network.

With freely movable and resizable panels you can maximize the most out of your computer monitor space, perfect when working on huge projects, scoring to picture and on multiple screen set ups Features: 64 CHANNELS I/O Simultaneous streaming of 24-bit, 192 kHz audio via HDX or USB 3.0 and additional connectivity on MADI, ADAT, S/PDIF, 8x DB25 SUPREME CLOCKING Powered by Antelope’s 64-BIT Clocking Technology with 2 Word Clock or Loopsync Outs, Word Clock or LoopSync & Antelope 10M/10MX Atomic Clock Inputs POWERFUL FPGA Custom FPGA for authentic modeling of vintage gear, maintaining multiple mixers with real-time effects processing and measuring only 2 samples of inaudible latency MASTERING GRADE MONITOR OUTS High Monitoring DA included using chips from our popular Pure2 Mastering Converter SOFTWARE CONTROL Routing, mixing, real-time effects processing via OS X & Windows compatible app QUIET OPERATION Housed in an efficient “green” design with no fans inside, means no need for expensive machine rooms or iso racks Specifications: ANALOG Analog Inputs 4 x DB 25 (32 channels total), +24 dBu max Analog Outputs 4 x DB 25 (32 channels total), +24 dBu max 2 x Monitor Outs on TRS 1/4 Jacks, +24 dBu max D/A Monitor Converter Dynamic Range: 129 dB THD + N: -108 dB A/D Converter Dynamic Range: 120 dB THD + N: -110 dB D/A Converters Dynamic Range: 120 dB THD + N: -107 dB DIGITAL Digital Inputs 1 x Fiber Optic MADI (up to 64 channels) 2 x ADAT (up to 16 channels) 1 x S/PDIF Digital Outputs 1 x Fiber Optic MADI (up to 64 channels) 2 x ADAT (up to 16 channels) 1 x S/PDIF USB I/O USB 3.0 – 64 channels I/O up to 192kHz, USB 3.0 Type B connector HDX 2 x mini HDX connectors for direct Pro Tools connection 32 Channels I/O each ( total of 64 channels) CLOCKING Word Clock Input 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz Atomic Clock Input 1 x 10M Input @ 75 Ohms 1Vpp on BNC Word Clock Outputs 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz Clocking System 4th Generation Acoustically Focused Clocking 64-bit DDS Oven Controlled Crystal Oscillator Clock Stability <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF Clock Aging < 1 ppm per year Clock Calibration < +/-0.001 ppm Sample Rates (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 OTHER Operating Temperature 0-50°C, 32-122°F Weight 3.6kg / 8.0 lb ( approx ) Dimensions (Approx) Width: 483 mm / 19” Height: 44 mm / 1.75” Depth: 270mm / 10.63″ Electrical specs AC Universal input: ~95-245 V Power Consumption: 30 Watts Max In the Box Orion32 HD Portable Audio interface Owner’s Manual 1 USB 3.0 Cable AC Power Cord.
