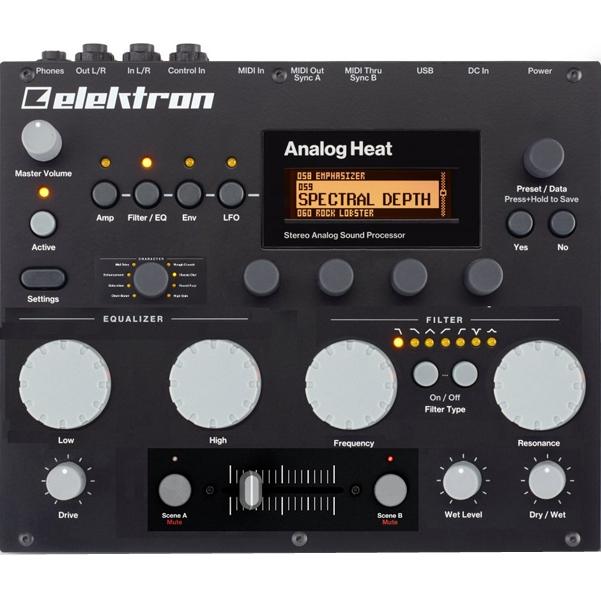

Elektron ANALOG HEAT Audio Interface

Elektron ANALOG HEAT Audio Interface Overview: Interactive Heat Demo All processed sounds from the Interactive Heat Demo have been recorded straight from an actual Analog Heat unit Select a source sound, play around with the controls and hear how the Analog Heat affects the signal.

Sound better Take a sound, any sound Send it through the Analog Heat, try out the eight different stereo analog distortion circuits, add stereo analog filtering and EQ, and hear beautiful things unfold.

New life for your existing gear Plugin control Overbridge essentially allows your Analog Heat to be used as a VST/AU effect plugin.

Connect the Analog Heat to your computer and conveniently smooth out the edges of all digital sounds Incredibly useful for bringing your mixes to life.

Sound card operation One of the most prominent Analog Heat features: it can function as a 2 in/2 out sound card, even while processing DAW audio Perfect for the traveling musician.

Create as you go and make stellar, high quality recordings wherever you may roam Overbridge enabled Through Overbridge, Analog Heat can be fully integrated with your DAW.

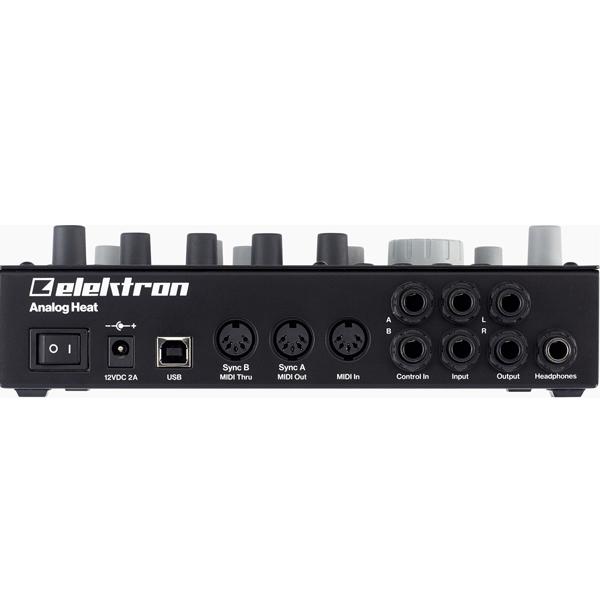

Specifications: Sound processing: 8 × Stereo analog distortion circuits 1 × Stereo analog multi-mode filter (7 filter types) 1 × 2 band adaptable stereo analog EQ 1 × Assignable envelope generator/envelope follower 1 × Assignable LFO Storage 128 user preset slots Hardware 122×32 pixel backlit LCD MIDI In/Out/Thru with DIN Sync out 2 × 1/4″ balanced audio out jacks 2 × 1/4″ balanced audio in jacks 1 × 1/4″ stereo headphones jack 2 × 1/4″ CV/Expression pedal input jacks 48 kHz, 24-bit D/A and A/D converters Flash-EEPROM upgradable OS Hi-speed USB 2.0 port Audio outputs Headphones out level: +22 dBu peak Headphones output impedance: 55 Ω Impedance balanced main outputs level: +22 dBu peak Main outputs impedance: 440 Ω unbalanced Sound card S/N Ratio: 111 dBFS (20-20,000 Hz) Audio inputs Balanced audio input level: +22 dBu peak Audio input impedance: 39 kΩ Sound card S/N Ratio: 112 dBFS (20-20,000 Hz) Control inputs Input level: -5 V – +5 V Accepts CV, Expression pedals, Foot switches Physical specifications Sturdy steel casing Dimensions: W215×D184×H63 mm (8.5×7.2×2.5″) (including audio outputs, knobs and rubber feet) Weight: approximately 1.5 kg (3.3 lbs) 100×100 mm VESA mounting holes Miscellaneous Overbridge enabled Included in the box Power Supply PSU-3b Elektron USB cable.
