ART CX310 2way-3way Crossover

ART CX310 2way-3way Crossover Overview: Designed for Live PA and fixed-installation applications, the model CX310 is a precision Two-Way Stereo / 3-Way mono analog crossover network 24dB/octave state-variable, fourth-order, Linkwitz-Riley filters.

Fourth-order Linkwitz-Riley filters guarantee in-phase outputs at all frequencies which is mandatory for the proper acoustic summing of common signals from adjacent drivers in the crossover region Each channel features input level, high and low output level and crossover frequency rotary controls.

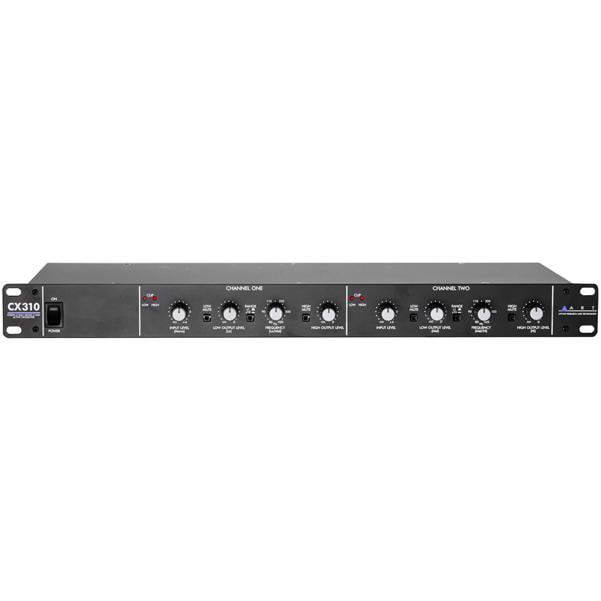

A frequency "x10" switch is provided for varying the crossover frequency from the standard 80Hz - 920Hz to 800Hz - 9200Hz Front panel output mute switches are provided for each individual output to ease system setup.

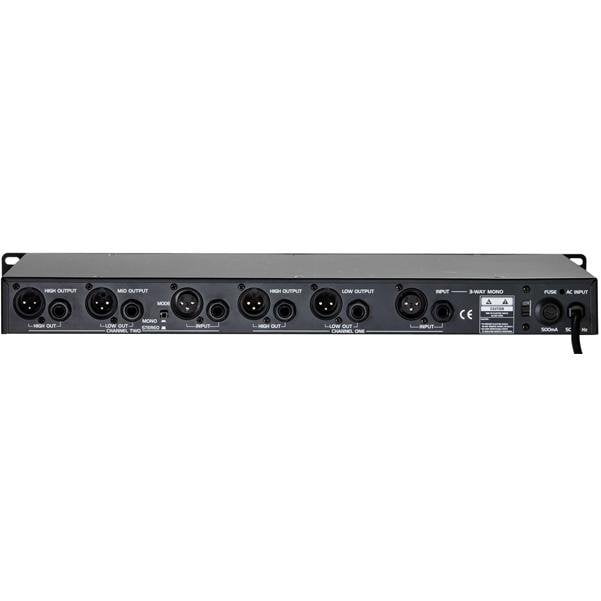

The rear panel features XLR and active balanced 1/4-inch TRS input and output connectors as well as a two-way / three-way mode selector switch Housed in a rugged all-steel chassis, the model CX310 will provide years of continuous reliable performance.

Features: Stereo Two-Way or Mono Three-way Configurations Fourth-Order Linkwitz-Riley Filters Active Balanced XLR and 1/4" TRS Input and Output Connectors Individual Output Muting Switches x10 Frequency Range Adjusting Switch Clipping Indicators on all Outputs Designed for Years of continuous, reliable performance Rugged all-steel Construction Specifications: Input Connections: XLR, 1/4” TRS, balanced Output Connections: XLR, 1/4” TRS, balanced Frequency Response: 10Hz to 20kHz, +0/-1.5dB Crossover Frequency Range x1: 80Hz to 920Hz x10: 800Hz to 9.2kHz Crossover Filter: Type Fourth-order Linkwitz-Riley, 24dB/octave Dynamic Range: 118dB Signal to Noise Ratio: >85dB Input Impedance: 20k Ohms Output Impedance: 150 Ohms Maximum Input Level: +13dBu Maximum Output Level: +21dBu Total Harmonic Distortion (THD): <0.05% (20Hz-20kHz) Maximum Gain: +4dB Power Requirements: 105-120V AC, 50-60hz, 3VA (USA) Dimensions (HWD): 1.75” x 19” x 6.5” (44mm x 483mm x 165mm) Weight: 7.1 lbs (3.2 kg).
