Sennheiser XSW-D Instrument Base Set Guitar Wireless System

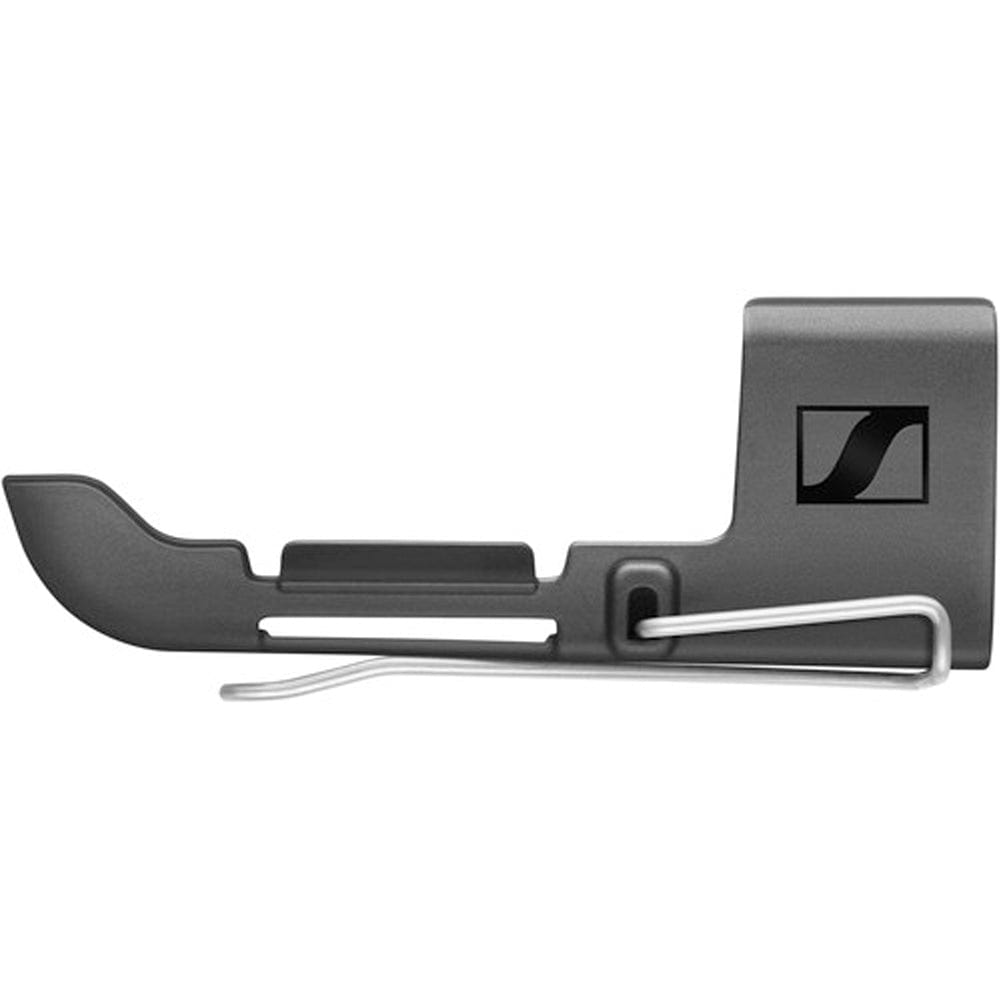

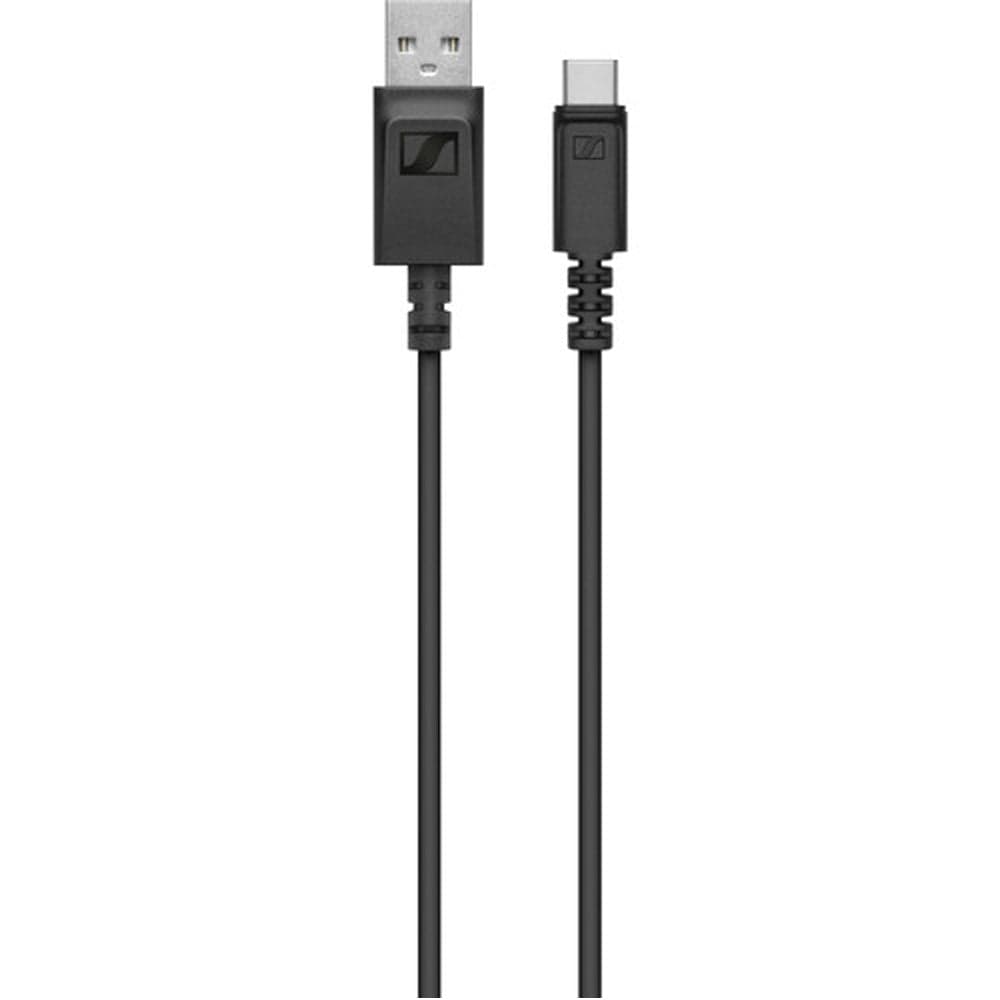

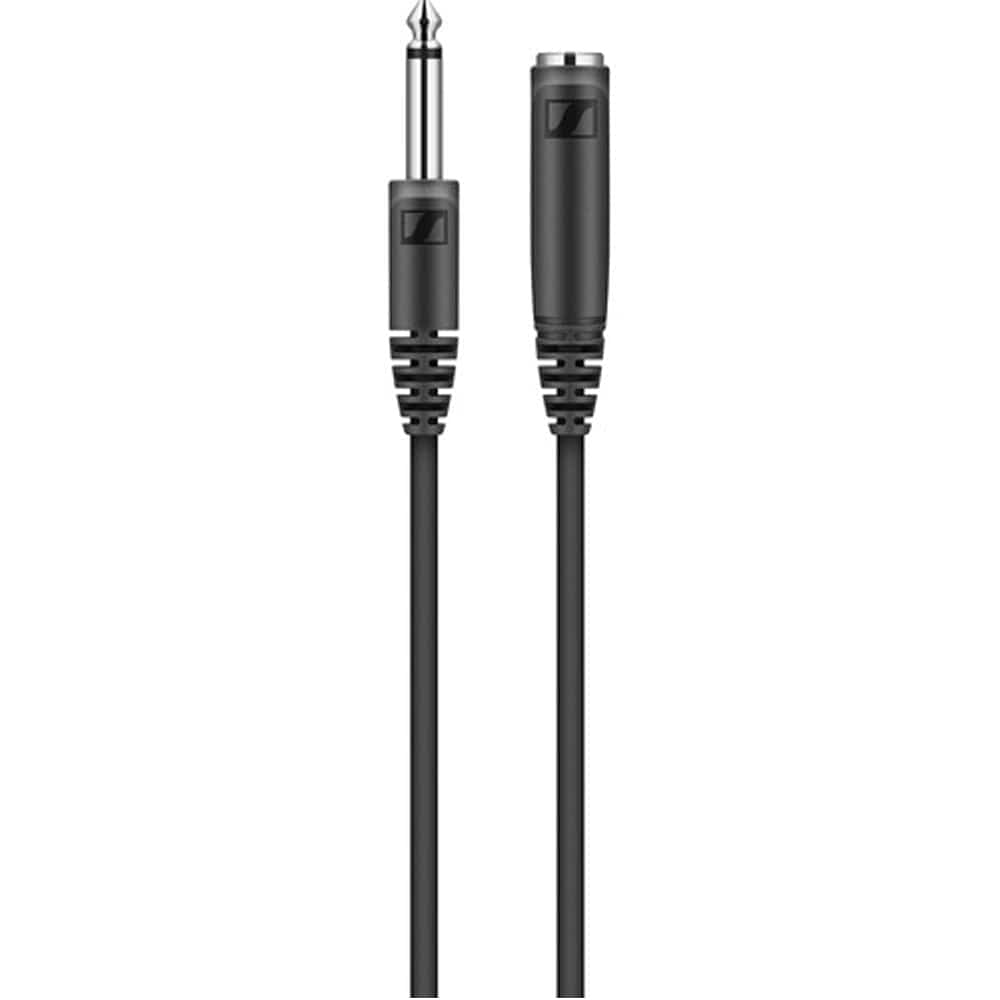

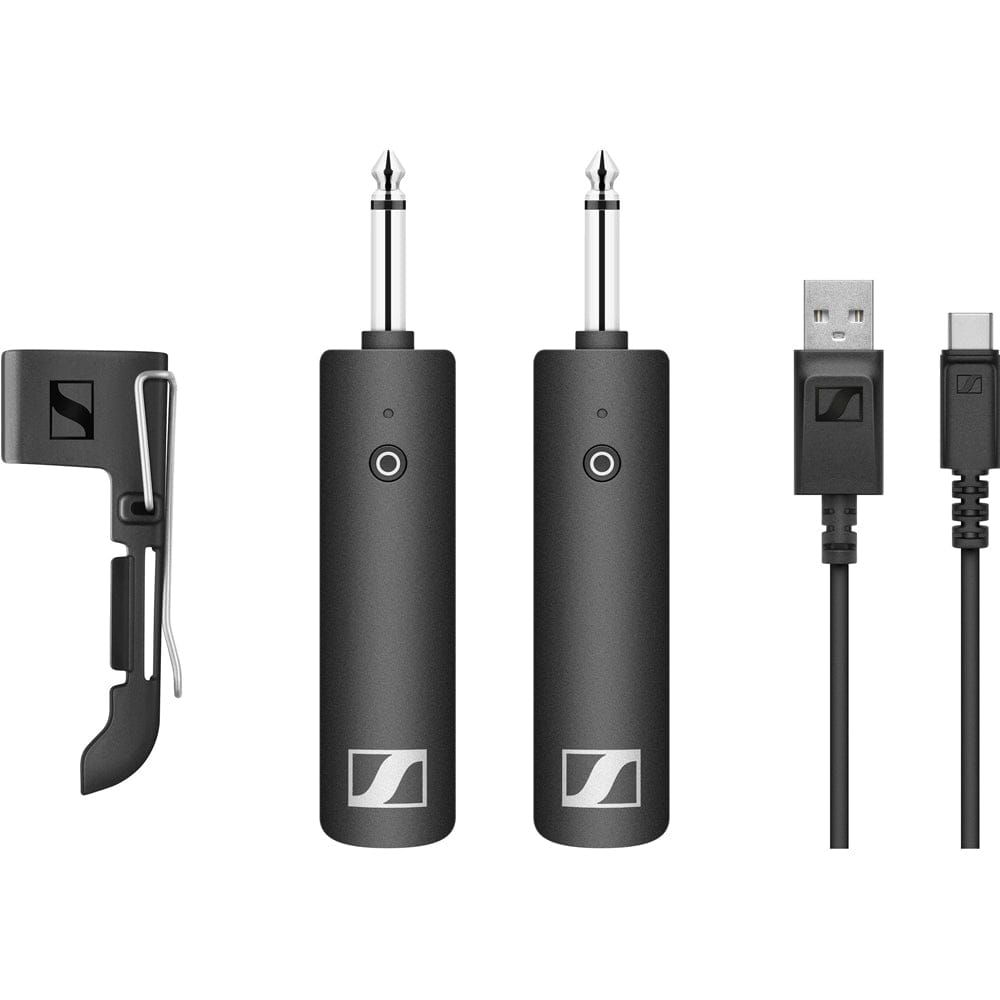

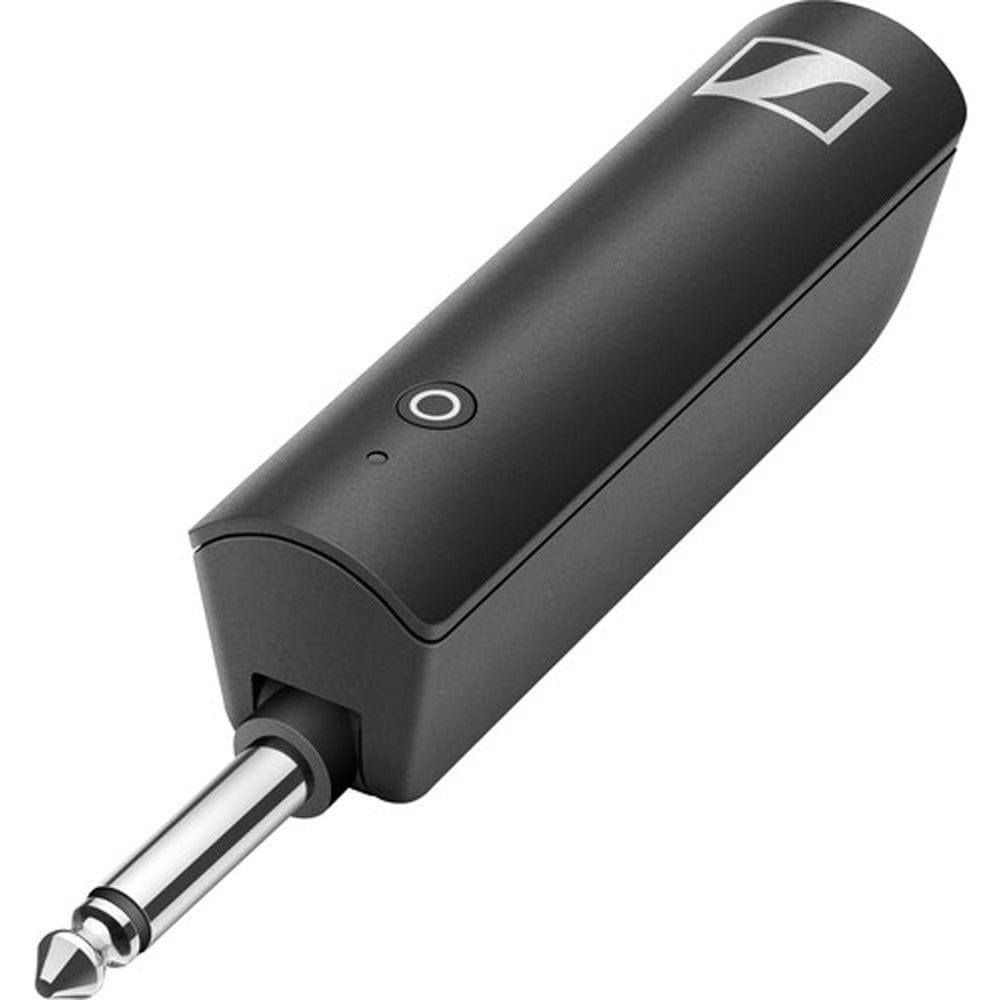

Sennheiser XSW-D Instrument Base Set Guitar Wireless System Overview: One-touch ease-of-use wireless audio set with XSW-D 6.3mm (1/4”) transmitter, XSW-D 6.3mm (1/4”) receiver, extension cable 6.3mm (1/4“), belt clip and USB-A to USB-C charging cable Features: One touch ease-of-use 2.4 GHz digital transmission for worldwide operation 75m range (250ft) in optimal conditions Up to 5 hours battery life on a single charge Switch between multiple transmitters linked to one receiver Configure any combination of transmitters and receivers Mute from either transmitter or receiver Specifications: Dimensions: XSW-D XLR FEMALE TX: approx.

102 x 24 x 28 mm XSW-D MINI JACK TX: approx 86 x 24 x 28 mm XSW-D INSTRUMENT TX: approx.

122 x 24 x 28 mm XSW-D XLR MALE RX: approx 109 x 24 x 28 mm XSW-D MINI JACK RX: approx.

86 x 24 x 28 mm XSW-D INSTRUMENT RX: approx 122 x 24 x 28 mm XSW-D PEDALBOARD RX: approx.

130 x 82 x 51 mm THD, total harmonic distortion: < 0.1 % Charging time: typ 3 h Audio output: max.

12 dBu Operating temperature: -10 °C to +55 °C (14 °F to 131 °F) Signal-to-noise ratio: ≥ 106 dB Operating time: up to 5 h Modulation: GFSK with TDMA Battery Specification: Li-Ion Capacity: 850 mAh Codecs: aptX Live Frequency range: 2,400 - 2,483.5MHz Max Input voltage: typ.

5.0 V Transmission power: max 10 mW Voltage: 3.7 V Operating relative humidity: 95 % (non-condensing) Latency: < 4 ms Temperature Range: 0 °C - 60 °C (32 °F - 140 °F) Audio frequency response: 3.5 mm Jack/XLR: 80 - 18,000 Hz, 6.3 mm Jack: 10 - 18,000 Hz In the Box: XSW-D 6.3mm (1/4”) transmitter XSW-D 6.3mm (1/4”) receiver Extension cable 6.3mm (1/4“) Belt clip USB-A to USB-C charging cable Made in Germany.
