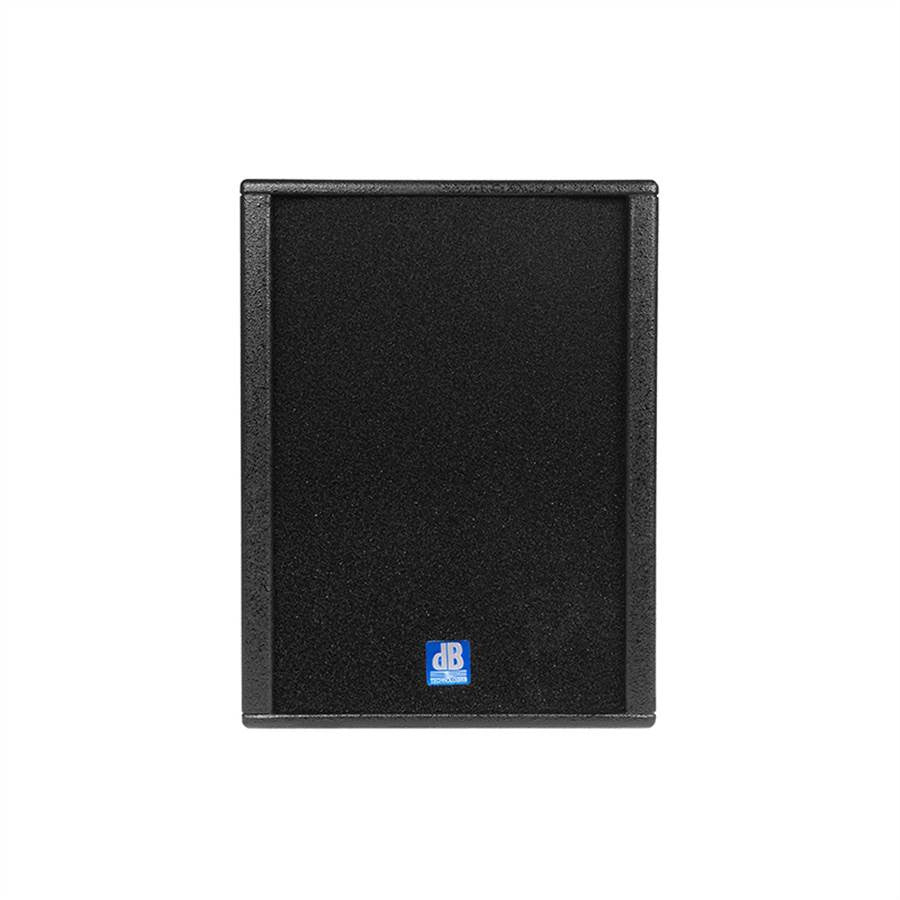

dB Technologies Arena SW 15

The ARENA SW15 offers a 15" woofer with a 3" voice coil which can take a load up to 1000 watt putting out an extraordinary SPL of 130dB at very powerful low end frequencies. It can be easily combined with ARENA10 and ARENA12 high/mid units, due to the internal passive crossover. Also possible is bi-amp operation using an external crossover unit.

Technical Specifications: Speaker Type : Passive Subwoofer Acoustical data Nominal Power Rating : 500 W/RMS Program Power Rating : 1000 W Impedance : 8 Ohms Frequency Response [+/- 3dB] : 40 - 150 Hz Max SPL : 130 dB LF : 15 “ Voice Coil LF : 3 “ Internal Crossover : YES Crossover Frequency (passive) : 150 Hz Amplifier Processor Input : Signal Input : 1x Speakon (Pin 1+=+) (Pin 1-=-) Signal Output : 1x Speakon (Pin 1+=+) (Pin 1-=-) Mechanics : Housing : Multiplex birch plywood Width : 460 mm (18.4 in) Height : 600 mm (24 in) Depth : 600 mm (24 in) Weight : 34 kg (74.96 lbs)
