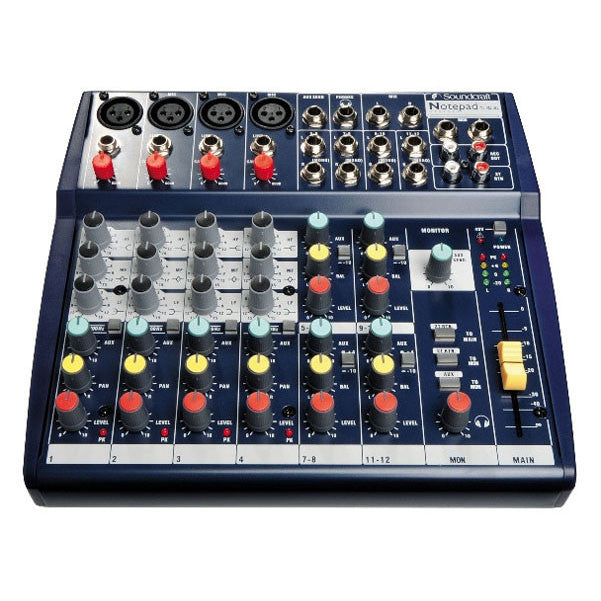

Soundcraft Notepad 124 Mixer

Buy Soundcraft Notepad 124 Mixer online in India - India's music equipment superstore Soundcraft Notepad 124 Mixer.

_x005F The Soundcraft Notepad 124 mixer boasts Soundcraft audio performance with the acclaimed GB30 mic preamp and EQ technology in a highly-compact and solid chassis _x005F The 124 has 4 mono mic/line inputs.

It also boasts 4 stereo line inputs, and suits a very wide range of applications where simple yet high-quality mixing is required, such as in home recording, small band/cabaret PA systems, AV presentation systems, small broadcast edit suites, educational environments and general contracting _x005F The FX send is replaced by a standard AUX send with a dedicated output.

It also provides a recording output of the mix on RCA/Phono connectors as well as a stereo input for CD playback etc _x005F Other highly-desirable functions include a high-pass filter on the mono inputs, a 60mm fader for the mix output selectable sensitivity of +4dBu or -10dBV on each stereo input (Notepad 124 models only) and multi-segment led metering on the mix output along with a headphone monitoring output.

_x005F Soundcraft Notepad 124 Mixer Features: _x005F Analog mixer _x005F 4 mic inputs with GB30 mic preamps: _x005F 4 stereo line channels for keyboards, MP3 player, etc _x005F Switchable +4dBu/-10dBV on stereo inputs _x005F Classic-sounding Soundcraft GB30 3-band British EQ _x005F 100Hz high-pass filter on each mic input _x005F +48V phantom power (global) _x005F 1 Aux/FX Sends _x005F 1 Return _x005F L/R main Bus Outs.

_x005F Soundcraft Notepad 124 Mixer Specifications: _x005F Frequency Response Mic / Line Input to any Output: +1/-1.5dB, 20Hz – 20kHz _x005F T.H.D Mic Sensitivity -30dBu, +10dBu @ Mix output: _x005F Noise _x005F Mic Input E.I.N.

(maximum gain): -128.5dBm (150Ω source) _x005F Aux, Mix and Masters (@ 0dB, at unity) _x005F Crosstalk (@ 1kHz) _x005F Channel Faders: > 87dB _x005F Master Faders: > 100dB _x005F CMRR (@ 1kHz) Master Faders: > 90dB _x005F EQ _x005F High Pass Filter: 100Hz @ 12dB/Octave _x005F HF: 12kHz, ±15dB, _x005F MF: 1kHz, ±15dB _x005F LF: 80Hz, ±15dB _x005F Q: 0.7 _x005F Power Consumption: Less than 40W _x005F Operating Conditions Temperature Range: 5°C to 40°C _x005F Input & Output Levels _x005F Mic Input: +10dBu max _x005F Line Input: +22dBu max.

_x005F Stereo Input: +20dBu max _x005F Mix Output: +25dBu max.

_x005F Headphones (@32Ω): 300mW _x005F Input & Output Impedances _x005F Mic Input: 2kΩ _x005F Line Input: 18kΩ _x005F Stereo Input: 20kΩ _x005F Outputs: 150Ω _x005F Dimensions (WxHxD):242mm (9-1/2") 45mm (1-13/16") 220mm (8-11/16") _x005F Weight: 1.6 kg (3.5 lb.) _x005F Made in China.
