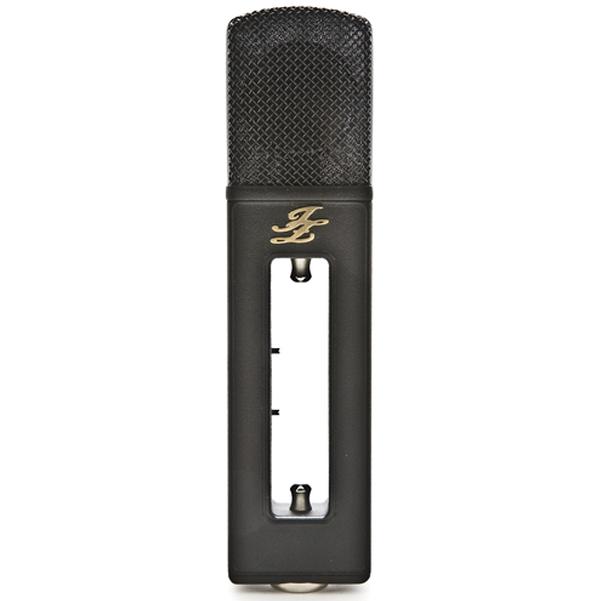

JZ Microphones BH1s Condenser Microphone

JZ Microphones BH1s Condenser Microphone Overview: JZ Microphones engineers' and users' opinion is that any Black Hole Series microphone, which is a fantastic vocal mic, is great on every application it is used Unbelievable clarity and definition, smoothness and feel full transparency is the way industry professionals describe their own thoughts after using the Black Hole Series microphones to record their music.

BH1S has a 0.4% component selection tolerance -10 & -20dB PAD and 3 polar patterns makes BH1S extremely versatile and perfect for day to day recording in any world-class, project or home studios.

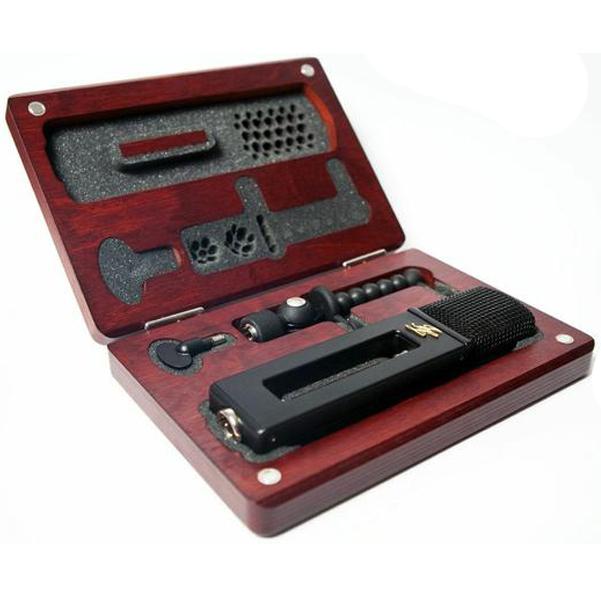

Features: Large diaphragm condenser microphone GDC2 capsule Class A discrete electronics 3 polar patterns: cardioid, fi gure of 8, omni -10 and -20dB PAD Extra low self noise level - 7.5 dB (A) Maximum Sound Pressure Level (SPL) - 134.5 dB Top Applications Acoustic Guitar Male Vocals Wind Instruments String Instruments Specifications: Contents: 1 x Wooden case 1 x BH series microphone 1 x standard shock-mount 1 x Thumb screw 1 x User Manual Transducer type: Electrostatic Operating principal: Pressure gradient Diaphragms active diameter: 2 x 27 mm Frequency range: 20 Hz to 20 kHz Polar pattern: Omni / Cardioid / Figure - 8 Pad switch: -20db/-10db Output impedance: 50 ohms Rated load impedance: >250 ohms Suggested load impedance: 1000 ohms Sensitivity at 1000 Hz into 1000 ohms load: 18 mV/Pa S/N Ratio CCIR 468-3 weighted: 75.5 dB S/N Ratio DIN/IEC 651 A-weighted: 86.5 db-A Equivalent noise level DIN/IEC A-weighted: 7.5 dB-A Maximum SPL for 0.5% THD at 1000 ohm load: 134.5 dB Dynamic range of the microphone preamplifier: 127 db Phantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4 V) Current consumption: 1.5 mA Output connector: 3-pin XLR male, gold plated contacts Signal polarity: positive toward pressure on a frontal diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3 Dimensions: 203 x 51 x 28 mm.
