Ld System 8" Active Installation Monitor - Black

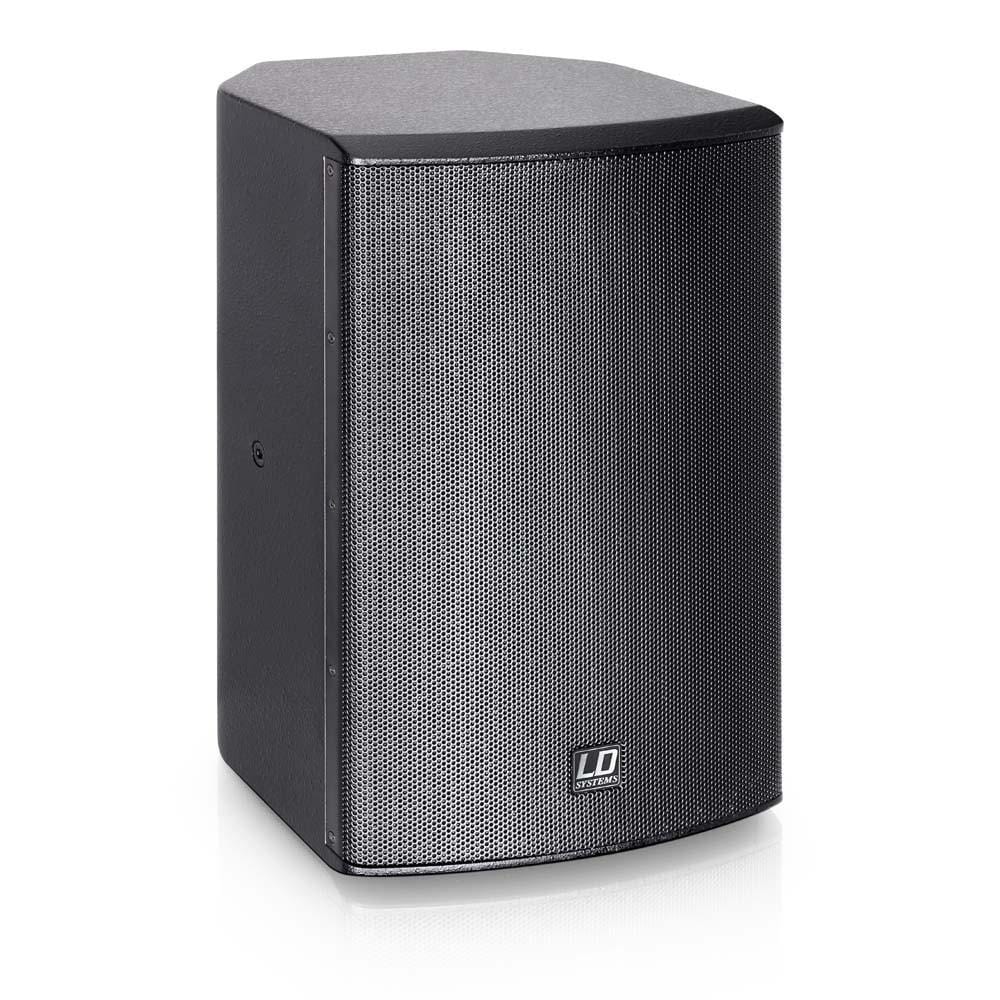

Ld System 8" Active Installation Monitor - Black Overview: The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier.

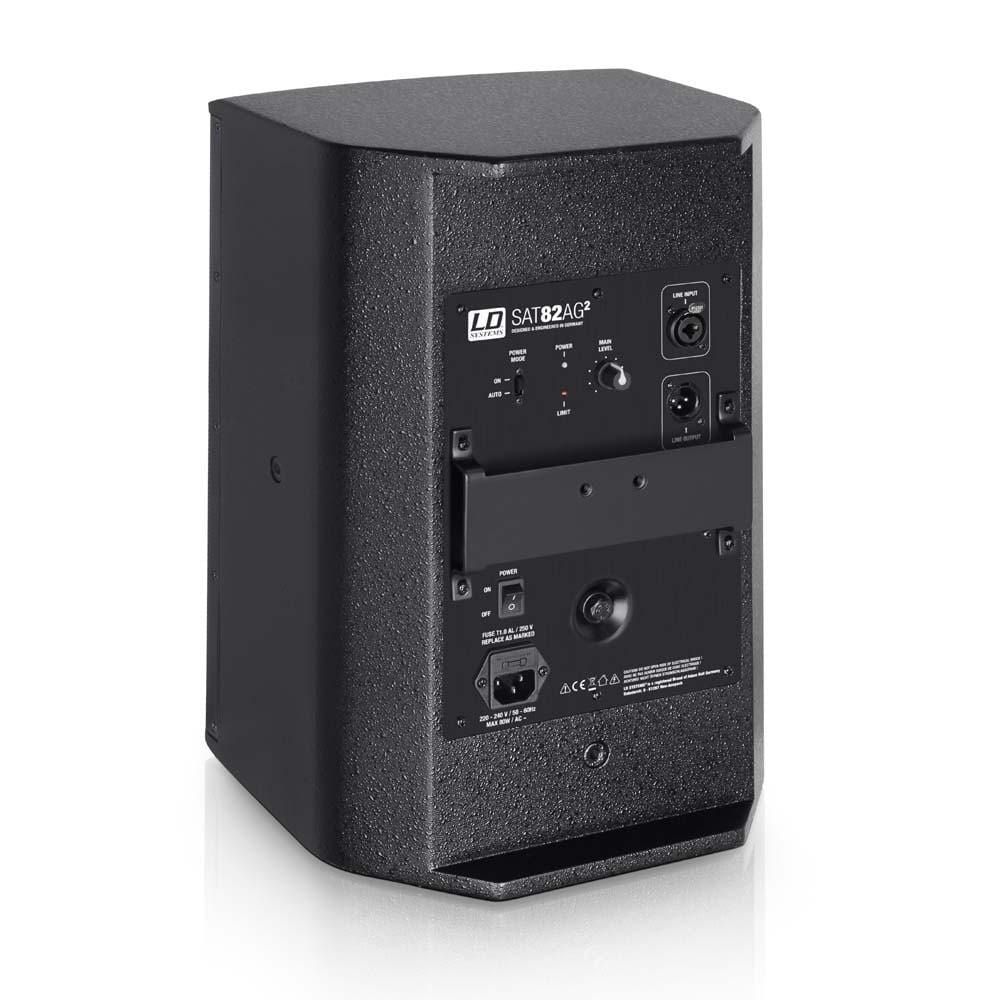

The input is a combo socket; an XLR socket is used to loop through the signal With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics.

The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish.

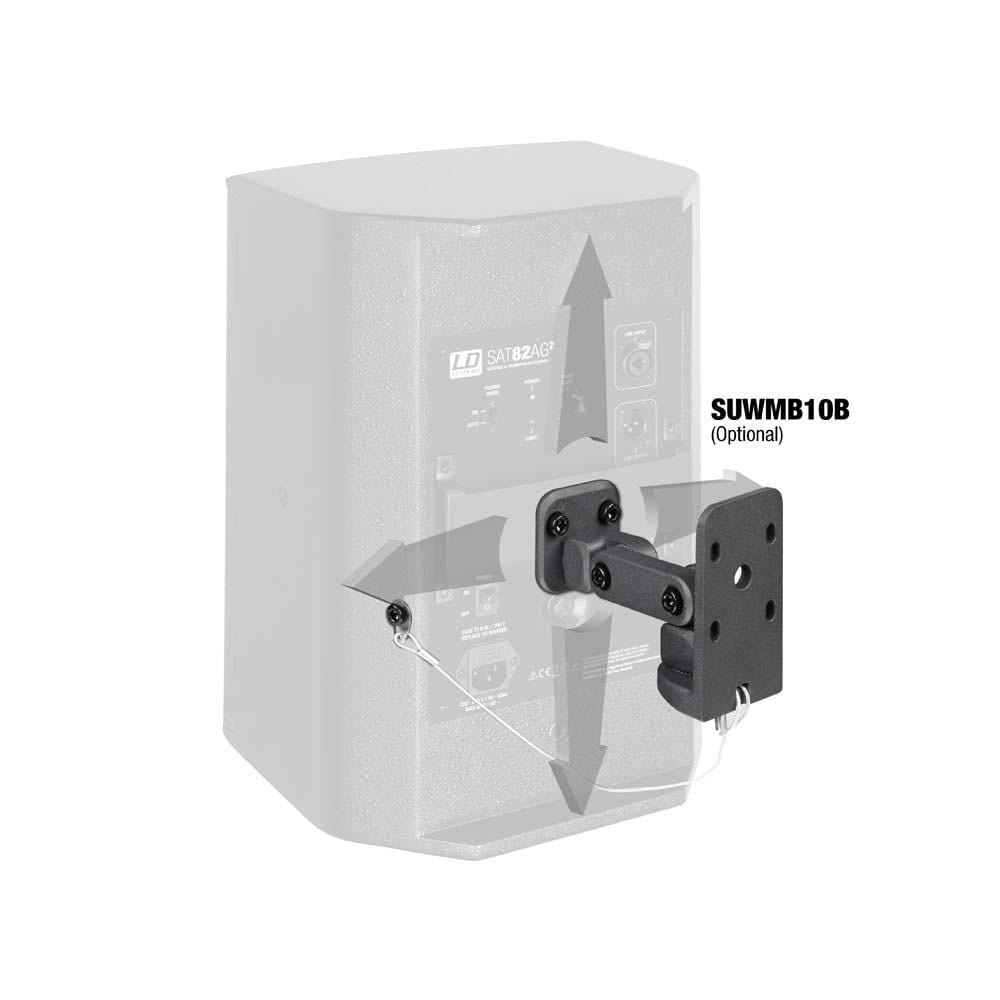

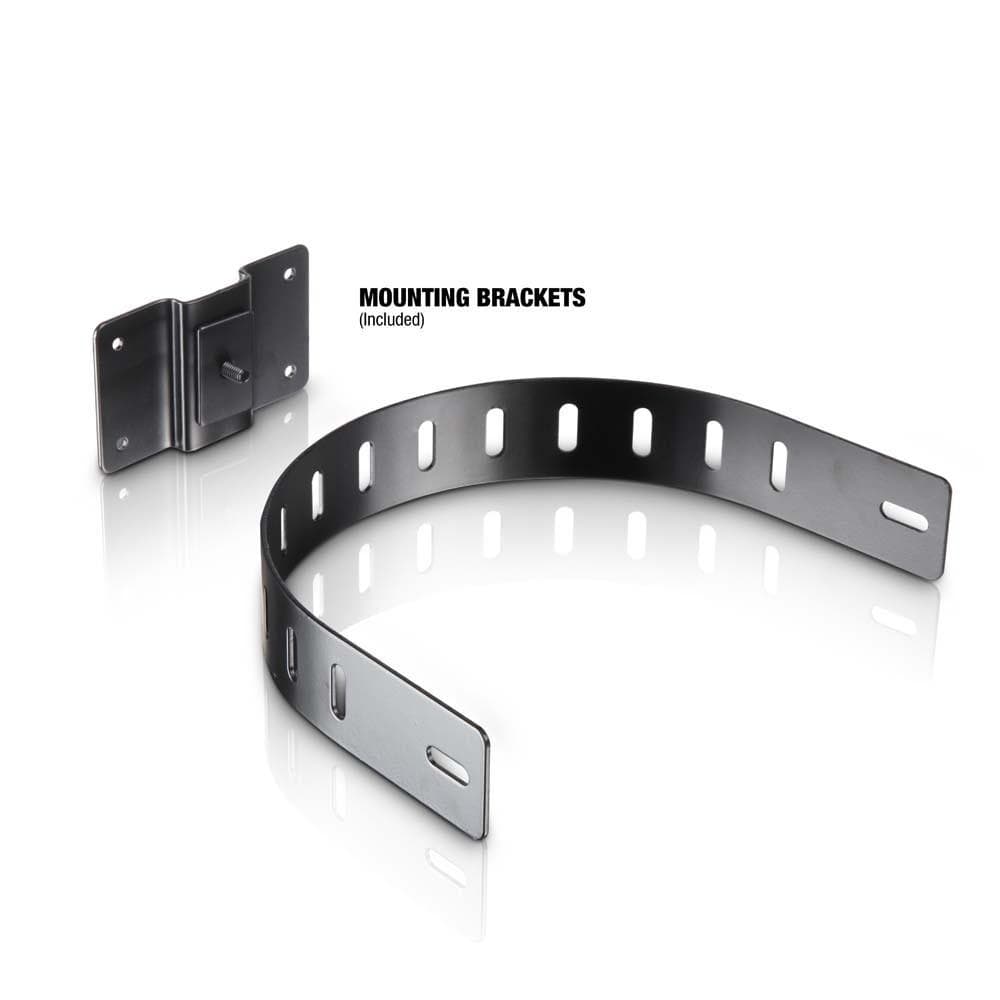

A versatile mounting bracket is included; a universal joint mount is available as an accessory Features: Compact active 2-way installation monitor Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker 8" custom-made woofers 1" high frequency driver with a 60° x 60° dispersion angle Integrated Class AB power amplifier with 80 watts (RMS) Switchable automatic power save mode Mounting bracket and M6 fixing points for a wide variety of installation possibilities Specifications: Product type: Installation Loudspeakers Type: Wall-mounted Loudspeaker Low/mid driver dimensions: 8 " Woofer size: 203.2 mm Woofer magnet: Ferrite Woofer brand: Custom-made HF driver dimensions: 1 " HF Driver Size: 25 mm HF driver magnet: Ferrite HF driver brand: Custom-made Power amplifier (Class A): Class A/B Dispersion (H x V): 60° x 60 RMS: 80 W Frequency response: 50 - 20000 Hz Max.

SPL: 114 dB Protection circuits: HF Driver , over voltage Controls: mains switch (on/off) , volume Indicators: overload , Power Line input connectors: 6.3 mm jack , XLR Line output connectors: XLR Operating voltage: transformer Operating voltage: 220 V AC - 240 V AC, 50-60 Hz Cabinet material: 12 mm MDF Cabinet surface: texture paint Cabinet colour: Black Cabinet construction: Bass Reflex Width: 274 mm Depth: 243 mm Weight: 8,5 kg Made in China.
