Shure ULXP14 Instrument Wireless System

Buy Shure ULXP14 Instrument Wireless System online in India - India's music equipment superstore _x005F Shure ULXP14 Instrument Wireless System.

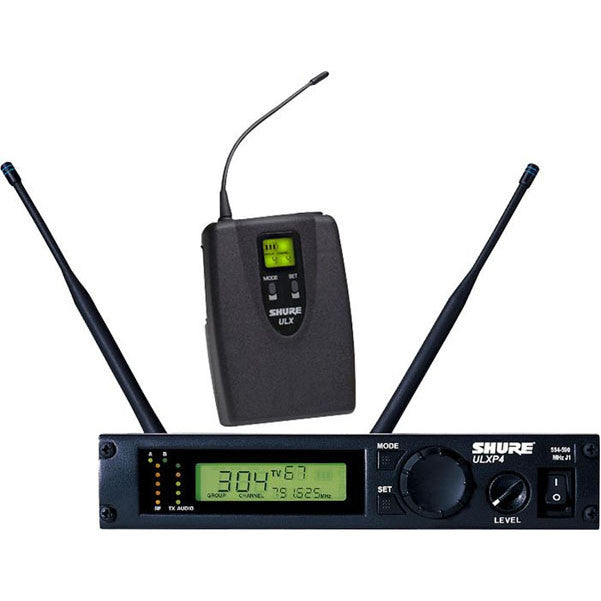

_x005F The Shure ULXP 14 Instrument Wireless System features a ULXP4 Diversity Receiver, a ULX1 Bodypack Transmitter, and the WA302 cable Shure ULX Standard UHF systems represent a breakthrough in performance and price for both working musicians and professional sound installers.

ULX Professional systems offer more advanced features and controls, including lockable settings and group scan function Over 1400 selectable, pre-programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel.

_x005F Shure ULXP14 Features: _x005F Automatic Frequency Selection with group scan function _x005F Over 1400 selectable frequencies _x005F Predictive Diversity _x005F 5-segment transmitted audio signal strength meter _x005F 5-segment RF meter _x005F 3-segment transmitter battery fuel gauge _x005F Advanced multi-function LCD displays group and channel _x005F Mic/Line switch _x005F Remotable 1/2-wave antenna _x005F Frequency and volume lockout _x005F XLR and 1/4-inch output _x005F Rugged metal chassis _x005F 1/2 rack design _x005F Shure ULXP14 Specifications: _x005F ULXP4 Wireless Diversity Receiver _x005F RF Carrier Frequency Range: 554.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is _x005F used).

Refer to the frequency supplement supplied with the system _x005F Effective Range: 100 m (300 ft.) under optimal conditions (NOTE: Actual working range depends on RF signal absorption, reflection, and interference) _x005F Audio Frequency Response: 25 to 15,000 Hz, ± 2dB (NOTE: Overall system frequency response depends on the microphone element.) _x005F ULXP4 Receiver Input _x005F Connector: Antenna Power Input _x005F Connector Type: BNC IEC 320 _x005F Actual Impedance: 50 Ohms _x005F Nominal Input Level: —95 to —30 dBm 15 VDC _x005F Maximum Input Level: +6 dBm (—20 dBm recommended) 18 Vdc _x005F Pin Assignments: Shell = Ground Center = Signal IEC Standard _x005F Voltage for Remote Power: 12 Vdc, 150 mA maximum _x005F ULXP4 Receiver Output _x005F Connector: High Z Audio; Low Z Audio _x005F Output Configuration: High Z Audio Unbalanced (1/4 in.); Low Z Audio Balanced (XLR) _x005F Actual Impedance: High Z Audio 3 k0hms; Low Z Audio 22 _x005F Nominal Input Level: High Z Audio Pin Assignments: Tip = Hot Ring/ Sleeve = Gnd: Low Z Audio 1 = Ground 2 = Hot 3 = Cold _x005F Voltage/Current/Phantom: Power Protection?: High Z Audio; Yes Low Z Audio Yes _x005F Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive _x005F voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output _x005F Transmitter Gain Adjustment Range: ULX1: 25 dB _x005F Receiver Audio Output Level (± 38 kHz deviation, 1 kHz tone): _x005F XLR connector (into 600 ohm load): +3.9 dBV (line), —17 dBV (mic) _x005F 1/4 inch connector (into 3000 ohm load): —2 dBV _x005F Impedance _x005F ULX1 (input): 1 Megohm ULXP4 (output): 50 ohms at line level; 2000 ohms at mic level _x005F Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis.

_x005F RF Power Output: ULX2: 30 mW maximum _x005F Dynamic Range: >100 dB, A-weighted _x005F RF Sensitivity: 1.26 uV for 12 dB SINAD (typical) _x005F Image Rejection: 80 dB typical _x005F Spurious Rejection: 75 dB typical _x005F Ultimate Quieting (reference ± 38 kHz deviation): >105 dB, A-weighted _x005F System Distortion (reference ± 38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical _x005F Power Requirements: ULX2: 9V alkaline battery; 8.4 V Nicad optional; ULXS4: 14 - 18 Vdc (negative ground), 550 mA _x005F Battery Life: 8 to 9 hours (9V alkaline battery not included) _x005F Operating Temperature Range: - 20 degrees to 49 degrees C (- 4 degrees to 120 degrees F) _x005F NOTE: Battery characteristics may limit this range _x005F ULXP4 Dimensions (H x W x D): 1.72 in.

x 8.56 in x 6.88 in.

(43 mm x 214 mm x 172 mm) _x005F ULXP4 Weight: 2 lbs 7 oz (1105 g) _x005F ULX1 Dimensions (H x W x D): 3.86 x 2.68 x 1.10 in.

(96.5 x 67 x 26.7 mm) _x005F ULX1 Net Weight: 79 g (2.8 oz.) without battery _x005F Made in China.
