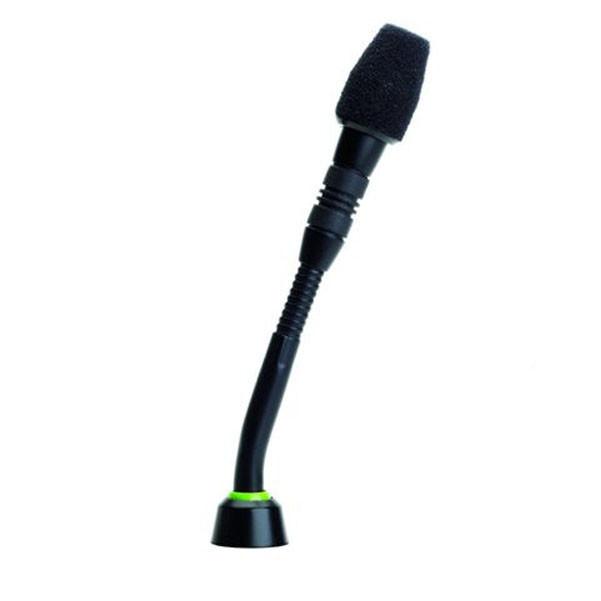

Shure MX405RLP/N Condenser Microphone

Buy Shure MX405RLP/N Condenser Microphone online in India - India's music equipment superstore Shure MX405RLP/N Condenser Microphone _x005F The MX405RLP/N is a miniature gooseneck microphone with a light ring as status display.

It has a 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important Permanently mounted or with a moveable desktop base (MX400DP), which includes a configurable mute button with logic output.

Also compatible with the MX890 wireless desktop base _x005F Shure MX405RLP/N Features: _x005F Available in 5 inch (127 mm) and 10 inch (254 mm) lengths _x005F Cardioid and supercardioid polar patterns _x005F Bi-color status indicator or single color light ring _x005F Programmable mute switch (desktop models only) _x005F Logic input/output for remote LED and mute control _x005F Surface-mount and wired or wireless desktop base options _x005F CommShield Technology for improved RF filtering _x005F Shure MX405RLP/N Specifications: _x005F Type: Condenser (electret bias) _x005F Frequency Response: 50-17000 Hz _x005F Polar Pattern:- MX405/C, MX410/C: Cardioid- MX405/S, MX410/S: Supercardioid _x005F Output Impedance: EIA Rated at 150 ? (170 ? actual) _x005F Output Configuration: Active balanced _x005F Sensitivity (at 1 kHz , open circuit voltage):Cardioid: -35 dBV/Pa (18 mV)Supercardioid: -34 dBV/Pa (21 mV)1 Pascal=94 dB SPL _x005F Maximum SPL (1 kHz at 1% THD, 1 k? load):Cardioid: 121 dBSupercardioid: 120 dB _x005F Equivalent Output Noise (A-weighted):Cardioid: 28 dB SPLSupercardioid: 27 dB SPL _x005F Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz):Cardioid: 66 dBSupercardioid: 68 dB _x005F Dynamic Range (1 k? load at 1 kHz): 93 dB _x005F Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum _x005F Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V) _x005F Polarity:3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.

_x005F Net Weight:MX405: 0.054 kg (0.119 lbs)MX410: 0.068 kg (0.150 lbs)MX400DP: 0.516 kg (1.138 lbs)MX400SMP (w/ Kit): 0.125 kg (0.275 lbs) _x005F Logic Connections:LED IN: Active low (?1.0V), TTL compatible Absolute maximum voltage: -0.7V to 50V.LOGIC OUT: Active low (?1.0V), sinks up to 20mA, TTL compatible.

Absolute maximum voltage: -0.7V to 50V (up to 50V through 3k?) _x005F Mute Switch Attenuation: -50 dB minimum _x005F Cable: MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control _x005F Environmental Conditions:Operating Temperature: -18-57 C (0-135 F)Storage Temperature: -29-74 C (-20-165 F)Relative Humidity: 0-95% _x005F Power Requirements: 48-52 Vdc phantom, 8.0 mA.

_x005F Made in China.
