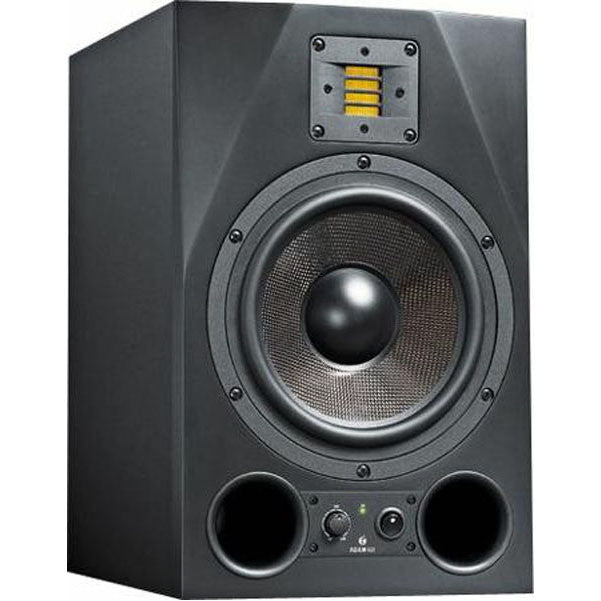

ADAM Audio A8X Powered Monitors

ADAM Audio A8X Powered Monitors Overview: The A8X adds to the AX-Series as a unique model because its power and radiation characteristics allow it to be used as both a nearfield and midfield monitor It represents a particularly attractive entry-level model for midfield monitoring which offers transparent reproduction of higher frequencies, clear mids and an excellent transient response.

The extra large, front-positioned bass reflex ports are perfectly matched with the bass/midrange driver that has a 1.5″ voice coil Thus the A8X can play very low registers with a powerful punch, and the greatest possible precision.

The 150 Watt PWM amplifier for the midrange speakers in conjunction with the 50 Watt A/B tweeter amp enable the A8X to generate impressive maximum sound pressure levels of 120dB per pair at one meter FEATURES & BENEFITS X-ART tweeter, handmade in Berlin Allows longer operation with fewer signs of fatigue Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle) The air velocity ratio of 4:1 during the sound generation by folded X-ART membrane Direct, fast response in the high-range even with complex transients Ultra-light but extremely dimensionally stable woofer material (Carbon/Rohacell/Glass fiber) Excellent transient response even at high sound levels without breakup of the diaphragm Vertical 2-way system with 8.5” woofer High resolution of the stereo image Spacious bass reflex ports on the front Bass reproduction with very low compression Allows positioning close to walls Highly efficient PWM amplifier for the woofer coupled with an A/B amplifier for X-ART tweeter Low-distortion amplification at both low and high volume levels Linear frequency response of 38 Hz to 50 kHz Unbiased reproduction in a very wide frequency band Maximum peak sound pressure per pair in 1 m ≥ 120 dB Powerful, compression-free sound reproduction even at very high sound levels Simple, stepless room acoustic adjustments over tweeter gain, low and high shelf filters Allows optimal adaptation to acoustically difficult listening environments Analog XLR and RCA inputs Optimized for balanced and unbalanced line signals Acoustically optimized cabinet geometry Reduction of unwanted reflections on the cabinets Directional sound radiation in vertical plane Reduction of early reflections on the surfaces of, e.g.

mixing consoles, desks, etc Volume control and on/off switch on the front Very easy to use 2 years warranty with optional extension to 3 years with the registration of the product Full repair service if required for 5 years ADAM Audio A8X Specifications: Suitable for both nearfield and midfield monitoring Equipped with the X-ART tweeter and a large (8.5"") midwoofer 50W A/B tweeter amplifier 150W PWM midwoofer amplifier Upper corners slanted to minimize reflections Large, double bass reflex tubes ±4dB gain for the high frequencies Two shelf filters for the high and low frequencies XLR (balanced) and RCA (unbalanced) connectors.

Made in Germany.
