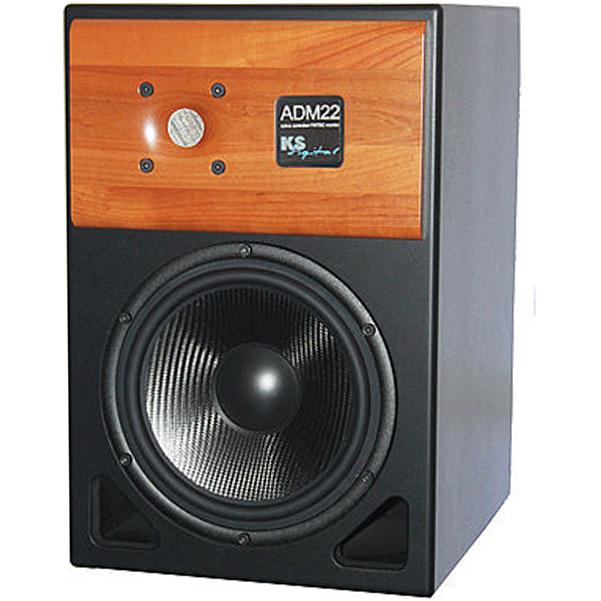

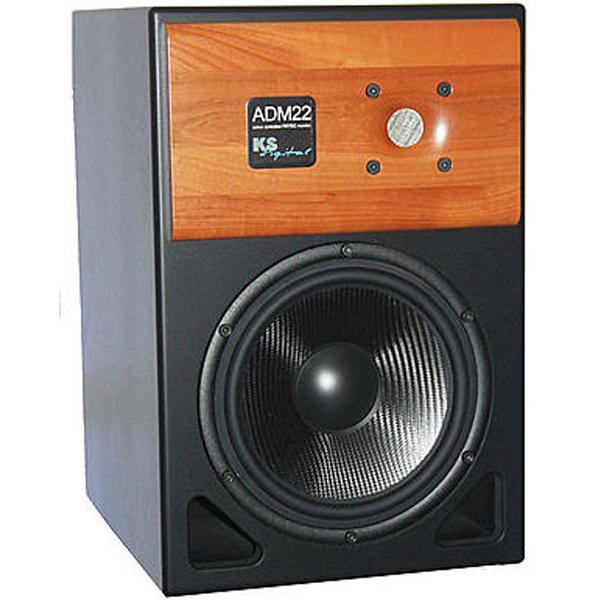

KS Digital ADM22 Powered Studio Monitors - Single - Left

KS Digital ADM22 Powered Studio Monitors - Single Overview: he ADM22 is a complete revision of the legendary ADM20, the world's first digital, phase-linear studio monitor During this revision, all the functions that are important for playback have been adopted by the ADM20 and adapted to the new housing.

The ADM22 also processes the signal purely digitally with its own DSP platform Patented FIRTEC system filters ensure a phase-linear, timely reproduction over the entire frequency range.

The waveguide blends out the housing edges and linearises the frequency response in addition to digital signal processing The 1" high-frequency ring radiator used ensures low-distortion reproduction even at higher levels.

The 8" carbon chassis of German manufacture, with its stiff diaphragm and the lowest weight (F1 material), prevents partial vibrations from breaking up at higher sound levels, making the compact ADM22 a full-fledged speaker for all applications 24 bit / 192 KHz DA converters supply the analog output stages, which provide 180 W (RMS) power with special audio transistors.

The optional digital input allows a DA converter-less connection to the digital workstation or master machine Three freely configurable peak EQs, as well as high and low windvings, allow you to adapt to the listening position in the studio.

These parameters, just like all others, such as Volume and Delay, can be controlled remotely from the computer using the optional FIRControl software, or even wired wirelessly with the remote hardware RC-100 Specifications: AD / DA converter: 24 bit sigma delta, 64 x oversampling Digital IN, OUT: AES3 format, 32 - 192KHz Analog IN, OUT: XLR-balanced, active bypass connector DSP process: FIRTEC equalization, FIR crossover, limiter, 6 user filter patent: 19823110 Room equalization: 5 peakfilter and FIRTEC system equalization Chassis: 1" radiator, 8" carboncone Amplifier: 250 W / 250 W peak SPL: 116dB cont./124dB peak Remote control: RC-100 Frequency range: 35 - 22000 Hz (+/- 3 dB) Special dimensions: 42 X 30 X 31 cm Weight: 12 kg.
