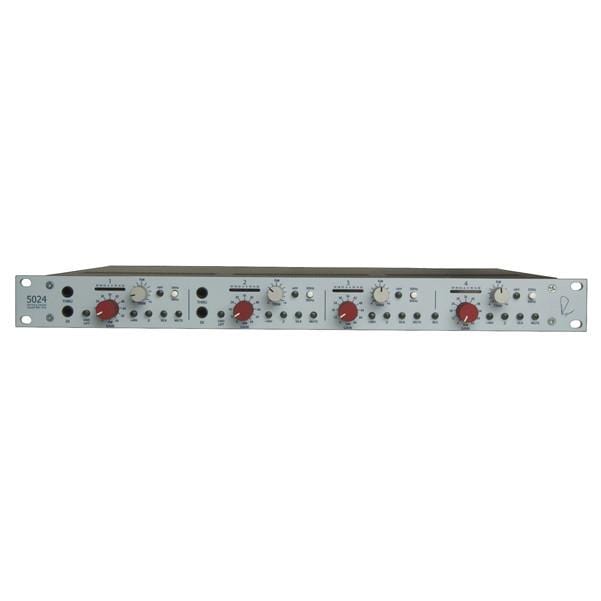

Rupert Neve Designs Portico 5024 Quad Microphone Preamp

Incorporating four channels of renowned preamplification, independent silk controls, two channels of DI inputs, and an M-S Decoder into a 1U enclosure, the 5024 is a workhorse equipped to enhance the front end performance of any digital or analogue recording system Each channel of the Portico 5024 is based around the custom transformers and class-A circuitry found in the best-selling 5012.

In addition to 72dB of gain, the 5024’s mic pres include individually selectable phase, mute, phantom power, a selectable frequency high pass filter, and the Silk circuit which yields the rich warmth and presence of the renowned classic designs Channels 1 & 2 of the 5024 feature a high-Z input designed for instrument level sources.

Channels 3 & 4 feature an M-S switch, which enables Mid-Side decoding without the use of multiple console channels Rupert Neve Designs Portico 5024 Features: Silk Much could be written about this feature, suffice to say, that it gives a subtle option to enhance sound quality in the direction of vintage modules.

The Silk button reduces negative feedback and adjusts the frequency spectrum to provide a very sweet and musical performance We suggest you try it and make your own judgment.

M-S The M-S button engages Mid-Side decoding on channels 3 & 4 Channel 3 level controls the mid signal, and channel 4 level controls the side signal.

Instrument Inputs Balanced or unbalanced Hi-Z input for instruments using the Mic Pre’s gain circuitry Level Meter -30 dBu to +22 dBu With reference to the output Mute Cuts of the output signal post metering and pre Buss Output.

Be sure to mute the outputs before engaging phantom power High Pass Filter The High pass filter is a valuable aid in any signal chain but particularly so in a microphone preamplifier.

Signals below 30 or 90 Hz can be attenuated at 12dB / Octave, leaving the range above this unaffected This gets rid of building rumble, air handling motor hum etc.

Phantom Power Provides 48V phantom power to microphones Rupert Neve Designs Portico 5024 Specifications: Mic Pre Frequency Response: Main Output, no load, –3 dB @ 2 Hz –3 dB @ 160 kHz Noise: Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 150 Ohms With gain at unity better than –92 dBu With gain at 66 dB better than –56 dBu Equivalent Input Noise better than –123 dBu Gain: Unity to +66dB in 6 dB steps, Trim continuously adjustable from –6dB to +6dB Line Input: Trim continuously adjustable from –6dB to +6dB Maximum Output Level: Maximum output from 20 Hz to 40 kHz is +25 dBu.

Phantom Power: 48 Volts DC +/- 1% Total Harmonic Distortion and Noise: @ 1kHz, +20 dBu output: Better than 0.002% As above, Silk Engaged: Better than 0.2% Second Harmonic @ 20Hz, +20 dBu out Better than 0.004% @ 20Hz, +20 dBu out Better than 0.020% IM Distortion: Better than 0.002% Slew rate Better than 4 V/uS High Pass Filter: Frequency: Selectable either 30Hz or 90Hz Slope: 12 dB/Octave Bessel Made in USA.
