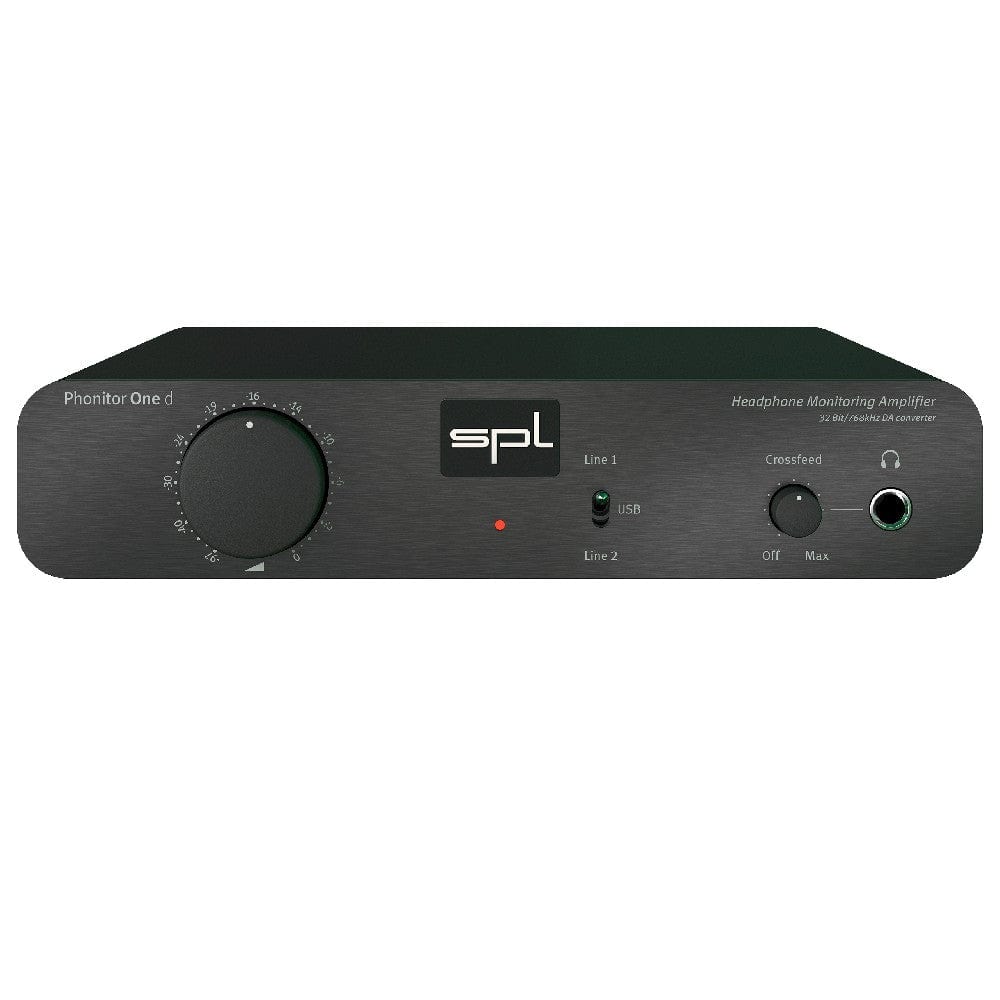

SPL Phonitor One d Audiophile Headphone Amplifier

SPL Phonitor One d Audiophile Headphone Amplifier Overview: with innovative Phonitor Matrix, 32-bit DA-converter and outstanding sound quality NUMBER ONE IN SOUND For us the sound is always in the foreground. When it sounds good, we like to listen. To get such a sound, you need experience and technical finesse. We have incorporated both into the Series One.

The Design Of The Amplification Stages The Preamplifier Stage Two Burr-Brown OPA 2134 SoundPlus operational amplifiers provide the pre-amplification. These are specially designed for audiophile circuits and are characterized by extremely low noise and minimal distortion of only 0.00008%. Thanks to a true FET stage, the OPA 2134 achieves a slew rate of 20V/µs, making it a high-speed operational amplifier.

This has an immediate positive effect on the liveliness of the playback. In addition, low capacitance film capacitors are installed in the signal path as bypass capacitors of the coupling capacitors, which ensures a more precise transmission of the high-frequency signal components. The excellent Panasonic ‘Electric Double Layer’ gold electrolytic capacitors are used as coupling capacitors. They offer the highest storage capacity of all capacitor technologies.
