MOTU LP32 Audio Interface

MOTU LP32 Audio Interface Overview: The LP32 is a flexible ADAT optical "lightpipe" audio interface, router, splitter, converter and mixer with AVB/TSN networking It is ideal for routing optical digital audio in live performance systems, network installations or recording studios of any size.

32 channels of ADAT "lightpipe" I/O The LP32 provides four independent banks of 8-channel ADAT optical I/O, 64 channels of USB I/O, 32 channels of AVB-TSN network I/O and a headphone output, for a total of 258 simultaneous I/O channels High-performance computer connectivity New, optimized drivers for both Mac and PC deliver ultra-low latency performance.

With a high-performance DAW such as Digital Performer, the LP32 delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer) A flexible digital converter, router, splitter and repeater Send any input to any output, or split to multiple output channels.

Convert any format to any other (Optical, AVB-TSN and USB) Includes routing to and from the computer, plus any devices on the AVB-TSN network.

DSP mixing and effects processing The LP32's 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including classic reverb, EQ modeled after British analog console EQs and compression modeled after the legendary LA-2A compressor If you know your way around a large-format mixing console, you'll feel right at home.

With 32-bit floating point processing, the LP32's DSP engine delivers virtually unlimited headroom and the utmost in sound quality Stand-alone operation with wireless control Connect an Apple Airport or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

Web app control The software that you use to control the LP32 doesn't reside on your hard drive It's a web app served from the hardware itself.

This means you can control the LP32's on-board DSP, mixing, and device settings from the web app software running in your favorite web browser on the computer, or even a tablet or smartphone on the same Wi-Fi network as your computer Comprehensive Metering The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O.

Access hardware settings from a simple and convenient menu Word Clock Standard word clock input and output allows you to resolve the LP32 to other digital audio gear or house sync.

Convenient headphone monitoring Use the assignable front-panel headphone output with volume control to monitor any stereo channel pair Mix and match with other MOTU gear An included mounting bracket kit joins the LP32 side-by-side with any other MOTU half-rack unit to create a single rack-space configuration consisting of customized analog, digital and/or MIDI I/O configuration tailored just for you.

Audio analysis tools Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "water- fall" display, full-featured oscillioscope, X-Y plot and phase analyzer AudioDesk Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering Features: 32 channels of ADAT optical “lightpipe” audio Four independent banks of 8-channel ADAT optical at 44.1 or 48 kHz or 4-channel SMUX (16 channels total) at 88.2 or 96 kHz.

Support for TOSLink Each optical input or output is individually switchable to stereo TOSLink (optical S/PDIF), regardless of the current sample rate setting (from 44.1 to 96 kHz) Flexible router, converter and splitter Send any input to any output, or split to multiple output channels.

Convert any format to any other (Optical, AVB-TSN and USB) Includes routing to and from the computer, plus any devices on the AVB-TSN network.

Stand-alone operation with wireless control Connect a standard Wi-Fi router with a standard Ethernet cable for wireless control of device settings, routing/splitting, powerful 48-channel mixing and DSP effects DSP mixing and effects processing Flexible 48-input digital mixer with 7 stereo aux busses, 3 stereo groups, access to 32 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression.

Ultra-low latency and proven, high-performance MOTU drivers Universal connectivity over high-speed USB 2.0 (3.0 and iOS compatible) and AVB Renowned drivers deliver industry-leading low latency and rock solid performance.

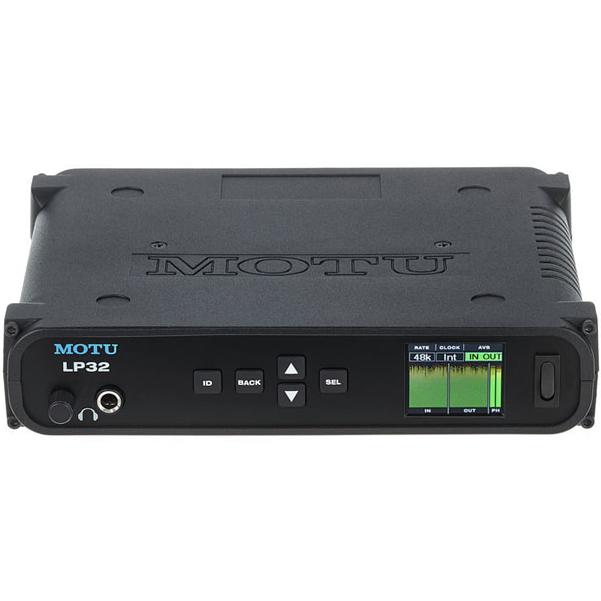

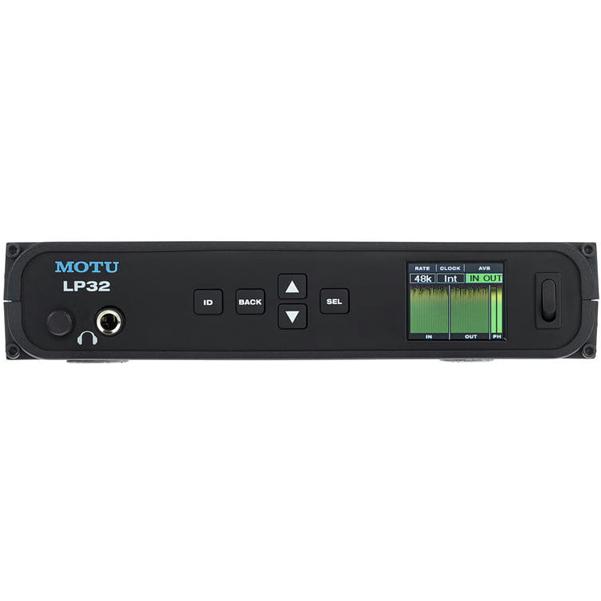

Comprehensive metering The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O Access hardware settings from a simple and convenient menu.

Convenient headphone monitoring Assignable front-panel headphone output with volume control allows for monitoring of any stereo channel pair Word clock I/O Standard word clock input and output for resolving to other digital audio gear or house sync.

32-bit floating point processing The LP32's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality Modeled vintage effects processing Classic reverb.

Compression modeled after the legendary LA-2A compressor EQ modeled after British analog console EQs.

Web app control from any device Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network System expansion Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable.

Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately) AVB-TSN audio networking Build a network with multiple interfaces and computers using standard AVB-TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point).

Stream hundreds of audio channels among devices and computers on the network Audio analysis tools Includes a full-screen real-time FFT display, spectrogram “waterfall” display, full-featured oscilloscope, X-Y plot and phase analyzer.

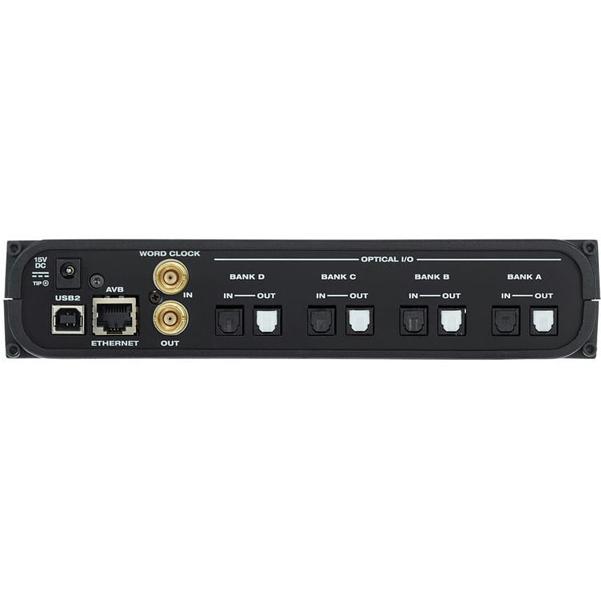

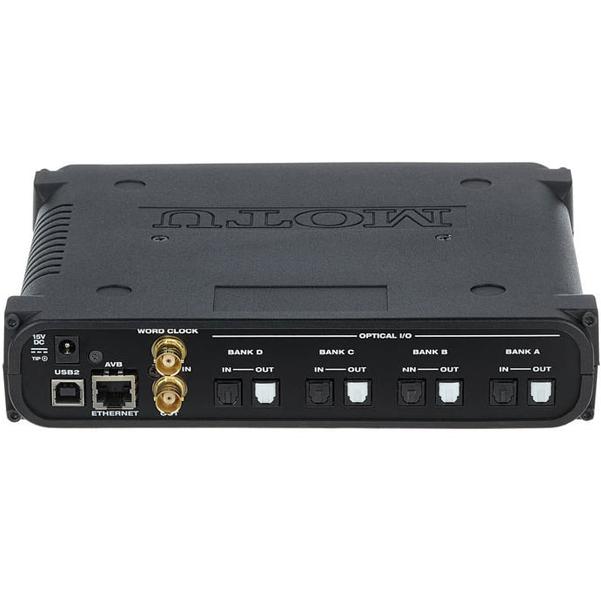

AudioDesk Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering Specifications: Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz Digital I/O: 4 banks of 8-ch ADAT optical at 1x sample rates 4 banks of 4-ch SMUX optical at 2x sample rates Individually switchable to stereo TOSLink (optical S/PDIF) Total I/O: 32 in / 32 out (64 total) at 1x sample rates 16 in / 16 out (32 total) at 2x sample rates n/a at 4x sample rates Computer I/O: 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible Computer I/O channels: 64 in/out at 1x (44.1 to 48 kHz) 32 in/out at 2x (88.2 to 96 kHz) 24 in/out at 4x (176.4 to 192 kHz) Headphone: 1 x 1/4" TRS stereo phone (assignable) Front pane\n Front panen \n Front panel: n 1 x 1/4" TRS headphone output 4x switches for menu navigation 160 x 128 RGB LCD for level meters / menu Power: External 12-18V DC power supply 1.0A max • tip pos or neg Dimensions and weight (width x depth x height, enclosure only) 8.6 x 7 x 1.75 inches 22 x 17.75 x 4.5 cm 2.0 lbs / 0.9 kg Mac System Requirements 1 GHz Intel-based Mac or faster 2 GB RAM; 4 GB or more recommended Mac OS X version 10.8 or later Available USB 2.0 or 3.0 port A large hard drive (at least 500 GB for recording) Windows System Requirements 1 GHz Pentium-based PC compatible or faster 2 GB RAM; 4 GB or more recommended Windows 7, 8 or 10 Available USB 2.0 or 3.0 port A large hard drive (at least 500 GB for recording) Web App Support Any web client platform: Mac, Windows, Linux, iOS, Android Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.

Included Software MOTU Discovery App for Mac & PC (finds connected MOTU interfaces) MOTU Discovery App for iOS (available from Apple App Store) MOTU Pro Audio Control web app (served from the hardware itself) MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer) AudioDesk 4.0 for Mac & PC (separate download) Operating Systems For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later For web app control: Mac, Windows, Linux, iOS, Android.
