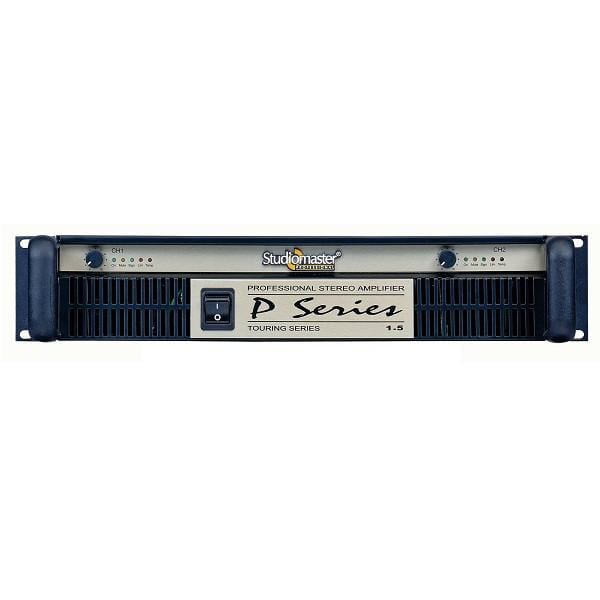

Studiomaster PA 1.5 Power Amplifier

Studiomaster PA 1.5 Power Amplifier P - Series The PA series are three high-power amplifiers built to have outstanding sound quality, excellent power efficiency, a compact yet rugged body and guaranteed operational reliability At the same time the PA series amplifiers have an exceptional economical viability! The PA series is now hybrid; which means it can run stable even on lower supply voltages.

Studiomaster PA 1.5 Features: Switchable Low-cut switch for protection & tight-low end performance 3 switchable operational modes: Stereo, Mono & Bridge.

Switchable Limiter Switch to protects speakers from damage due to distorted input signals Intelligent cooling using low-noise variable speed fans & direct mounted over-designed heat-sinks.

High quality glass epoxy, double-sided PTH PCB’s and high-grade components ensures reliability in even tough ambient environs Magnetic power switch for phase aligned switching, over current and thermal overload protection.

32-detent rotary volume knobs Mute, Signal, Clip and fault LED indicators assists you to monitor performance.

Input: Balanced XLR and 1/4” Stereo Jack Output: Neutrik™ Speakon for easy yet ’trip-proof’ connections.

Sensitivity (0dB or+4 dB) selection switch allows flexibility in connection of input sources Quick clean filters for fans.

High-current toroidal transformers with high-grade cores for greater transient response & low-noise even at 2 Ohms Independent DC, RFI, short circuit and thermal overload protection for amplifier and speakers protection.

Studiomaster PA 1.5 Specifications: Power Output-Stereo (RMS) 2 ohms : 2 x 800 W 4 ohms : 2 x 650 W 8 ohms : 2 x 350 W Bridged (RMS) 4 ohms : 1600 W 8 ohms : 1300 W Single Channel Driven (RMS) 2 ohms : 900 W 4 ohms : 750 W 8 ohms : 380 W Frequency Response : 20 Hz-20kHz ( -3dB ) Damping Factor : >200:1 (8 Ohms) Protection Devices : Temperature, DC RFI Short Circuit, Soft-Start, Thermal Power Transformer Input Connector (Per Channel) : XLR, Jack Stereo 6.3mm Output Connector (Per Channel) : Speakon Connector Made in China.
