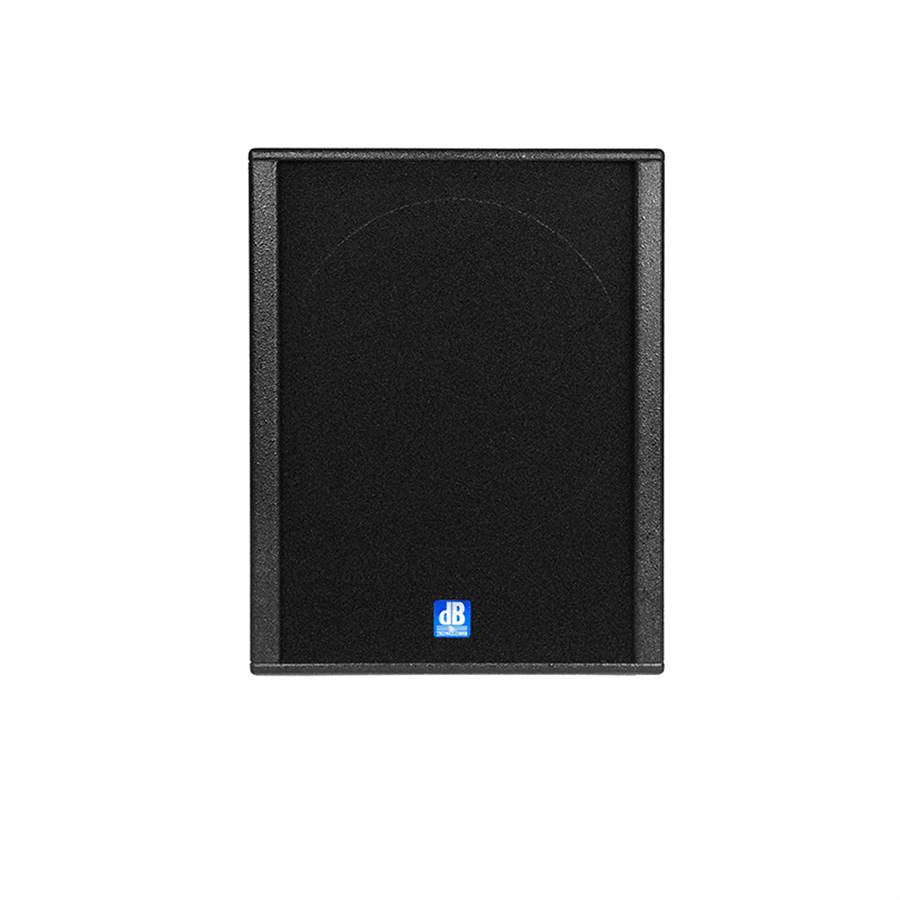

dB Technologies Arena SW 18

The 4“ voice coil of the ARENA SW18 delivers powerful and accurate low frequency reproduction, down to 35Hz, at a maximum load of 1200 Watt. Sound pressure levels of up to 132dB at a crossover frequency of 150Hz, using the internal crossover make this subwoofer the professionals choice. This woofer can be easily combined with the ARENA satellite units, using just one external power amp.

Technical Specifications: Speaker Type : Passive Subwoofer Acoustical data : Nominal Power Rating : 600 W/RMS Program Power Rating : 1200 W Impedance : 8 Ohms Frequency Response [+/- 3dB] : 35 - 150 Hz Max SPL : 132 dB LF : 18 “ Voice Coil LF : 4 “ Internal Crossover : YES Crossover Frequency (passive) : 150 Hz Amplifier Processor Input : Signal Input : 1x Speakon (Pin 1+=+) (Pin 1-=-) Signal Output : 1x Speakon (Pin 1+=+) (Pin 1-=-) Mechanics : Housing : Multiplex birch plywood Width : 565 mm (22.6 in) Height : 700 mm (28 in) Depth : 700 mm (28 in) Weight : 44 kg (97 lbs)
