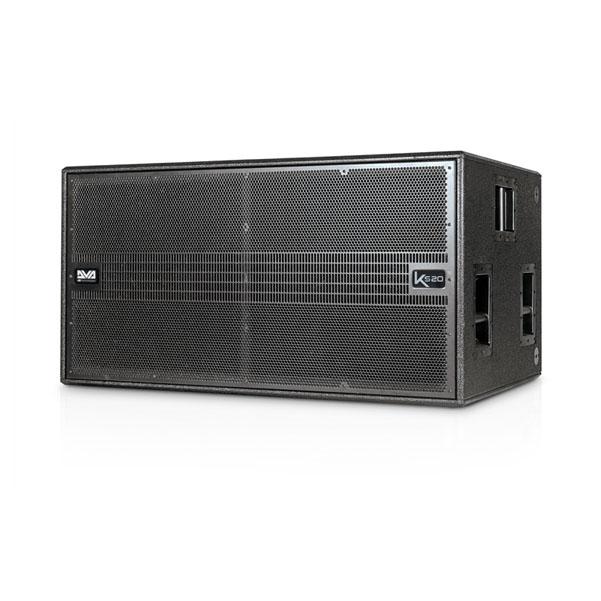

DB Technologies DVA KS20 PA Subwoofer

Overview Featuring a double 18" woofer pairing in a bass reflex housing, the DVA KS20 is equipped with 2x Digipro G3 Power Amplifiers delivering 4000 W Peak The system's internal design brings together the benefits of bass reflex and horn- loaded systems in a compact, sturdy housing covered with robust black laquer.

The 56 Bit DSP manages limiters and delays for flawless system processing DVA KS20 is the perfect low-end complement for larger DVA K5 systems and can be used vertically in groundstacked configurations thanks to the DRK-20/10 pickpoints on top.

Specifications: Technical Data Speaker Type : Active Bassreflex-Horn loaded Subwoofer Acoustical data Frequency Response [- 10 dB] : 41 Hz - 120 Hz Max SPL : 138 dB Directivity : Omnidirectional LF : 2x18 " Voice Coil LF : 4 " Amplifier Amp Technology : Digipro® G3 Amp Class : Class D RMS Power : 1800 W Peak Power : 3600 W Cooling : Convection Power Supply : 1800 W SMPS with auto range PSU Processor Controller : DSP 56 Bit AD/DA Converter : 24 Bit /48 Hz System Presets : X-Over, Delay Limiter : Dual Active Multiband RMS, Peak, Thermal Crossover Frequency LF-HF : 90, 120 Hz (selectable) Slope LF-HF : 24 dB/Octave Input Input Selection : 2x XLR Balanced Output Selection : 2x XLR Balanced Power Socket : 1x PowerCON in + 1x PowerCON Out Controls : 1 x Input Sensitivity Rotary Switch 1 x Setup Rotary Encoder (delay up to 4.5 ms on-board) 1 x Polarity Inversion Switch 1 x X-over Frequency Switch (90 Hz, 120 Hz) 1 x Output mode Switch (Link- X-Over) Mechanics Housing : Plywood Handles : 3x Per Side Rigging Points : 2xPick Points on top to fix DRK10/20 rigging frames Pole Mount : 1 xM20 on top Width : 1100 mm (43.31 in) Height : 580 mm (22.83 in) Depth : 720 mm (28.53 in) Weight : 84 kg (185.19 lbs).
