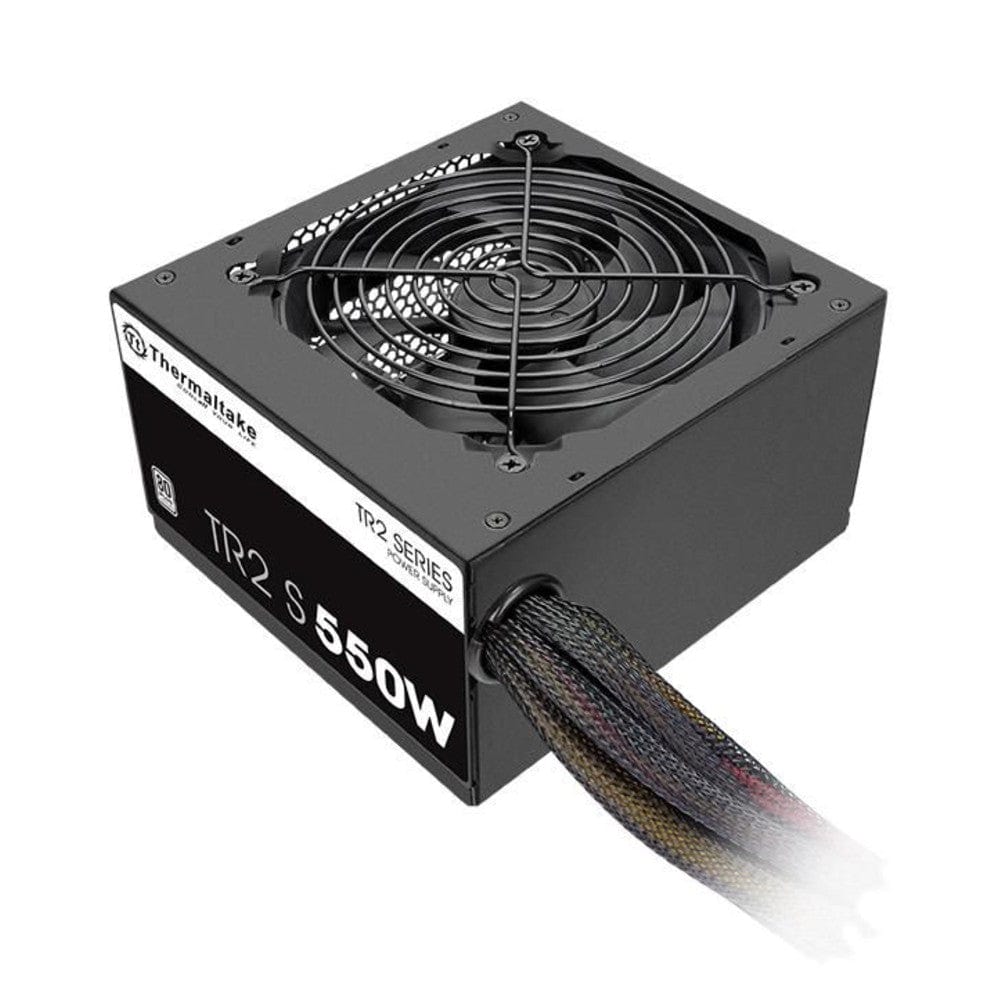

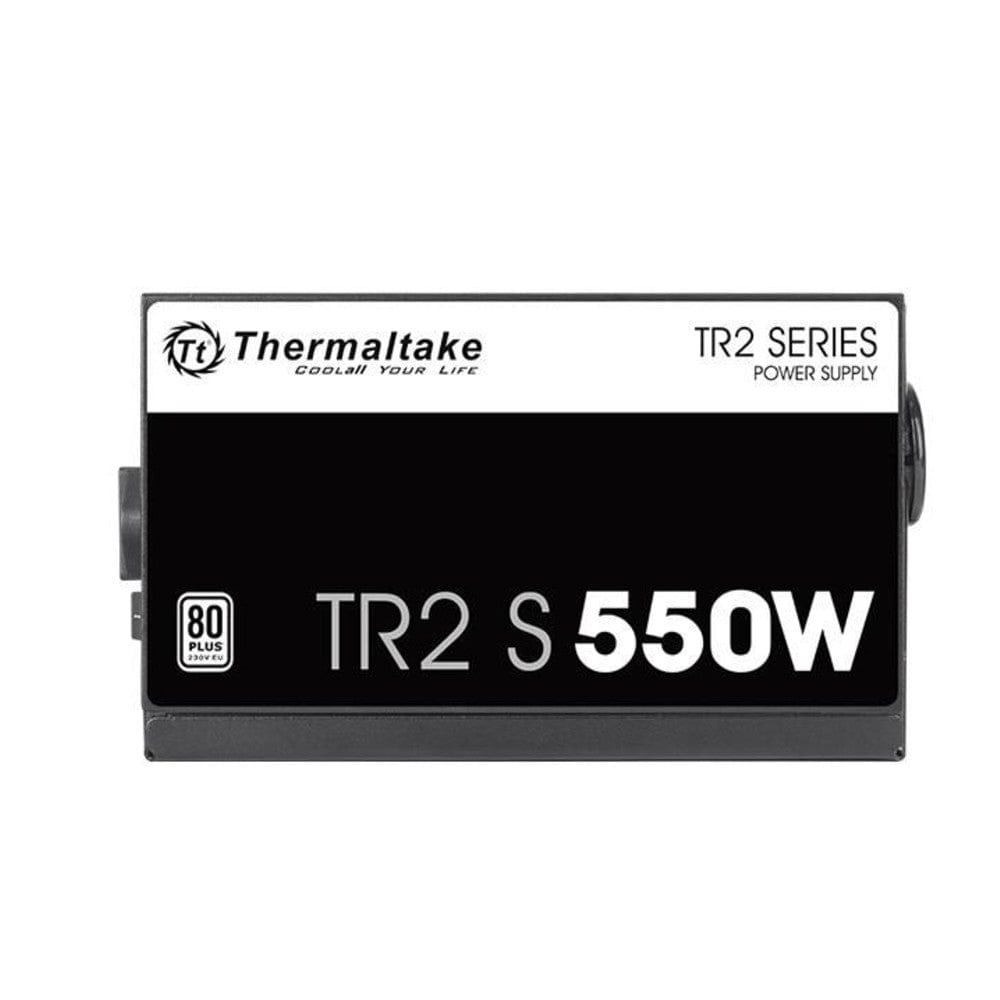

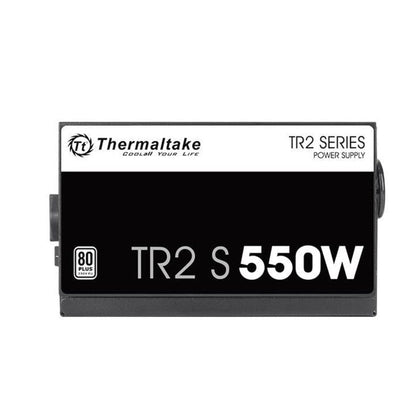

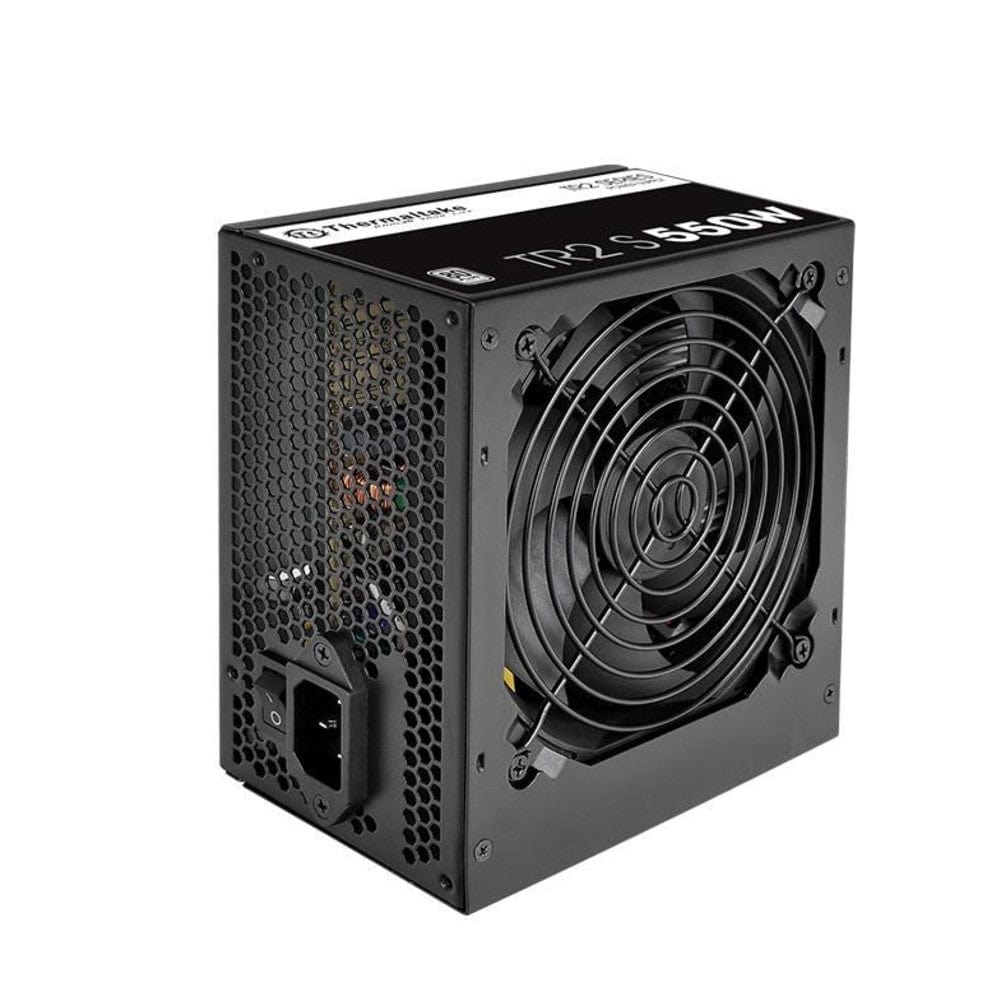

ThermalTake TR2 S Series Power Supply- Black - 550W

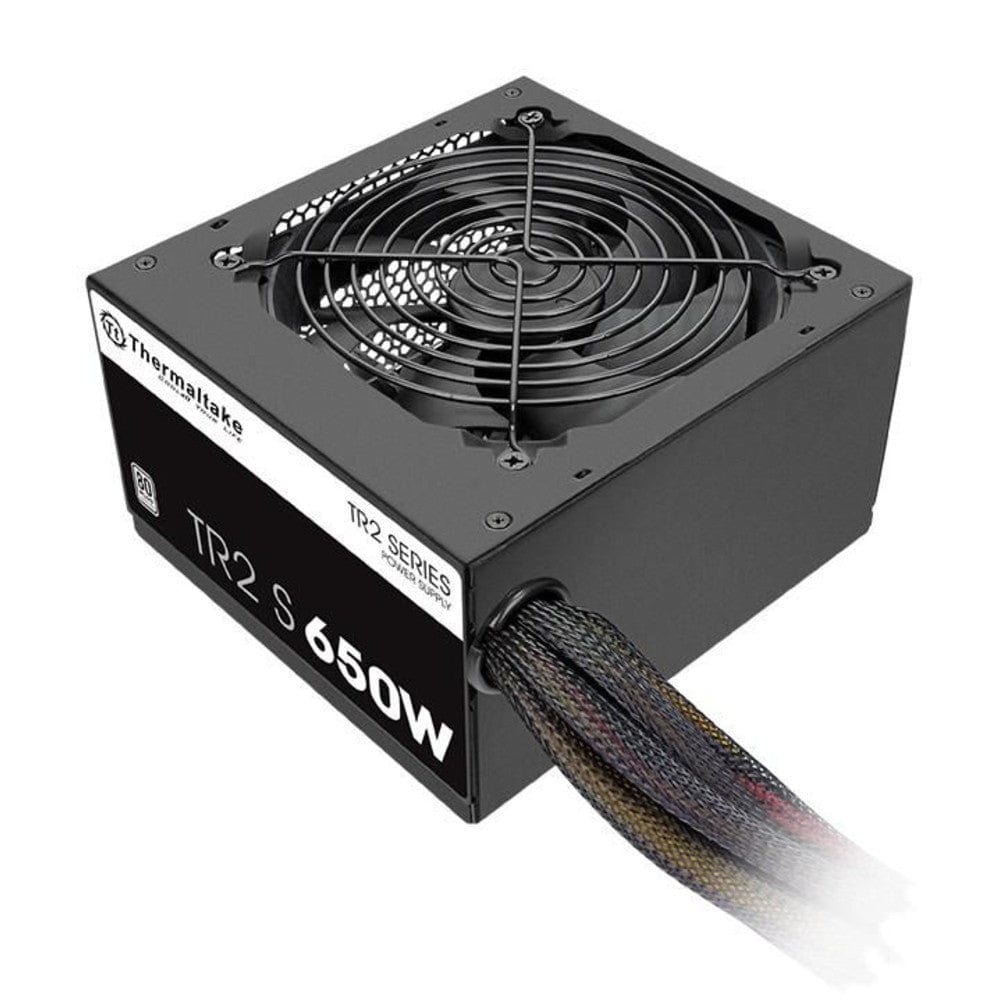

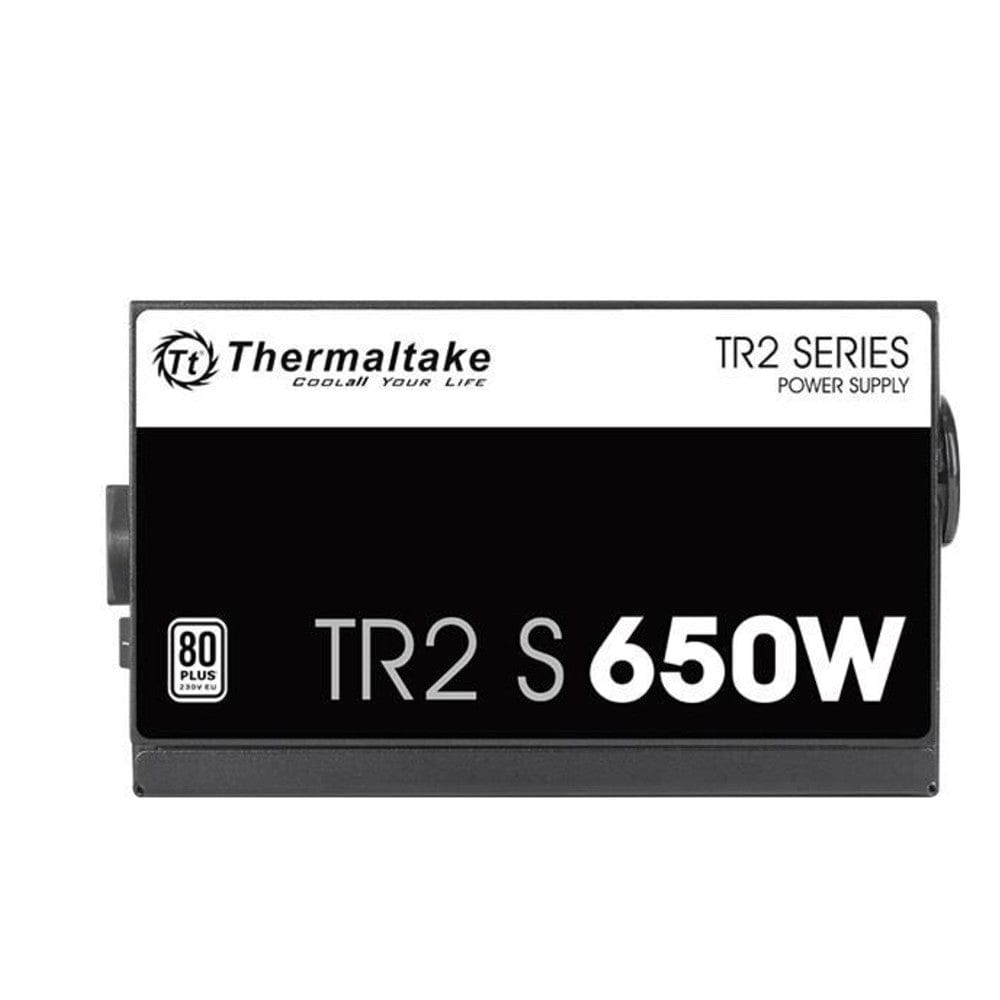

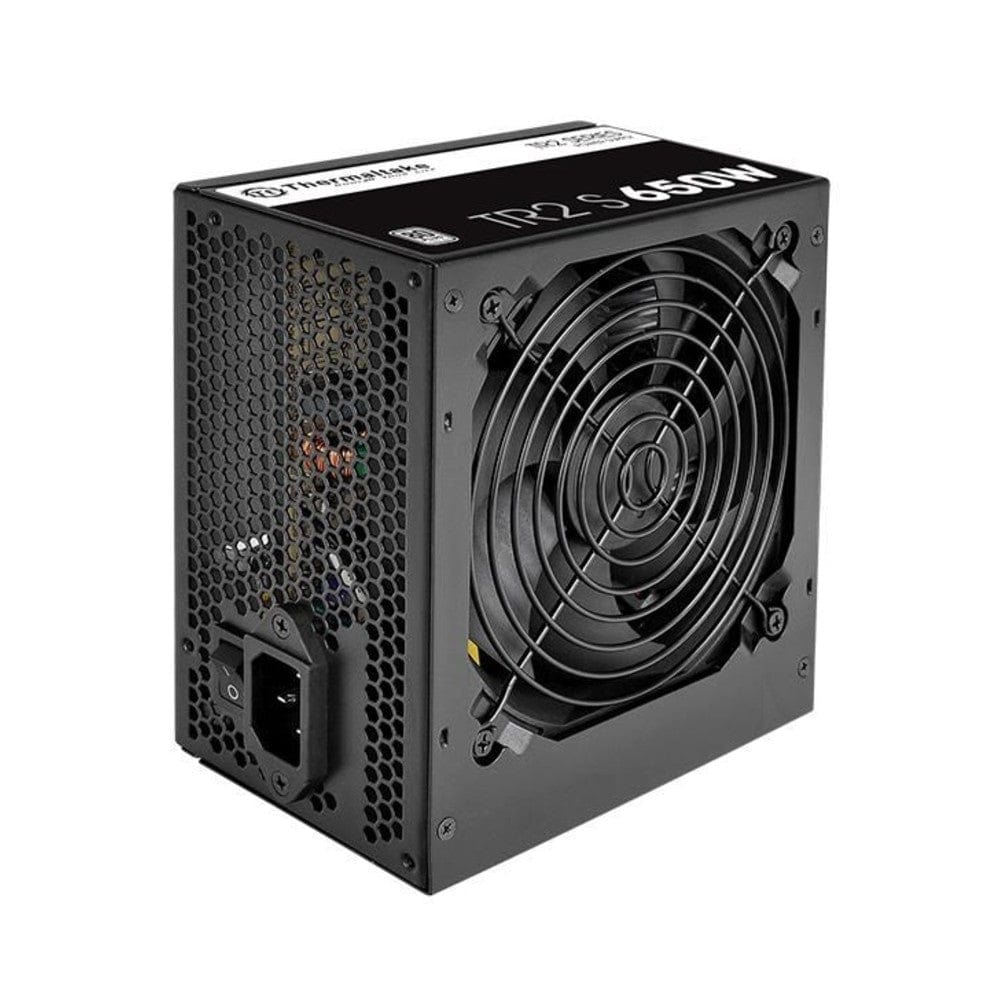

ThermalTake TR2 S Series Power Supply- Black Overview: FOR 550W: TR2 S Series TRS-0550P-2 – 550W 80 PLUS® 230V Standard Certified APFC PSU FOR 650W: TR2 S Series TRS-0650P-2 – 650W 80 PLUS® 230V Standard Certified APFC PSU Thermaltake TR2 S Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level.

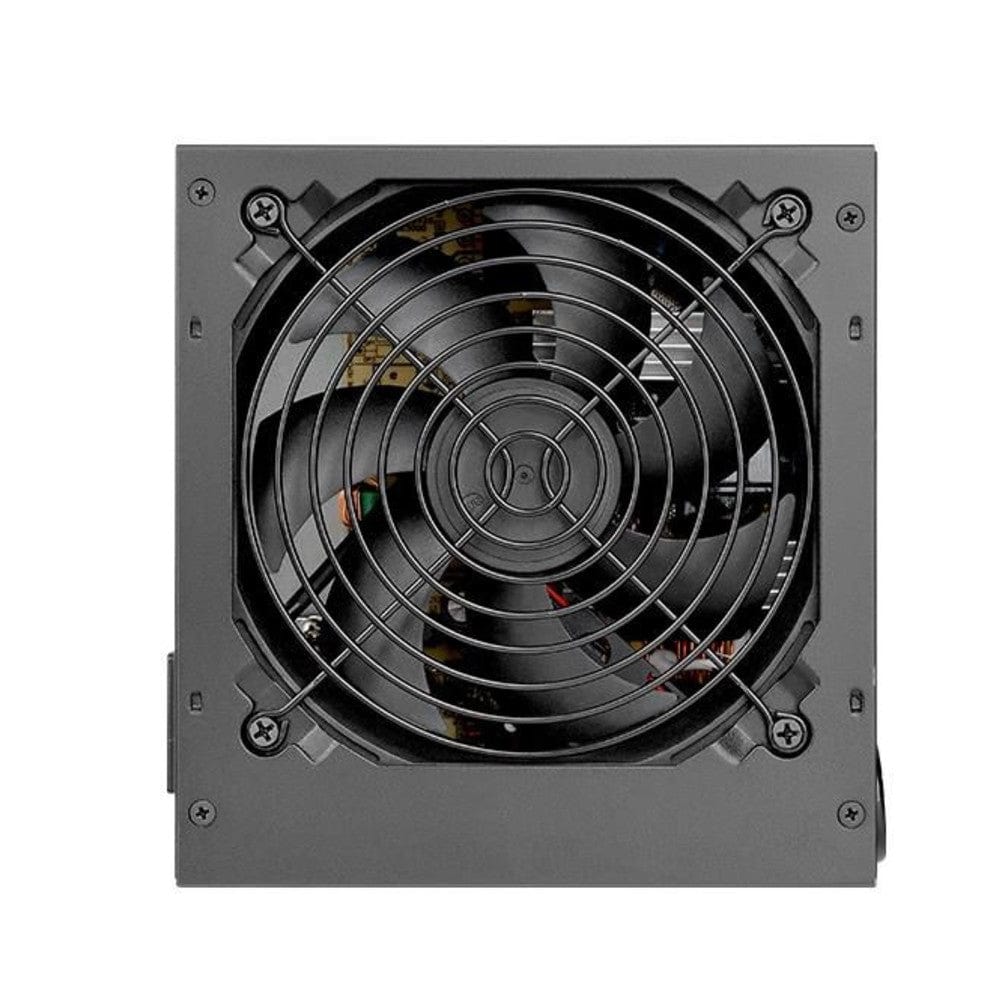

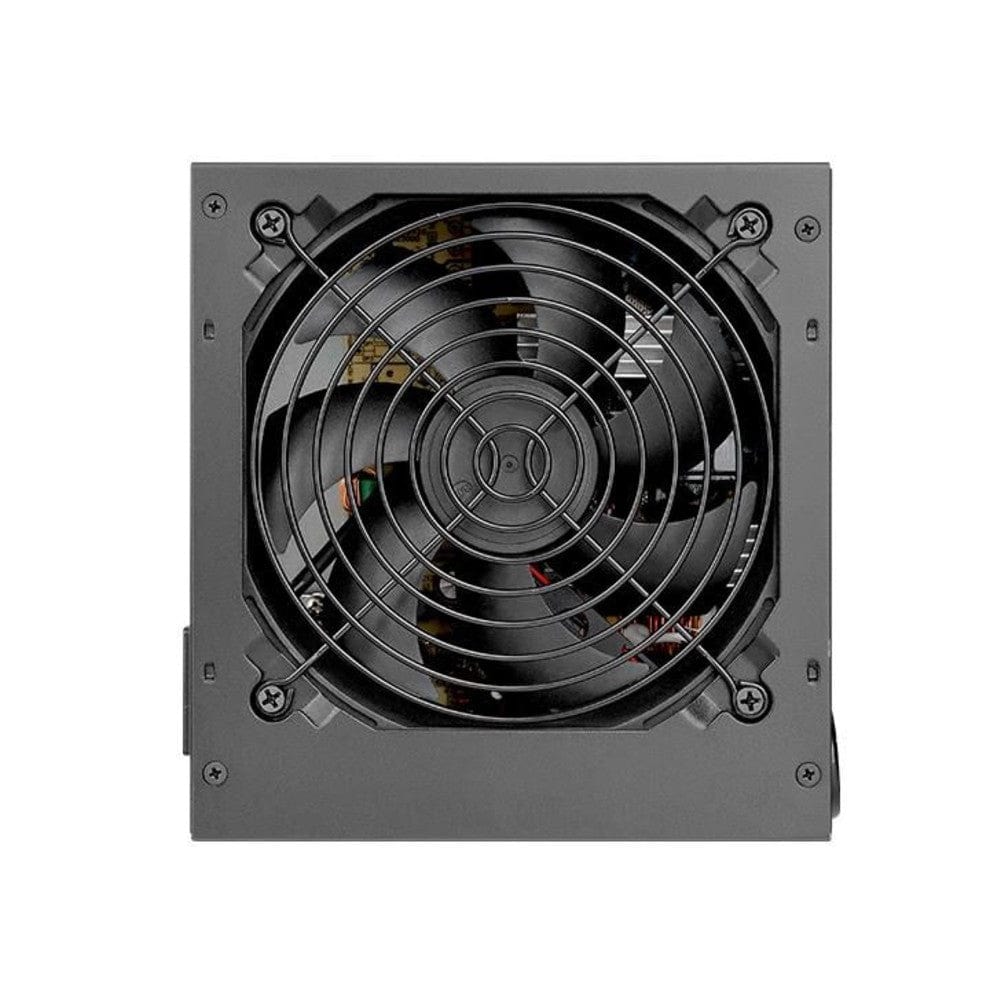

Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance Ultra Quiet 120mm Fan TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

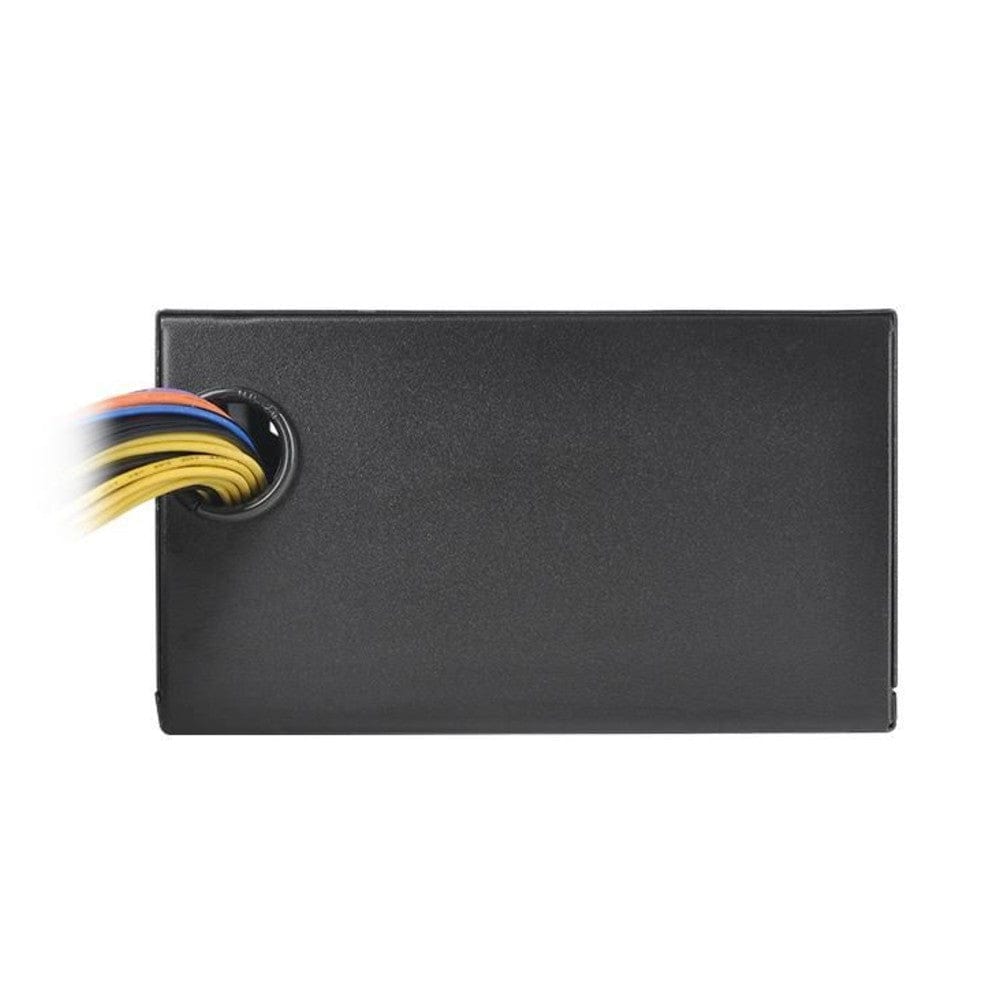

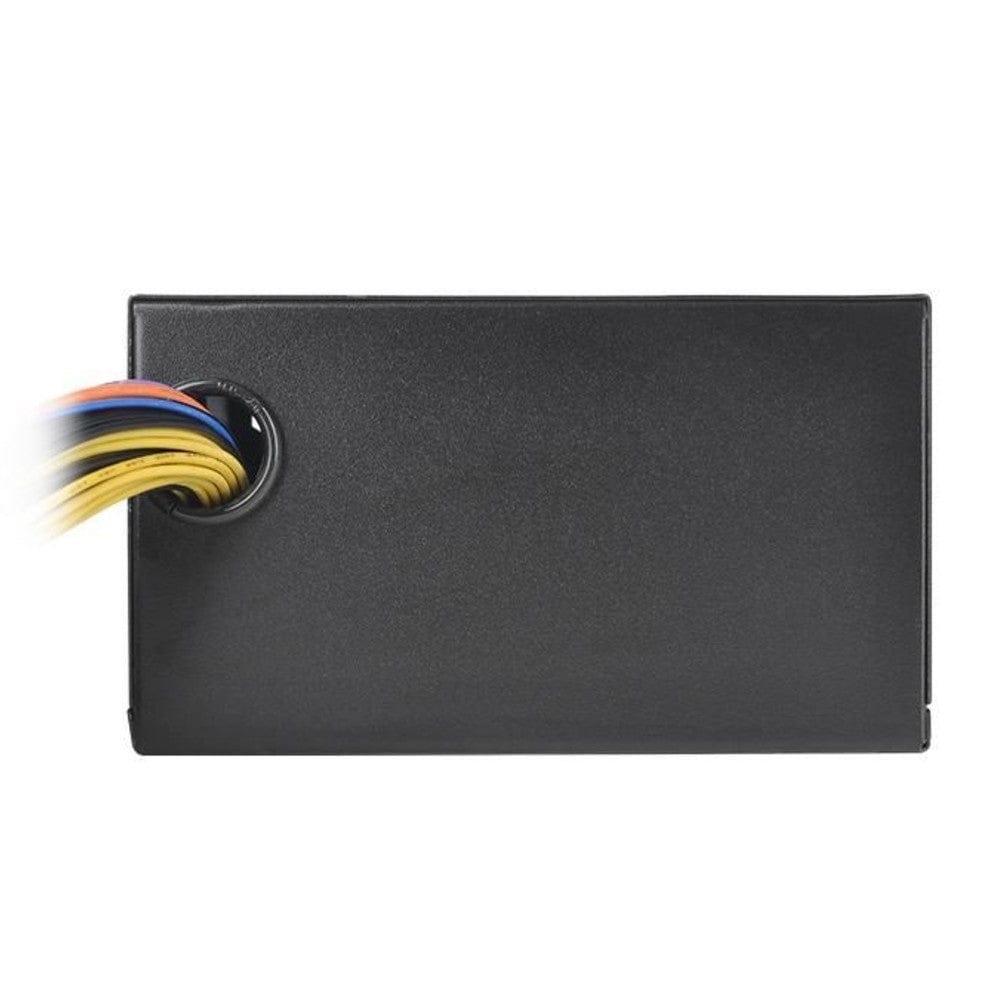

Multiple Connectors The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage 80 PLUS 230V Standard Certified and Kaby Lake-Ready TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified.

Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings 82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading SPECIFICATIONS: P/N: PS-TRS-0550NPCW**-2 &  PS-TRS-0650NPCW**-2 WATTS: 550W & 650W VENTOLE RGB: No FATTORE FORMA: ATX MODEL: TRS-550AH2NK & TRS-650AH2NK TIPO: Intel ATX 12V 2.3 MAX.

OUTPUT CAPACITY: 550W COLOR: Black PFC (POWER FACTOR CORRECTION): Active PFC POWER GOOD SIGNAL: 100-500 msec HOLD UP TIME: 16msec (minimum) within 60% load INPUT CURRENT: 7A max INPUT FREQUENCY RANGE: 50 Hz - 60 Hz INPUT VOLTAGE: 230 Vac OPERATING TEMPERATURE: 5℃ to +40℃ OPERATING HUMIDITY: 20% to 85%,non-condensing STORAGE TEMPERATURE: -40 ℃ to +55 ℃ STORAGE HUMIDITY: 10% to 95%, non-condensing COOLING SYSTEM: 120mm Fan: 1800 R.P.M ± 10% EFFICIENCY: 82-86% efficiency @ 20-100% load MTBF: 100,000 hrs minimum SAFETY APPROVAL: CE/CB/TUV PCI-E 6+2PIN: PCI-E 6+2pin x 2 Made in China.
