Radial PowerStrip 3-Slot Power Rack

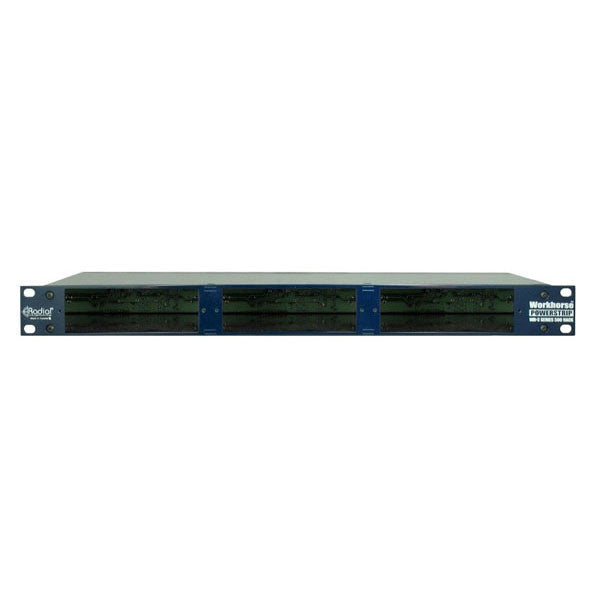

Radial PowerStrip 3-Slot Power Rack _x005F The PowerStrip is a three module rackmount power supply designed to bring the fun and excitement of 500 series modular audio to everyone! _x005F Unlike other single space power racks that are limited to two modules, the innovative triple-module design allows you to put together a traditional channel strip, combining a mic preamp with an equalizer and dynamic control using a compressor-limiter all within the confines of a single RU 19" rack With so many choices of modules available today, this opens the door to creating unique signal paths to allow your music to stand out.

_x005F Following the criteria established by the Radial Workhorse, the PowerStrip is 100% backwards compatible with older API modules while being optimized for Radial's expanding range of preamps, processors and routing devices Construction begins with 14 gauge steel and features dual gold contact EDAC 15-pin connectors for optimal signal transfer.

To maximize headroom, the external supply delivers 500mA of current for voltage hungry modules plus a separate 48V phantom tap delivers 10mA of current for microphone preamps Rear panel connectivity includes standard XLRs for each slot along with ¼" TRS connectors for multing modules, cross patching and parallel processing.

Instead of the traditional 'hardwire patch' system employed by others, The PowerStrip employs an innovative feed function that patches modules together in series without the need of cables And stereo modules no longer need to be soldered to be paired, they can now be sync'd together using a simple switch.

The PowerStrip is also equipped with Omniport on each sot This TRS jack enables the module manufacturer to implement a unique function for a given module such as a key input on a gate.

_x005F Radial PowerStrip Features: _x005F Omniport: Yes _x005F Feed switch: Yes _x005F Stereo link: Yes _x005F 48V phantom power: Yes on all channels _x005F Radial PowerStrip Specifications: _x005F Circuit type: Connection buss from modules to connectors _x005F Format: 19" rack mount, 1 rack space _x005F Number of slots: 3 _x005F Input connectors: 3 balanced XLR male, 3 ¼" TRS _x005F Output connectors: 3 balanced XLR female, 3 ¼" TRS _x005F Compatibility: Adheres to the Whos-Doc and VPR Alliance _x005F Available current: 500 milliamps _x005F Average current: 166 mA per slot _x005F Card slot impedance: Module dependent _x005F Ground connections: Chassis _x005F XLR pin wiring: AES standard: pin-1 ground, pin-2 (+), pin-3 (-) _x005F Power supply: External 100V - 240V AC with 48V Phantom _x005F PSU Connection: Locking 5 pin XLR female on cable.

_x005F Specifications are subject to change without notice.
