Studiomaster DX400 400W Slimline Stereo Power Amplifier

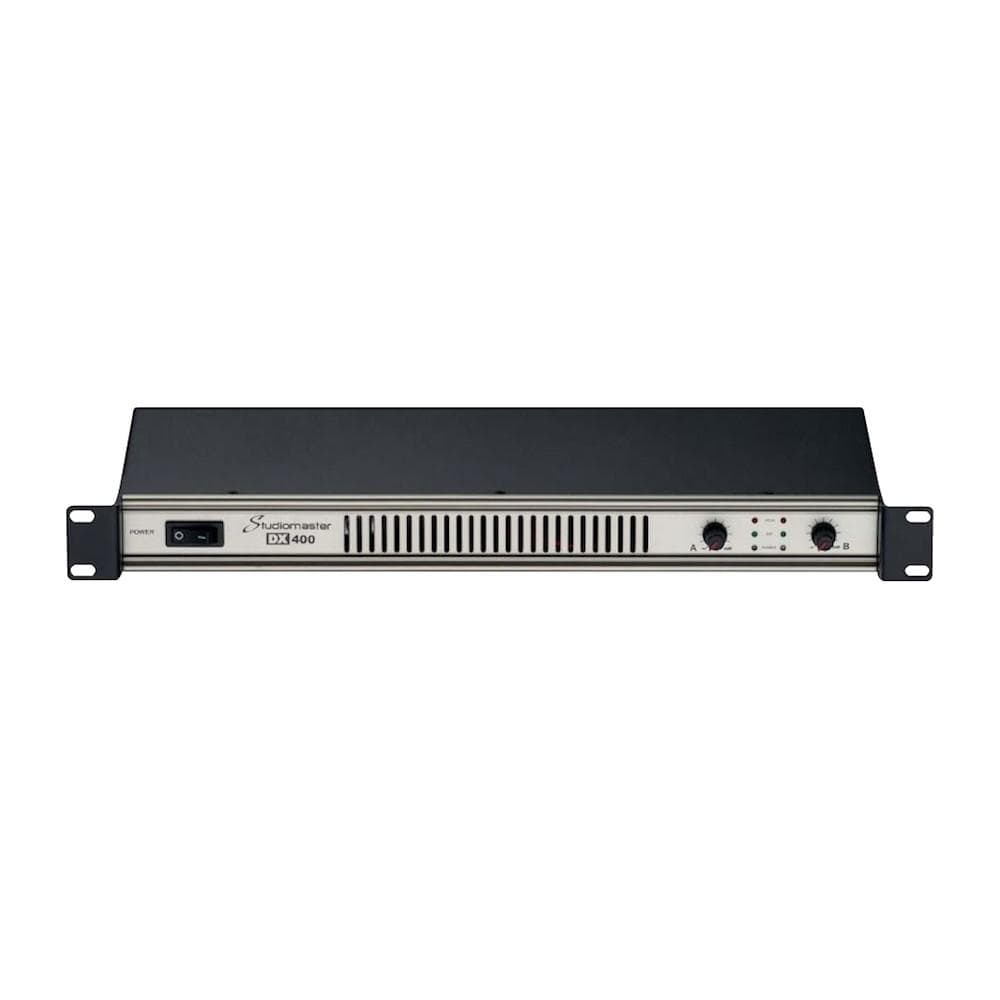

Studiomaster DX400 400W Slimline Stereo Power Amplifier Overview: The DX is a robust, one rack space amplifier suitable for the smaller PA system and studio monitoring The steel enclosure houses the reliable bi-polar amplifiers that are cooled by twin variable speed fans.

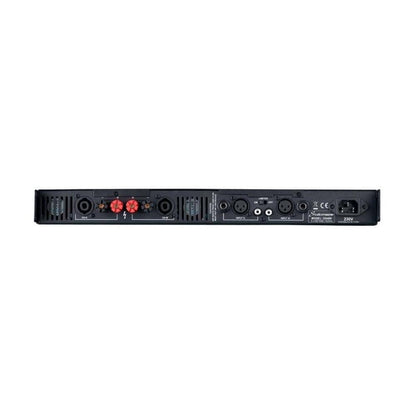

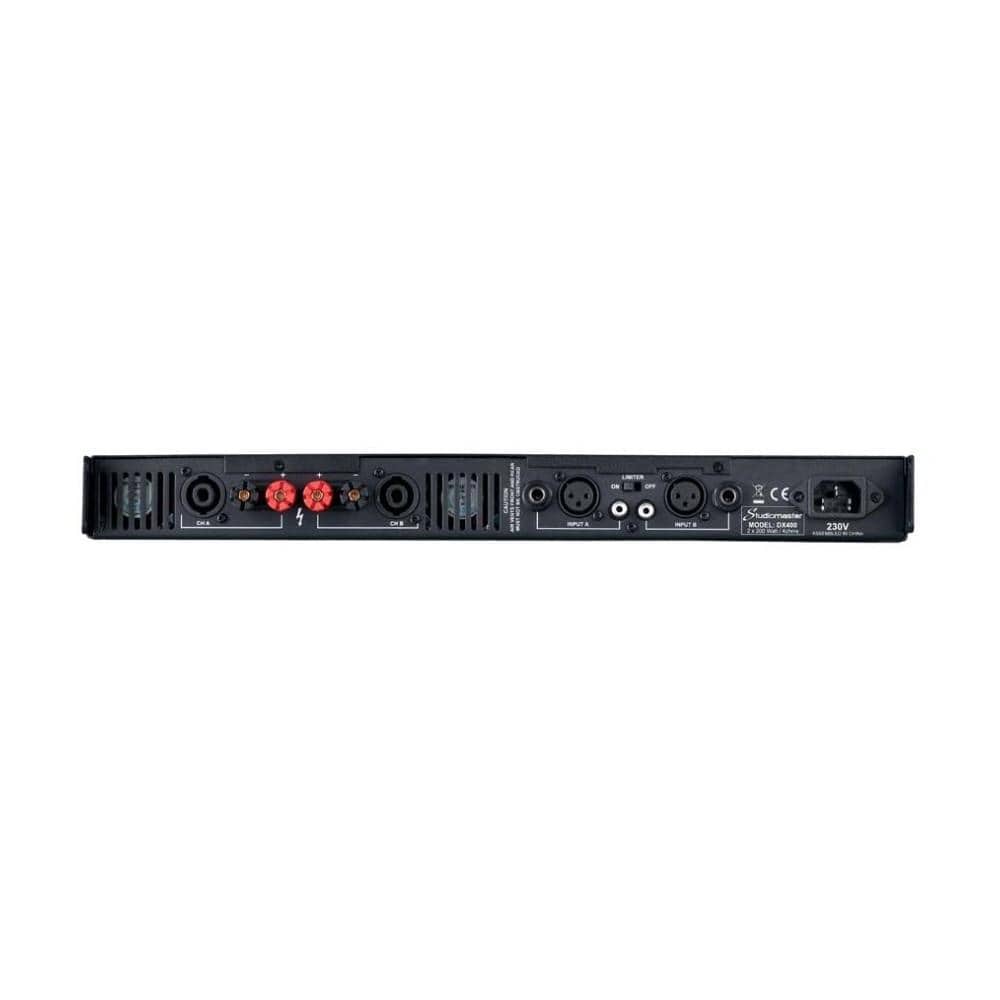

Signal inputs are via XLR, Jack and RCA phono connectors whilst the outputs have binding posts and industry standard 4 pole connectors Signal status employs SIG and cCLIP LEDs and volume is controlled by individual level controls.

Its small size and low weight make it a great full range amplifier that sounds great both for live PA and for studio monitoring As well as Hi pass filters, stereo crossovers and twin cooling fans, their biggest asset is their sound.

For three decades, Studiomaster has been building superb amplifiers What has always set them apart from the others is their exceptional sound quality.

The AX continues this tradition… you can concentrate on the performance, with no need to worry about the amps! The AX amplifiers are perfect for stereo or bridged mono application and with the on board two way crossover, will suit virtually any application The crossover frequency can be set at either 100Hz or 150Hz.

Each channel can be assigned to the high or low frequency signal The output from each crossover is also available on 1/4″ jack sockets to connect more amplifiers.

Features: Compact and lightweight Small size 1U rack space XLR, Jack and Phono inputs Switchable limiter Specifications: Input Sensitivity: XLR/Jack: 0dBu, RCA: 6dBu Input Impedance: 10k ohm Balanced 20k ohm Unbalanced Frequency Response: 5Hz – 20kHz (+0/-1dB) Voltage Gain:31dB Distortion: 1kHz 0.01% Signal to Noise Ratio: 95dB Damping Factor: 150 Cooling: Twin variable speed fans, back to front airflow Protection: D.C short/open circuit, thermal Status LEDs: Power, Signal, Peak Input Connections: XLR, Jack, RCA Phono output Connections: 4 pole industry standard sockets, Binding posts Power Requirements: 220-240V ~ 50/60Hz Per Channel @ 8ohms RMS: 120watts Per Channel @ 4ohms RMS: 200watts Dimensions: 482mm x 44mm x 375mm Weight (net/shipping): 10.2kg / 13.1kg Made in China.
