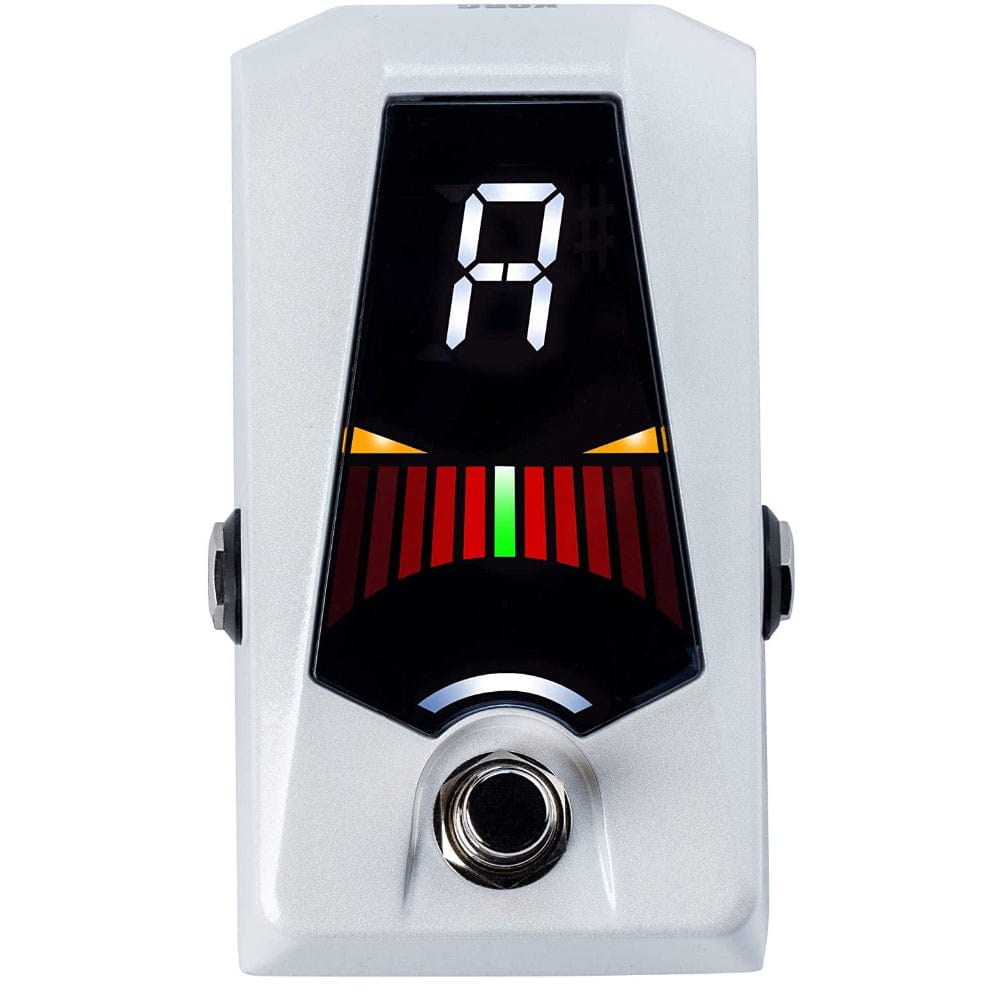

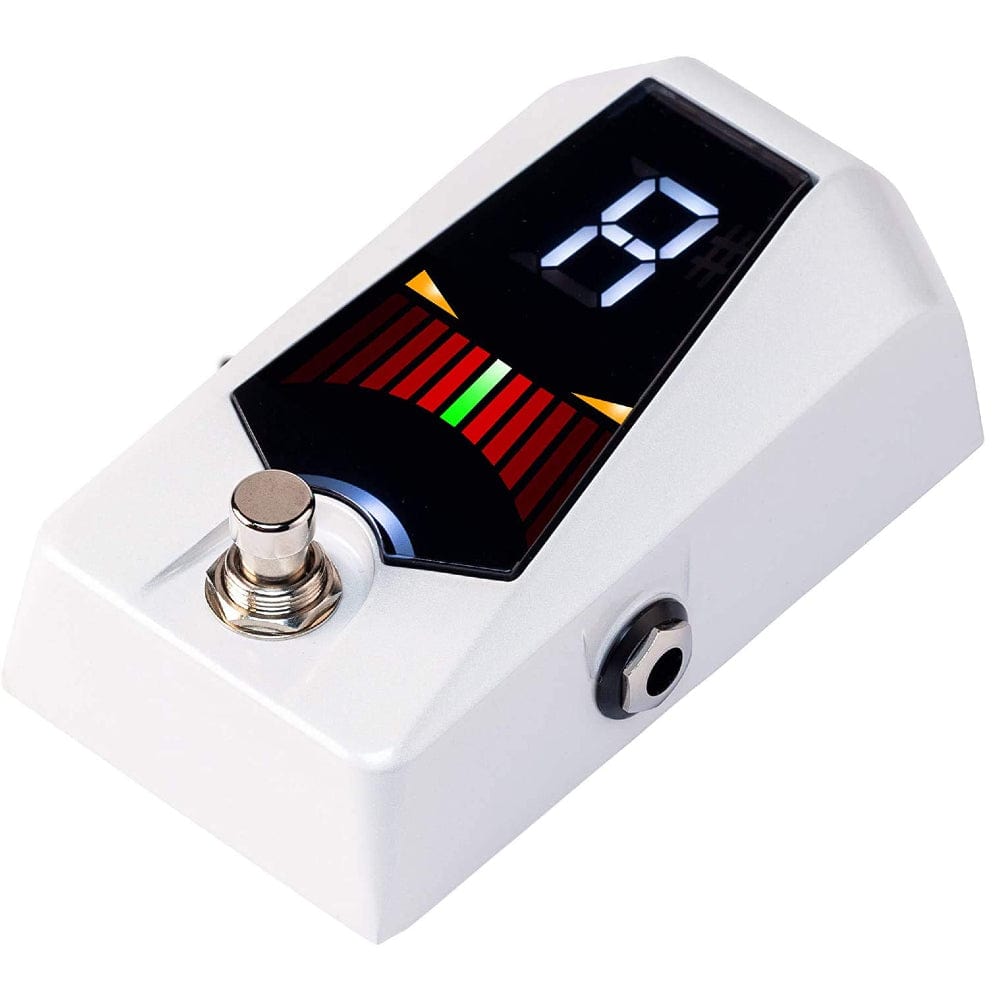

Korg PBAD Pitchblack Advance Pedal Tuner White

Korg PBAD Pitchblack Advance Pedal Tuner White An evolution of the best-selling Pitchblack tuner The ultimate pedal tuner, meeting the needs of every guitarist.

As the clear standard in pedal tuners for the guitarist or bassist, the Pitchblack is loved by professionals and amateurs around the world The Pitchblack Advance is the next-generation model, a further evolution that features an advanced cutting-edge form and many of the functions and technologies developed for previous models of the Pitchblack series.

Embracing both the traditional and the revolutionary, it represents the perfect summation of pedal tuners Cutting-edge design, with a superbly visible display Featuring a slanted design that hints at a new age, the Pitchblack Advance retains the toughness that is characteristic of the series, in spite of becoming even lighter in weight.

The display features high-brightness color LEDs, nearly doubling the size of the note name display and providing amazing visibility Whether you're on a dimly lit stage or outdoors in bright sunlight, this display will always be easy to read.

Ultra-high tuning accuracy of +/- 0.1 cents When using strobe mode, the Pitchblack Advance allows ultra-high-precision tuning with ±0.1 cent accuracy It's a great choice for exacting situations where even slight errors cannot be tolerated, such as in professional recordings or stage performances.

Four meter display modes Choose from four meter display modes to suit your playing style In addition to the standard “Regular mode,” you can use “Strobe mode” or “Half-strobe mode” in which the direction and speed of meter movement indicate the pitch change for easy visualization of even minute differences, as well as “Mirror mode” in which two LEDs move from left and right to coincide in the center as you tune.

True bypass has absolutely no effect on the sound The true bypass design allows the input sound to be output with absolutely no change (when the tuner is off) In other words, the tuner circuit does not change, degrade, or color your sound in any way.

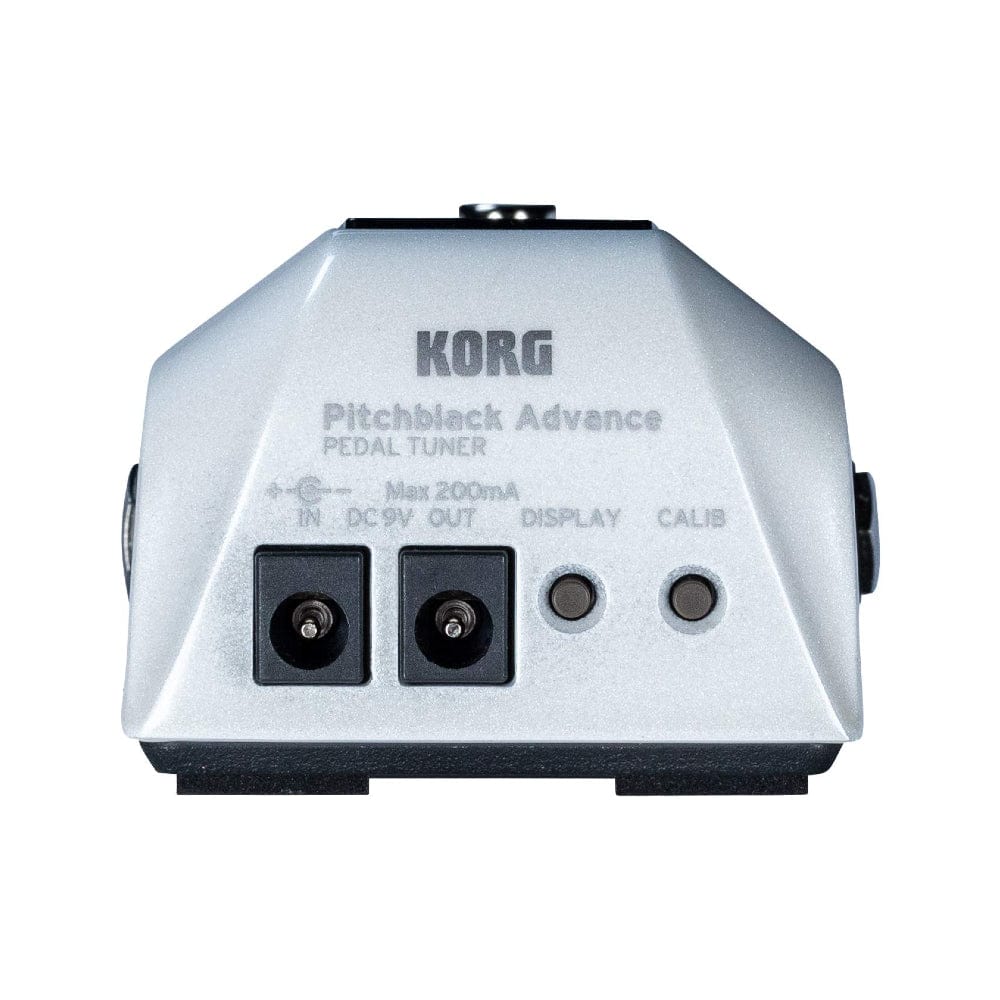

Since the input sound is completely muted when the tuner is on, this unit is ideal for use on stage DC out allows parallel connection for powering other pedals If a separately sold AC adaptor is used, the DC OUT jack can supply power to another effect unit Since a dedicated power supply circuit is provided for DC OUT, it can provide stable and noiseless 9V 200 mA power.

Completely eliminates noise caused by using a power supply The Pitchblack Advance provides a stable playing environment for all players When using a power supply, for example, noise can be caused by interference between different pedals using the same power supply.

The Pitchblack Advance is equipped with a circuit that suppresses sudden changes in current, and also applies software control, thereby completely avoiding the occurrence of such noise Specifications: Scale: 12 note equal temperament Detection Range: E0 (20.60 Hz) – C8 (4186 Hz) Calibration Range: A4 = 436 – 445 Hz (1 Hz steps) Detection Accuracy:+/- 0.1 cent Input Impedance:1 M-ohm (tuner on) Display Modes: Regular, Strobe, Half-strobe, Mirror Connectors: INPUT (mono 1/4” jack), BYPASS (mono 1/4” jack), DC 9V IN, DC 9V OUT Power Supply: 9V type battery (6F22/6LR61) x 1 or AC adaptor (9V)(Sold Separately) Current Consumption: Maximum 20 mA Dimensions (W x D x H): 68 x 111 x 47 mm / 2.68” x 4.37” x 1.85” (including rubber feet) Weight: 257 g / 9.07 oz.

(including battery) Made in China.
