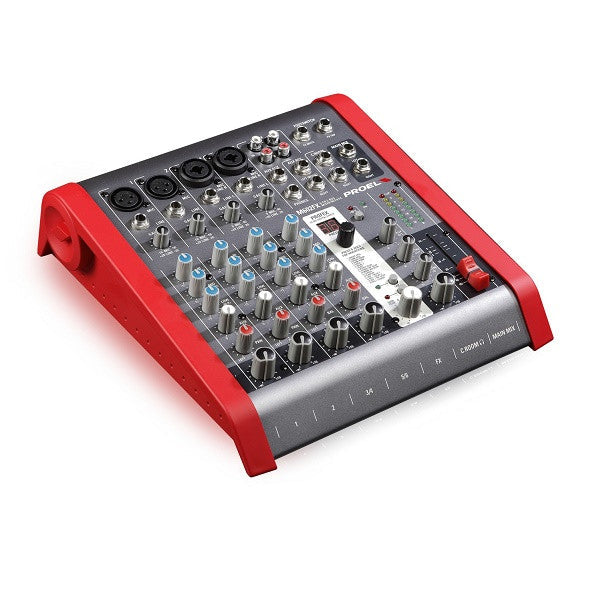

Proel M602FX Compact 6-Channel 2-Bus Mixer

After providing for years thousands of satisfied users with the best mixing tools, Proel have decided to renovate their M Series with an assortment of novelties The new M compact mixers have been updated with improved features and repacked into a new stylish package.

While keeping the superior audio quality, the full set of features and the highest number of MIC inputs in the category that have been the hallmarks of the M Series, they have added extra ‘intelligent’ functions, such as USB routing and channel COMPRESSORS All the models feature the new PROEL 24bit PROFEX DSP, one of the fi nest digital eff ect of its class, providing 256 studio-grade algorithms (including mono and stereo TAP DELAY and TAP DELAY + REVERB) and a convenient LCD display.

Designed and engineered in Italy by PROEL R&D, M mixers are hosted in an ultra-rugged stylish metal case with ABS sides, providing extended durability for a stage-proof use As a unique feature in the category, all the models include as standard both a padded carrying bag and metal brackets for 19” rack mounting.

The ultra-portable M602FX with 2 mono and 2 stereo channels provides the most demanding performers with all the functions necessary to mix a limited number of signals with utmost accuracy Features and Specifications: System type: Compact 6-channel 2-bus mixer Mic Input: Balanced XLR-F Line Input: Balanced JACK Input Sensitivity: MONO INPUT CHANNEL - Mic Input: from -10 to -50 dB MONO INPUT CHANNEL - Line Input: from +20 to -20 dB STEREO INPUT CHANNEL - Mic Input: -0 / -40 dB STEREO INPUT CHANNEL - Line Input: +20 / -20 dB Input Impedance: MONO INPUT CHANNEL - Mic Input: 2 Kohm MONO INPUT CHANNEL - Line Input:10 Kohm STEREO INPUT CHANNEL - Mic Input: 2 Kohm STEREO INPUT CHANNEL - Line Input: 10 Kohm Mono Input channel equalization: HIGH (shelving): ±15 dB @ 12KHz MID (peaking): ±15 dB @ 2.5KHz LOW (shelving): ±15 dB @ 80Hz Stereo Input Channel Equalization: HIGH (shelving): ±15 dB @ 12KHz MID (peaking): ±15 dB @ 2.5KHz LOW (shelving): ±15 dB @ 80Hz Effects: 256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs STEREO and MONO TAP DELAY REV + DELAY, REV + TAP DELAY, REV + CHORUS Crosstalk (meas.

at 1 KHz): > 82 dBu Power consumption: 32 W Noise (HUM & Noise unweighted): < -93 dBu THD + Noise at +4dB, 1kHz: < 0,008 % Power Supply: 18 VAC 500 mA (use only supplied AC/AC ADAPTER) Mains Supply Voltage: 110-120 VAC (±10%) 50 / 60 Hz (US plug) 230-240 VAC (±10%) 50 / 60 Hz (EU plug) 240 VAC (±10%) 50 / 60 Hz (UK plug) Weight: 1.8 lb Dimensions (W x H x D): 240 x 85 x 272 mm Made in China.This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer’s standard warranty plan for a period of one (1) year from the date of purchase.
