Sennheiser XSW 1-825 Wireless Dual Handheld Vocal System - A :548-572 MHz

Sennheiser XSW 1-825 Wireless Dual Handheld Vocal System Overview : 2-channel wireless system for singers and presenters Stable UHF band, built-in antennas and streamlined interface.

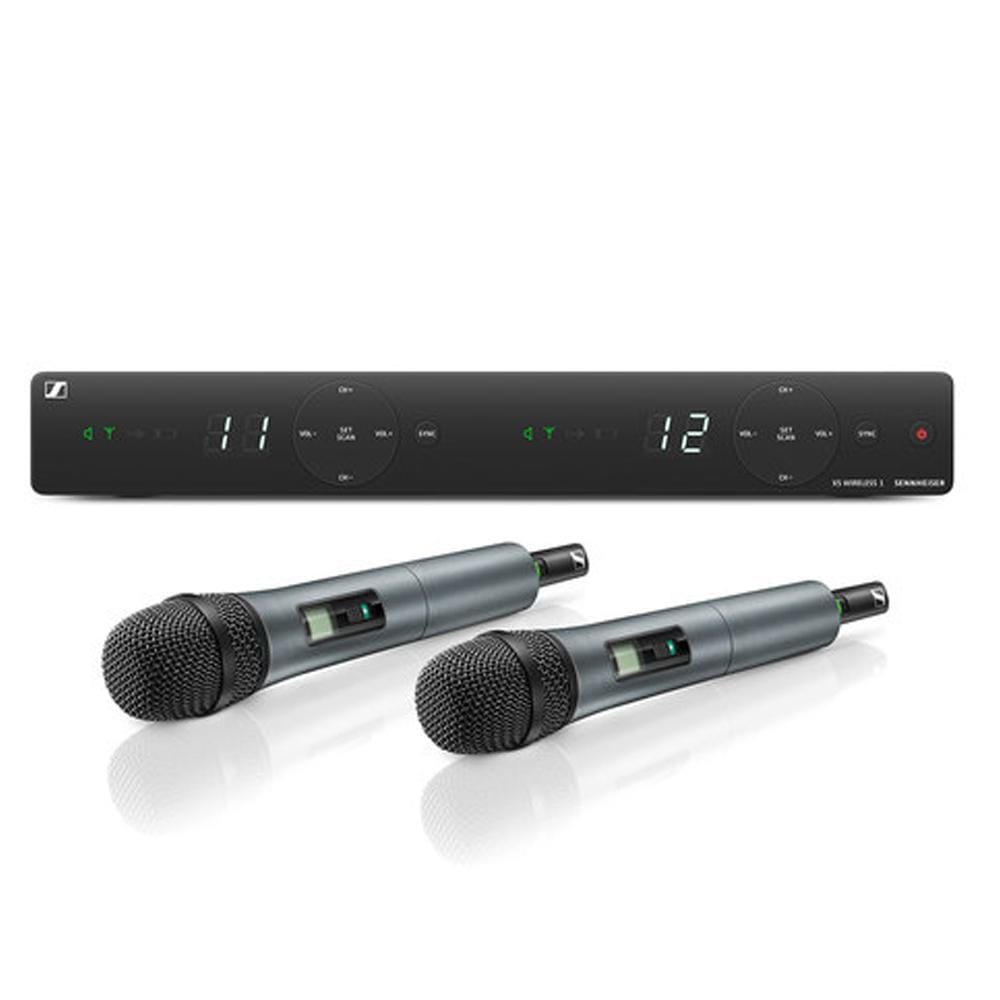

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser 's popular XS Wireless 1 series.

Features : Excellent live sound featuring Sennheiser's renowned evolution microphone capsules Antenna-switching 2-channel diversity reception Integrated antennas Automatic frequency management and synchronization via remote channel for easy setup Selectable UHF frequencies within a large bandwidth Up to 10 compatible channels Frequency range A :548-572 MHz C: 766-790 MHz EM-XSW 1 DUAL Dimensions approx 320 x 126.5 x 42 mm Weight approx.

620 g Power supply 12 V DC nom / 300 mA Output voltage (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu Housing Rugged ABS housing Sensitivity < 3 μV at 52 dB(A) rms S/N (at peak deviation) Squelch Adjustable from 3 dBμV to 28 dBμV AF frequency response 50 to 16,000 Hz (–3 dB) Audio adjustment range 45 dB, adjustable in 5 dB steps Line / Mic level 20 dB, switchable Receiver Principle Double superheterodyne Diversity principle Antenna switching diversity via internal antennas Specifications : Dimensions Approx.

260 x 50 mm Microphone Dynamic Weight Approx 245 g Pick-up pattern Cardioid RF output power 10 mW Operating time Approx.

10 hrs Power supply 2 AA size batteries, 1.5 V Housing Rugged ABS housing Sensitivity 0 to -30 dB, adjustable in 10 dB steps Input sensitivity 1.5 mV / Pa AF frequency response 80-16,000 Hz Made in Germany.
