Serving as an audio interface, digital-to-analog converter, or standalone mixer, the MOTU 24Ao combines 24 channels of very high-quality, balanced analog output with three banks of ADAT optical digital I/O for a total of 72 channels (24 inputs plus 48 outputs) in a single rack space.

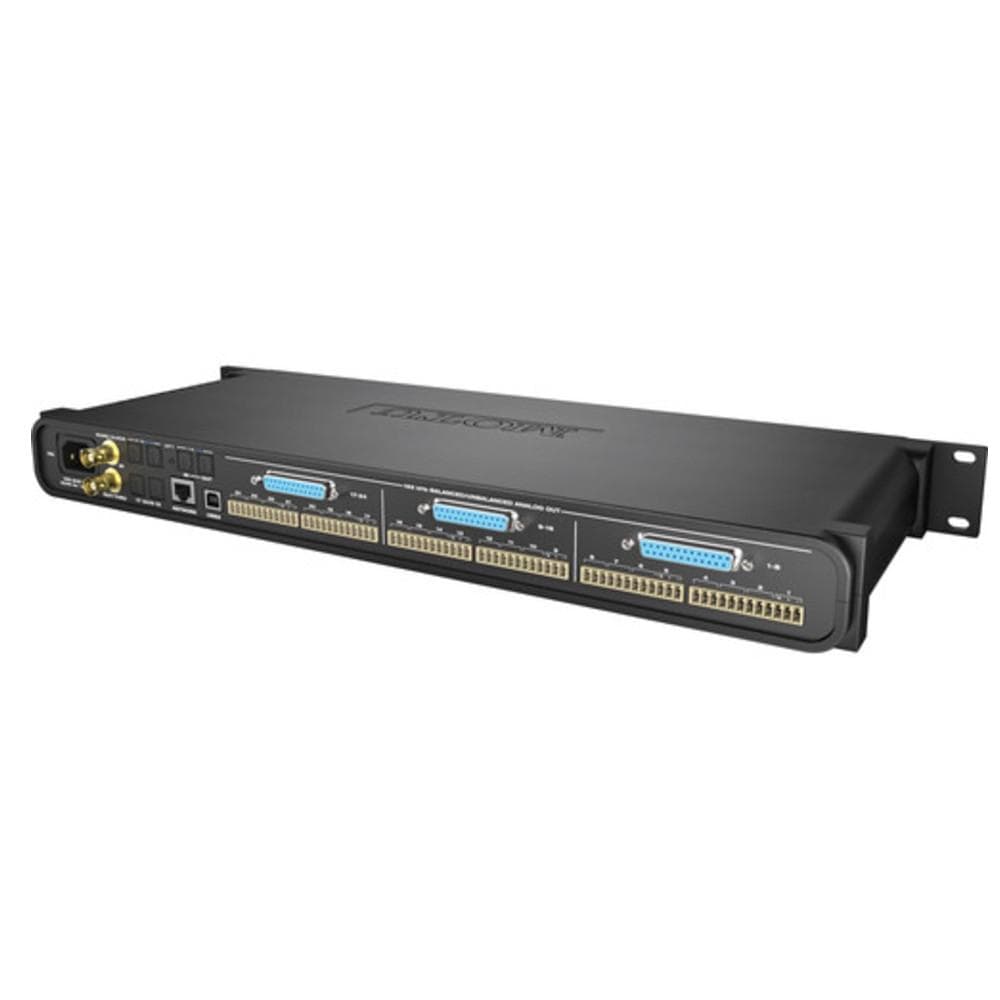

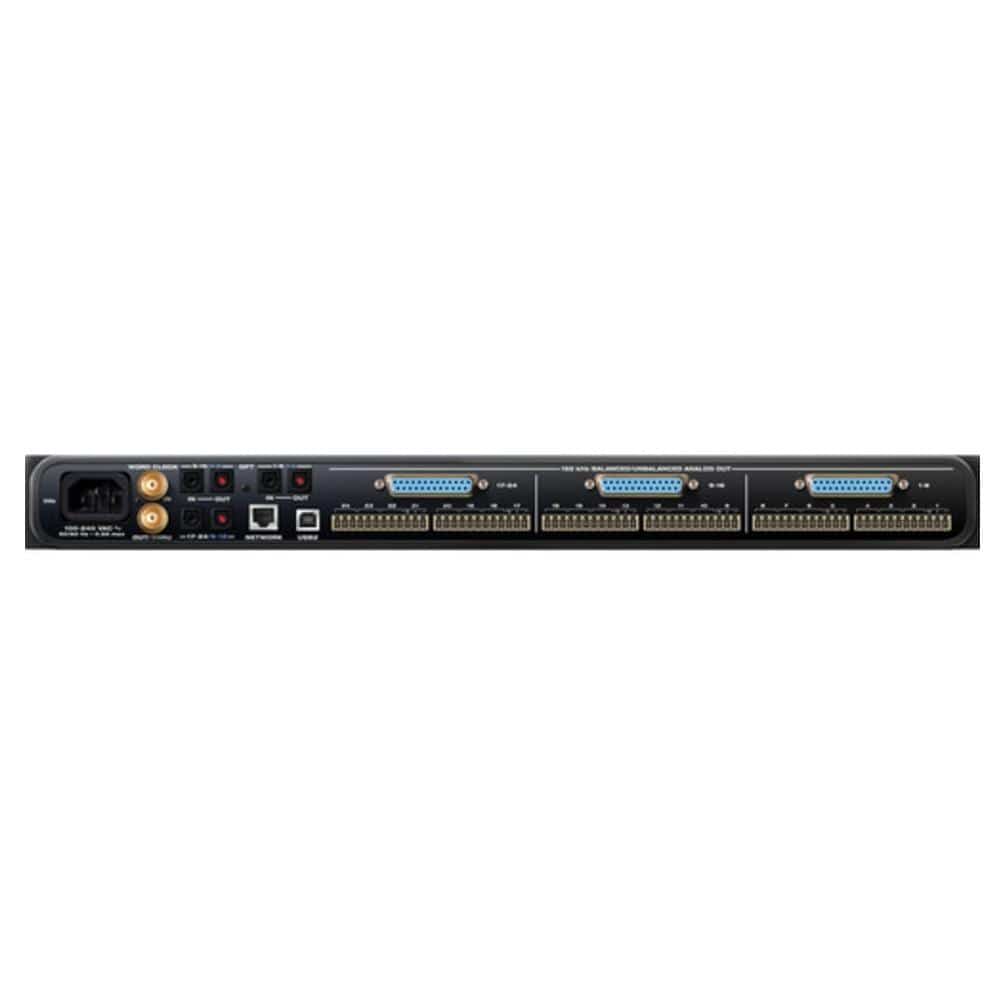

Analog outputs are supplied on convenient multi-channel D-sub and Phoenix connectors for studio and industrial installations. Powerful DSP delivers large console style mixing* with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. *Includes AudioDesk workstation software with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
The unit's extensive routing grid patches ins to outs, or splits inputs to multiple destinations. Use the 24Ao as a stand-alone mixer and control everything from the 24Ao's innovative web app running on your iPad, iPhone, tablet, smart phone, and laptop. Connect a second MOTU AVB interface (24Ai, 1248, 8M or 16A) with a simple Ethernet cable.
Add more I/O with the MOTU AVB Switch (sold separately). Build an AVB audio network with multiple switches and sub-millisecond latency, even over long cable runs. Stream hundreds of channels among devices and computers on the network.
From initial tracking to final mastering, the 24Ao delivers superb sound quality, state-of-the-art operation, and reliable performance.
At A Glance:
72 Simultaneous audio channels
24 high-quality, balanced analog outputs on three banks of multi-channel connectors (DB-25 D-sub and Phoenix), plus three banks of 8-channel ADAT optical for 24 inputs and 48 outputs.
Superb audio quality
Analog outputs produce 123 dB dynamic range and -110 dB THD+N (0.0003%) at -1 dBFS, Unweighted, 1 kHz.
Connects to a computer with audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works with any host audio software.
On-board DSP with mixing and effects
Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.
32-bit floating point processing
The 24Ai's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.
Includes AudioDesk workstation software with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
Add a 2nd MOTU AVB interface (24Ao, 1248, 8M or 16A) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).
AVB audio networking
Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network.
Flexible matrix routing and splitting
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
Stand-alone mixing with wireless control
Connect an Apple Airport or other Wi-Fi router directly to the 24Ai with a standard Ethernet cable and control the 24Ai's powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing.
Web app control
Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.

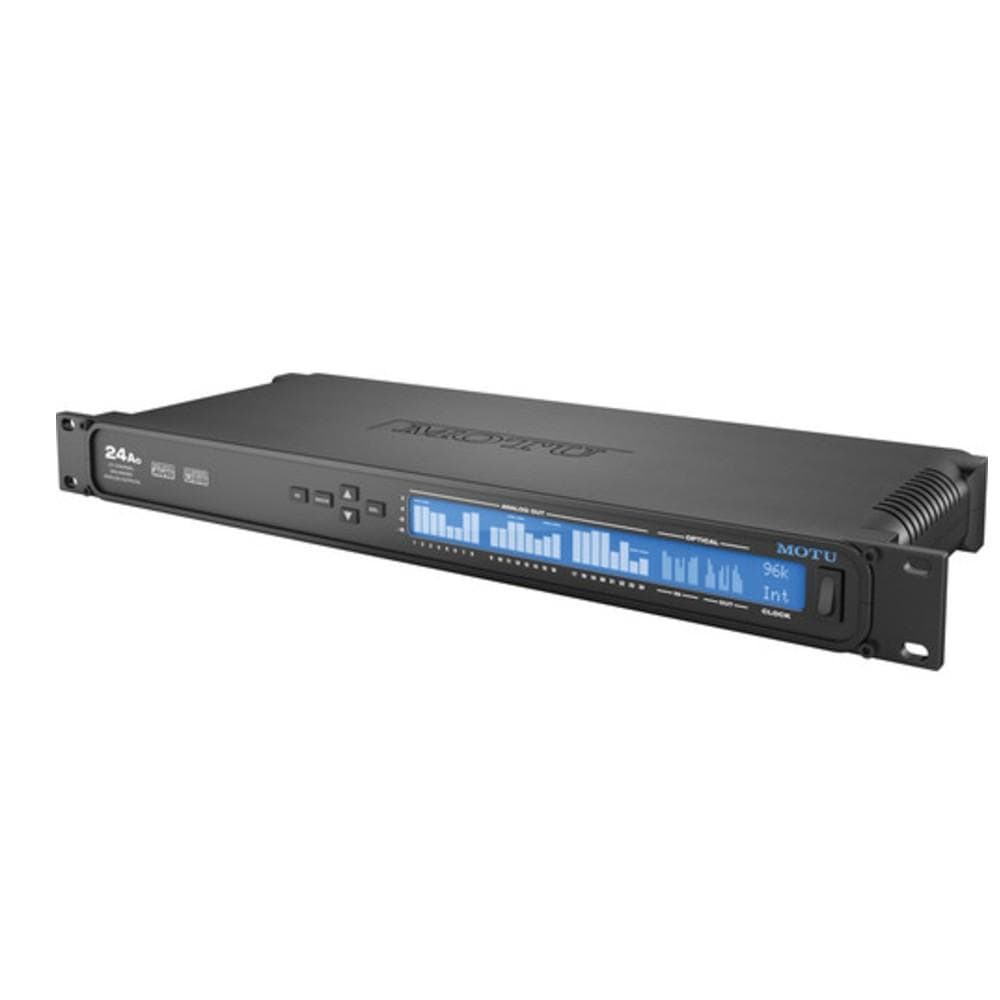

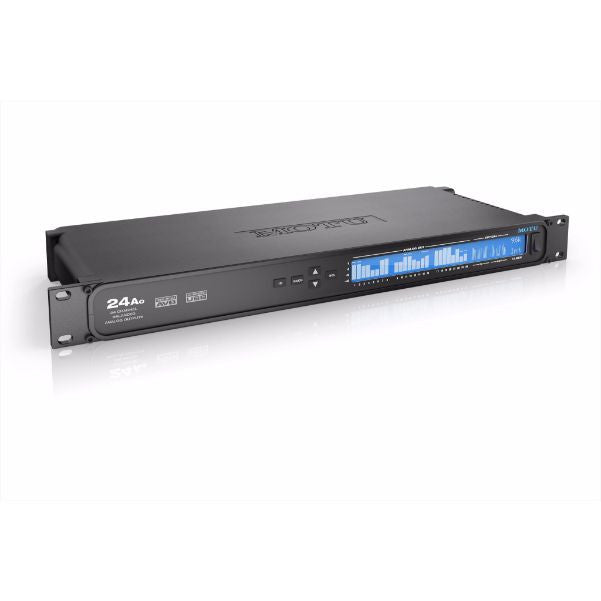

The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
Get your MOTU 24Ao USB/AVB Ethernet Audio Interface today at the guaranteed lowest price
