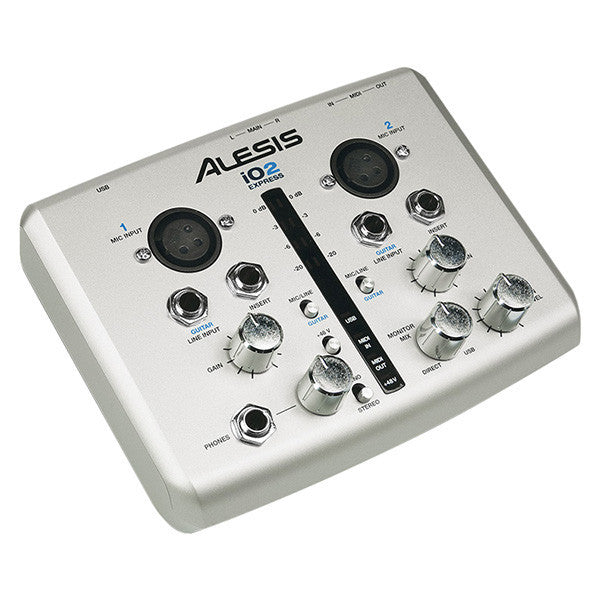

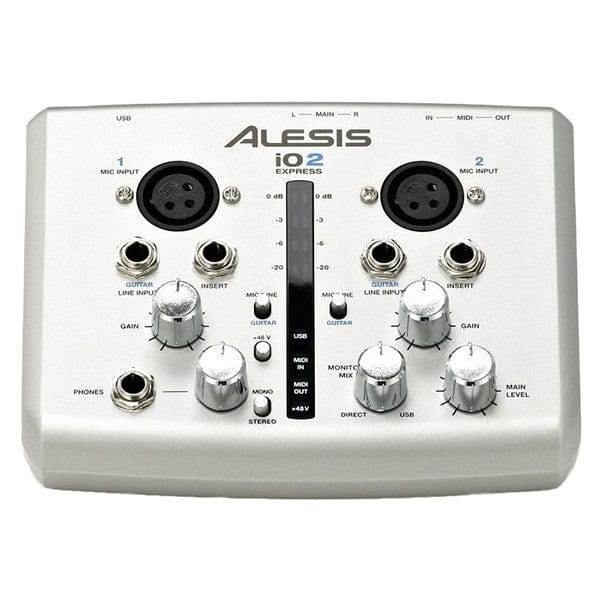

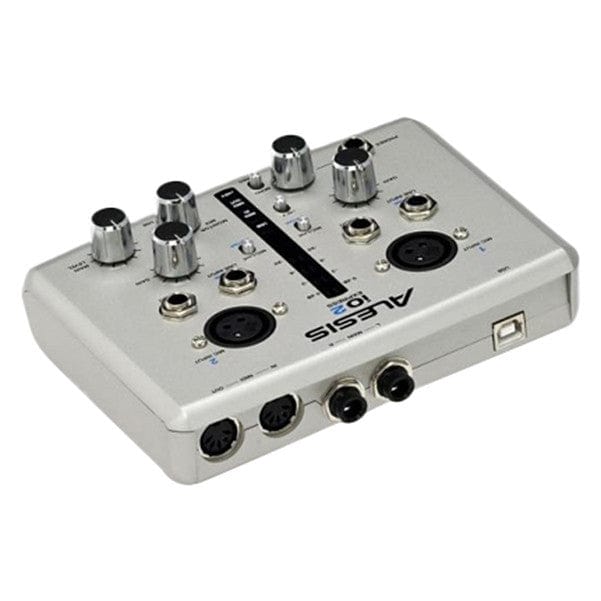

Alesis iO2 Express Audio Interface

Alesis iO2 Express Audio Interface Compact size with high-quality components The compact Alesis iO2 EXPRESS audio-recording interface is a fitting choice for portable recording setups and home studios Featuring a 2-channel USB interface for Mac and PC-based systems, this set allows you to record at up to 24-bit resolution.

The compact size of this interface comfortably fits into your laptop bag or backpack, yet it doesn’t compromise on the components and electrical system quality that is suitable for the studio Hassle Free Recording and Playback Featuring an exceptional design and 48-volt phantom power, this audio interface ensure that you capture microphone's complete signal.

Now you can record every detail of your performance or practise session with the high-quality analogue-to-digital and digital-to-analogue converters Your recordings can be played back on a monitoring system.

There is no need of a bulky power supply when using this USB bus powered interface Performance is vastly improved for minimal laptop battery drain that lets you track long sessions and gigs remotely.

You can also use the plug-and-play Alesis iO2 EXPRESS audio interface virtually on any computer Hands-On Control This audio interface comes with two input channels with an XLR microphone input for each channel.

A 1/4” TRS is included for external effects Each session can be monitored via dual 1/4”balanced outputs.

You can use remote tracking and alternative playback with the TRS headphone output Along with this, the 1/4” TS jack works with line-level sources and can accommodate direct connection of guitars.

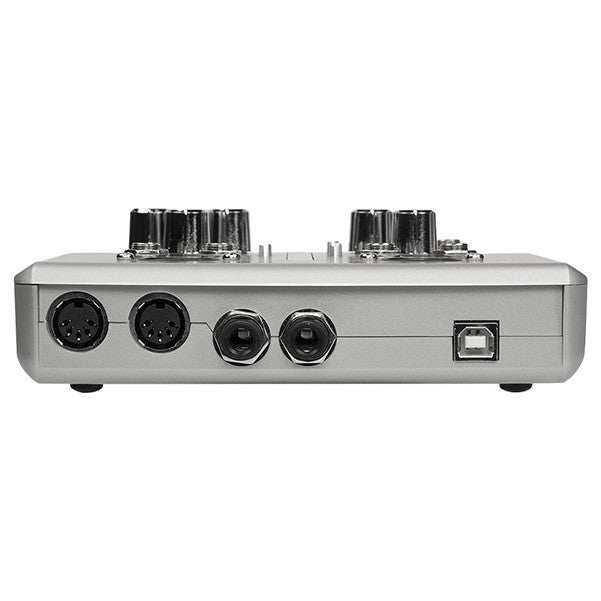

For controlling the software with the keyboard and pad controllers or other MIDI-compatible instruments, this interface is equipped with the traditional MIDI in-and-out jacks Efficient Level Controller The channels on this audio interface come with a gain trim control and a master level control.

When checking on headphones , you'll be pleased with the dedicated volume control This interface comes with a tricolour, stereo metering tree and lighted status indicator that let you monitor levels and operations.

Compact Size but No Compromise on Quality The compact size of this device makes it easy for you to carry It comfortably fits in your laptop bag or backpack.

The small size of this interface doesn’t compromise on the quality of the electrical system Features: It is included with 2-channel computer audio recording interface You can record up to 24-bit/48kHz audio into virtually any software Monitor sessions with balanced studio monitor and headphone outputs High-quality A/D and D/A converters, discrete-design preamps, 48V phantom power The Tricolour stereo level meter and lighted status indicators helps for visual monitoring Specifications: Frequency Response: Mic/Line Input To USB Out: ±0.1dB Mic/Line Input To Main Output (Through Adc/Dac) ±0.35dB Requirements Mac System Requirement: OS X 10.6, 10.7, and 10.8 Windows Requirement: XP, Vista, 7, or 8 Port Type: USB port Signal-to-Noise Ratio (SNR): Mic/Line Input (Balanced) To Insert Output: 110dB A-Weighted, Input Impedance At Xlr Or 1/4" Jack = 600Ω Guitar Input (Unbalanced) To Insert Output: 99dB A-Weighted, Input Impedance At 1/4" Jack = 600Ω Mic/Line Input (Balanced) To USB Output: 99dB A-Weighted, Input Impedance At Mic Or Line Jack = 600Ω Guitar Input (Unbalanced) To USB Output: 94dB A-Weighted, Input Impedance At 1/4" Jack = 600Ω Mic/Line Input (Balanced) To Main Output (Through Adc/Dac): 97dB A-Weighted, Input Impedance At Mic Or Line Jack = 600Ω Mic/Line Input (Balanced) To Main Output (Through Direct Monitor): 95dB A-Weighted, Input Impedance At Mic Or Line Jack = 600Ω Total Harmonic Distortion + Noise (Thd+N): Mic/Line Input (Balanced) To Insert Output: <0.001% Input Gain = Minimum, 1KHz Input Signal, Insert Out = 5.7dBV Guitar Input (Unbalanced) To Insert Output: 0.034% Input Gain = Minimum, 1KHz Input Signal, Insert Out = 5.3dBV Mic/Line In (Balanced) To USB Out: 0.003% Input Gain = Minimum, 1KHz Input Signal, USB Out = -0.3dBFS Guitar Input (Unbalanced) To USB Output: 0.034% Input Gain = Minimum, 1KHz Input Signal, USB Output = -0.7dBFS Mic/Line Input (Balanced) To Main Output (Through Adc/Dac): 0.005% Input Gain = Minimum, 1KHz Input Signal, Main Out = 5.6dBV Mic/Line Input (Balanced) To Main Output (Through Direct Monitor): 0.006% Input Gain = Minimum, 1KHz Input Signal, Main Output = 5.6dBV.
