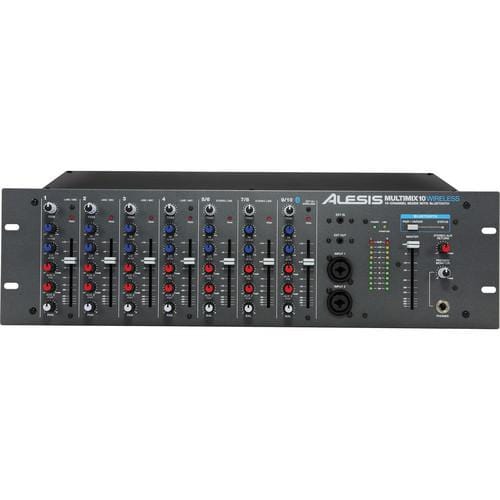

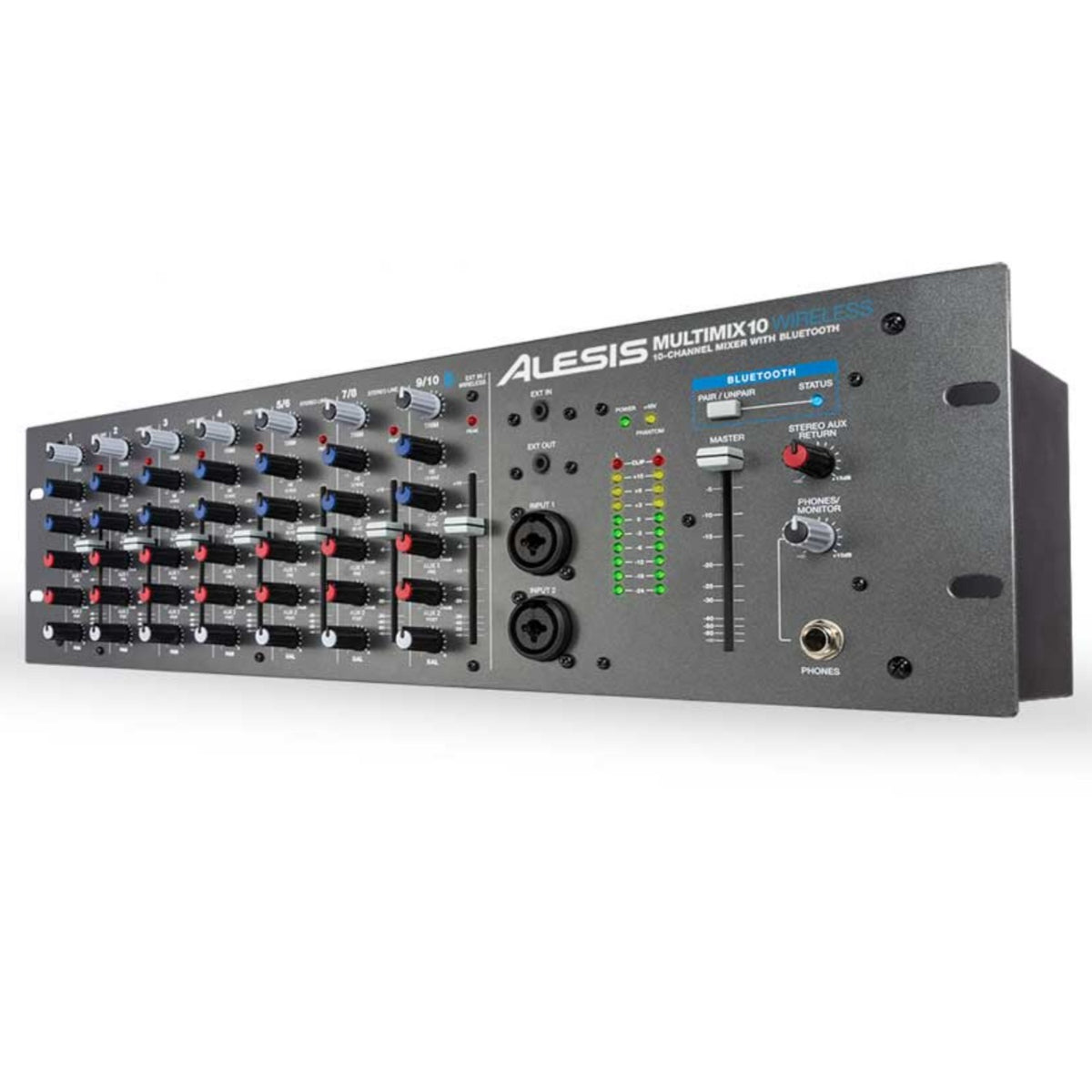

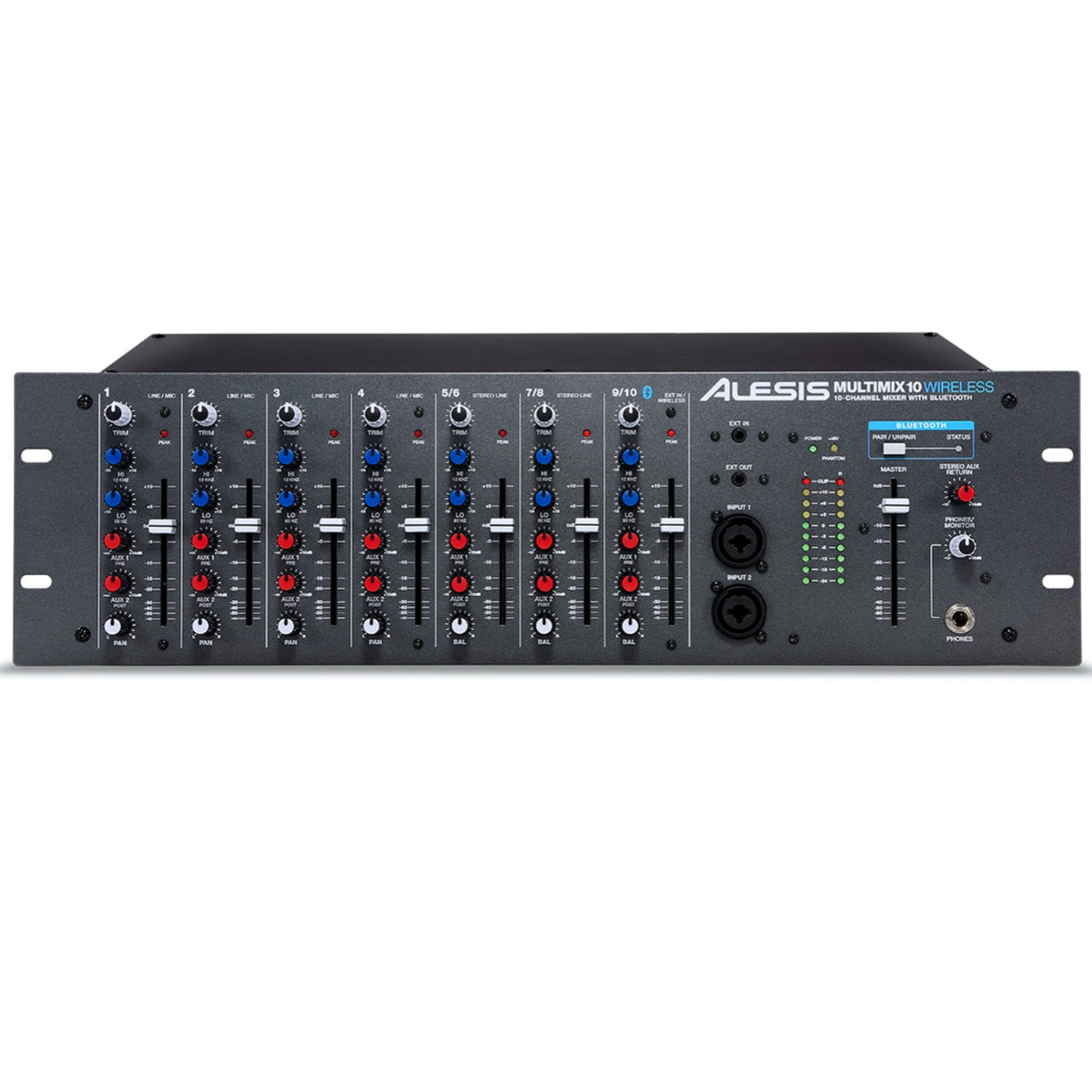

Alesis MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth
The MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth from Alesis is well suited to smaller clubs and venues, houses of worship and mobile rigs. The MultiMix features 4 mono channels, 2 stereo channels and a Bluetooth audio channel. Each channel offers a peak LED, trim knob, 2-band EQ, pre and post aux sends, a pan knob, and a smooth-travelling 60mm fader.
Channels 1 through 4 offer both XLR microphone inputs and balanced 1/4" TRS inputs. Phantom power can be engaged via a global switch on the rear panel. Channels 1 through 4 also provide 1/4" TRS send/return inserts, allowing you to add external processing to an individual signal path. Channels 1 and 2 also have doubled connections via XLR/TRS combo jacks on the MultiMix's front panel. The front panel connections override the respective rear inputs, making it easy to temporarily connect a microphone or other sound source without unplugging anything.
The stereo-paired analog channels, 5/6 and 7/8, offer left and right balanced 1/4" TRS inputs. Channel 7/8 also offers a stereo pair of RCA inputs. Channel 9/10 is dedicated to receiving a stereo audio signal from any Bluetooth-enabled device. Simple, single-button front-panel pairing makes it easy.

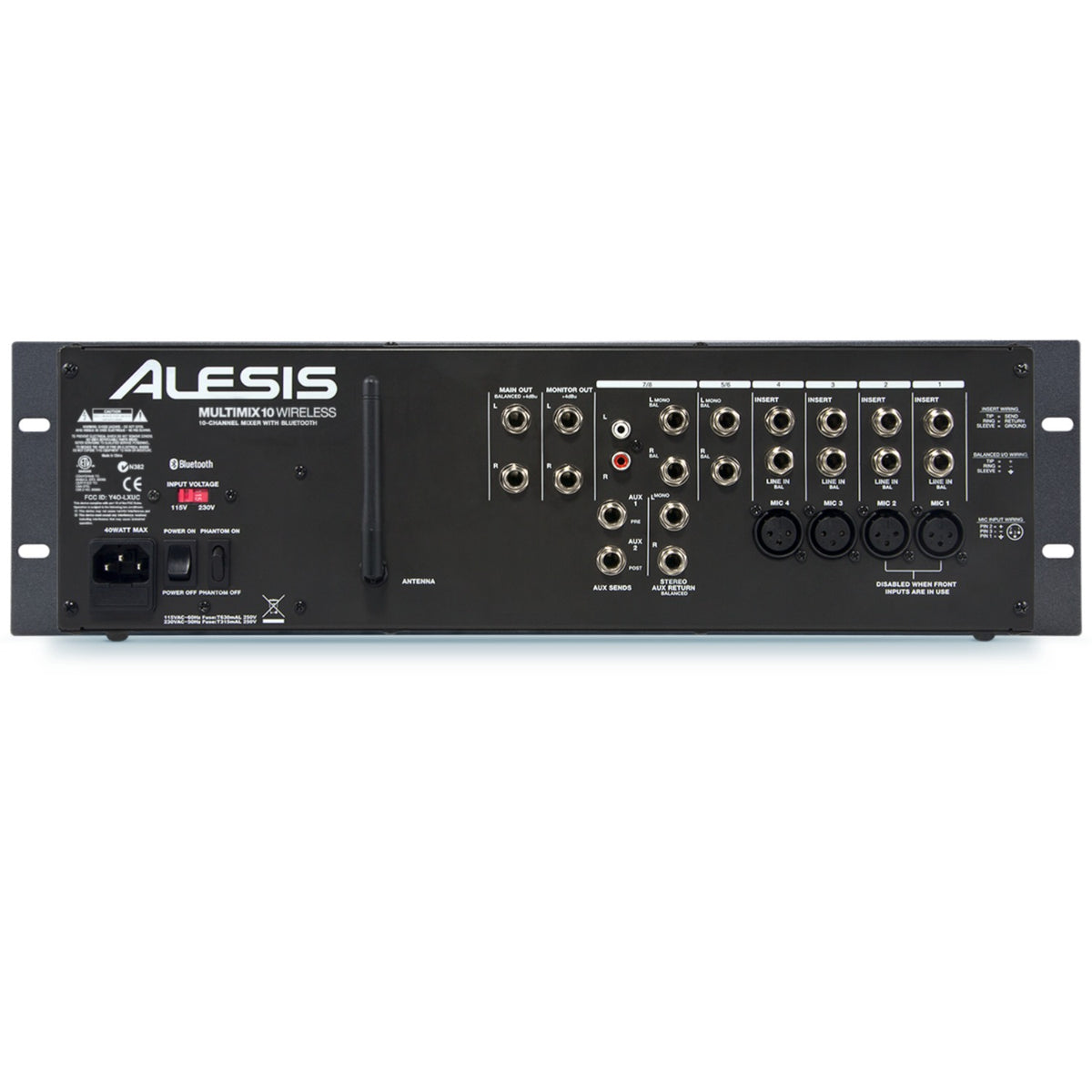

On the back panel, the MultiMix 10 Wireless features 1/4" TRS jacks for the pre- and a post-fader aux as well as the stereo aux return, main outputs and monitor outputs. An 1/8" jack allows a non-Bluetooth source to access Channel 9/10. Located alongside the master fader, the twin 10-stage LED meters feature red peak indicators. A dedicated 1/4" stereo headphone jack is provided; the level is controlled by the monitor/phones knob. A handy 1/8" output provides the main mix directly from the front panel.Features:
- 10-channel analog mixer in compact 3U rackmount design
- Built-in Bluetooth with 1-button pairing
- 6 XLR mic inputs with phantom power
- 2-band shelving EQ at 12kHz and 80Hz
- 2 aux sends (pre- and post-fader) for monitor returns and effects
- Front-panel XLR and 1/8" inputs
- 60mm linear faders on each channel
- Front-panel headphone jack
- Insert points on 4 channels, plus 2 channels of stereo line inputs
