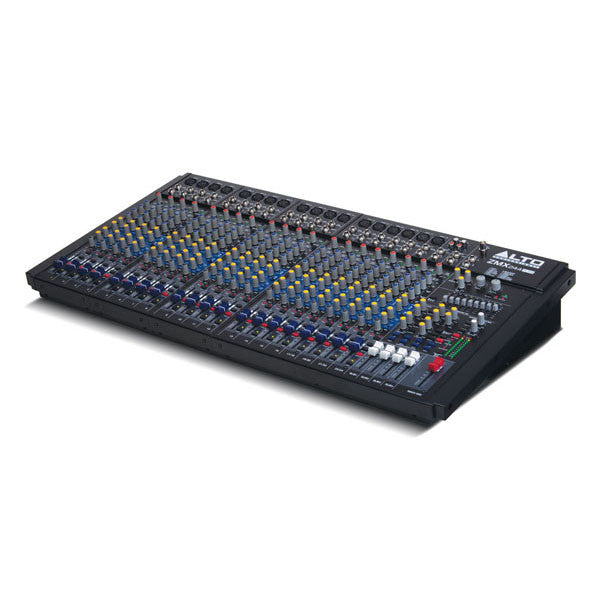

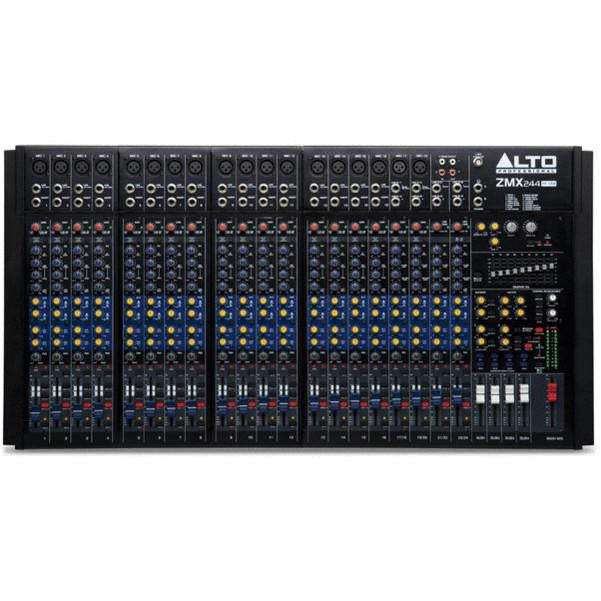

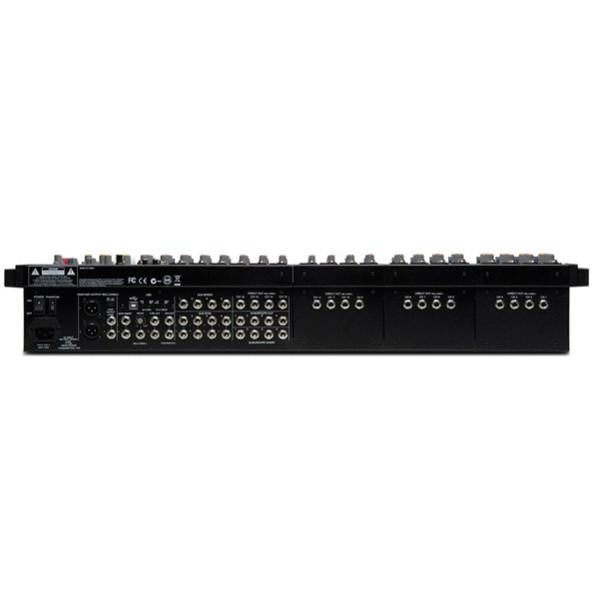

Alto ZMX244FXU 24-Channel Mixer with Effects and USB Interface

Alto ZMX244FXU 24-Channel Mixer with Effects and USB Interface

This item is out of stock


Professional Live Mixing, Effects, and USB Audio in One Mixer

Full-featured Professional Live Mixing Experience

The ZEPHYR ZMX244FX USB is our flagship ZEPHYR ZMX and is a 24-channel, 4-bus mixer with loads of inputs, outputs, routing, EQ, and effects, for any live performance reinforcement need. It features 18 ultra-low microphone inputs with balanced TRS jacks and insert points, a three-band EQ with a sweepable mid frequency on 16 channels, four channels of stereo inputs with 4-band fixed EQs, and a 4-bus assignable sub mixer. You also get 60mm high-precision faders and four AUX sends per channel (2 Pre/Post switchable pots). The ZMX244FX USB gives you the all the features you need to mix any professional live performance.

256 Onboard Alesis Effects

Whether you're mixing the church choir or a heavy metal band, give your mix a professional edge with 256 onboard 24-bit Alesis DSP effects. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, choruses and more. The ZMX244FX USB offers 16 variations of 16 professional effects from which to build, tweak, and dial in your sound.

USB Audio Interface

Capture your live mix with your laptop and computer recording software by simply connecting a USB cable to the ZMX244FX USB. This USB-enabled professional mixing console features a USB port that streams two channels of 24-bit audio out to your computer (Main Mix or Sub Mix 1/2). With the ZMX244FX USB you can record band rehearsals, club gigs, speaking engagements, worship meetings, and any other live performance reinforcement situation. What's more, this USB connection is bi-directional so you can also stream audio from your laptop to the ZMX244FX USB for audio and music playback!

High Headroom, Low Noise

The ZMX244FX is the ultimate ZEPHYR ZMX mixer with the most features and inputs in the series. Of course, the purity of your mix is essential so we held nothing back. The ZMX244FX is designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time. This professional mixer sets the standard of quality as our top-of-the-line model.

Visualize Your Mix

We designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

Features:

  • 44 total inputs
  • 3-band EQ with swept mid on microphone channels
  • 4-band fixed EQ on stereo line channels
  • Stereo 9-band graphic EQ
  • 4 AUX sends per channel: 2 PRE/POST faders switchable
  • 4-bus sub mixer
  • 60mm high precision faders
  • 24-bit Alesis DSP effects for 256 choices (16 presets × 16 variations)
  • USB audio interface for computer software recording and monitoring

Technical Specification:

Input Channels:

  • Microphone Input: Electronically Balanced
  • Frequency Response: 20 Hz to 20 kHz, ±1 dB
  • Distortion: ( THD&N) <0.03% at 0 dBu, 1kHz
  • Gain range: 0 dB to 50 dB (Mic)
  • SNR (Signal-to-noise ratio): 114 dB
  • Line Input: Electronically Balanced (Unbalanced)
  • Frequency Response: 20 Hz to 20 kHz, ±1 dB
  • Distortion: (THD&N) <0.03% at 0 dBu, 1 kHz
  • Gain range: -15 dBu to 35 dBu
  • Impedance Microphone Input: 1.4 kOhms
  • Channel Insert return: 2.5 kOhms
  • All Other Input: 10 kOhms or Greater
  • Tape Out: 1 kOhms
  • All Other Outputs: 120 Ohms

Equalization:

  • Hi Shelving: ±15 dB @ 12 kHz
  • Mid bell: ±12 dB @ 100 Hz - 8 kHz
  • Low shelving: ±15 dB @ 80 Hz
  • MAIN EQ: 9 EQ (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz) ±15 dB
  • DSP Section: A/D and D/A converters 24-bit
  • DSP Resolution: 24-bit
  • Type of effects: Large Hall, Medium Hall, Large Room, Medium Room, Karaoke, Short Spring Reverb, Long Spring Reverb, Chamber, Mono Delay, Mono Echo, Stereo Echo, Flanger, Chorus, Reverb + Chorus, Reverb + Delay, Thickener
  • Presets: 16
  • Controls: 16-position preset selector
  • Clip LED
  • Mute switch with peak LED Indicator

Main Mix Section Noise (Bus noise)

  • Fader 0 dB, Channels muted: -94 dBu
  • Fader 0 dB, All Input Channels Assigned and Set To Unity Gain: -92 dBu
  • Phantom Power: Mic Pin 2 / Pin 3 and Pin 1 47±2V
  • Power supply main voltage: 100 V - 230 V
  • Dimensions (WxLxH): 765mm x 400mm x 115mm
  • Weight: 23.4 lb
