APO-SYMPHONYIO8X8PLUS8MP
Shipping Details
Out of stock
Premium Warranty - 1 Year ₹15999
Premium Warranty - 2 Years₹23999
TOTAL PRICE OF BUNDLE
₹417,973
₹507,250

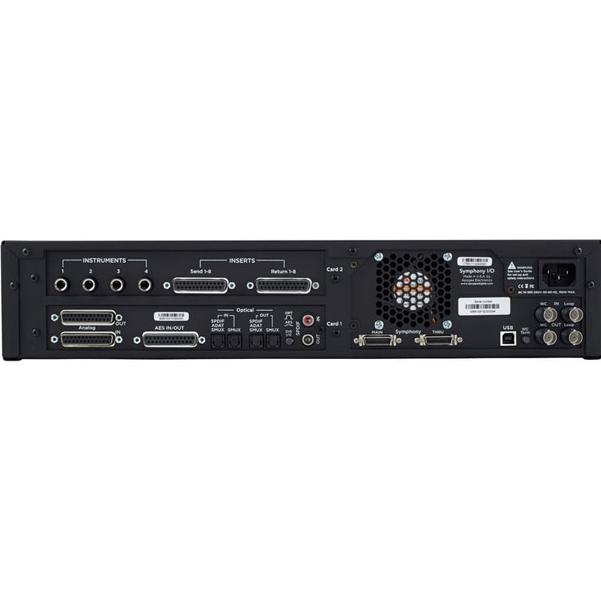

Apogee Symphony I/O 8x8 plus 8mp Audio Interface: Features: 8 analog Inputs Sub D-25 + 8 analog Outputs Sub D-25 S/PDIF coaxial/optical I/O ADAT I/O AES I/O 8 built-in mic preamps 4 Hi-Z 1/4" instrument inputs Dual multi-function encoder knobs GUI display for adjustment of function parameters Assignable 10-segment peak metering for 16x channels 7-segment sample rate display 2x independent 1/4" headphone outputs PCI, USB and ethernet connectivity Temperature controlled fan Digidesign Pro Tools HD PCI direct connection Word clock I/O Dimensions: 19"/2U (removable rack ears) Requires Mac OS X 10.58 or higher Specifications: INPUTS Analog Inputs 8 built-in mic preamps Digitally controlled, 85dB microphone preamps 4 Hi-Z 1/4” instrument inputs capable of handling high level instruments Selectable 48v phantom power, Soft Limit and phase invert 8 balanced inputs on 1 DSUB 25-pin connector Inserts 8 balanced software assignable analog insert points Return 1-8 on 1 DSUB 25-pin connector Digital Inputs *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector *Optical IN: Supports ADAT, SMUX & S/PDIF ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector Coax IN: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector OUTPUTS Analog Outputs 8 balanced outputs on 1 DSUB 25-pin connector Inserts 8 balanced software assignable analog insert points Send 1-8 on 1 DSUB 25-pin connector Digital Outputs *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector *Optical OUT: Supports ADAT, SMUX & S/PDIF ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector Coax OUT: 2 channels of S/PDIF, up to 192 kHz on 1 RCA connector.
