ART-MX622
Shipping Details
Out of stock

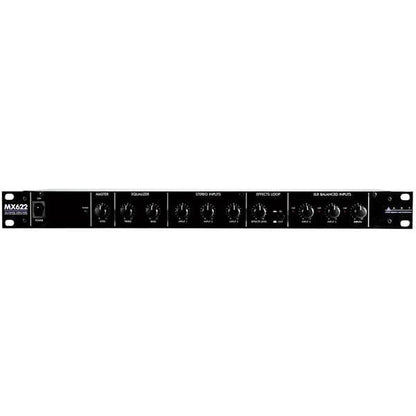

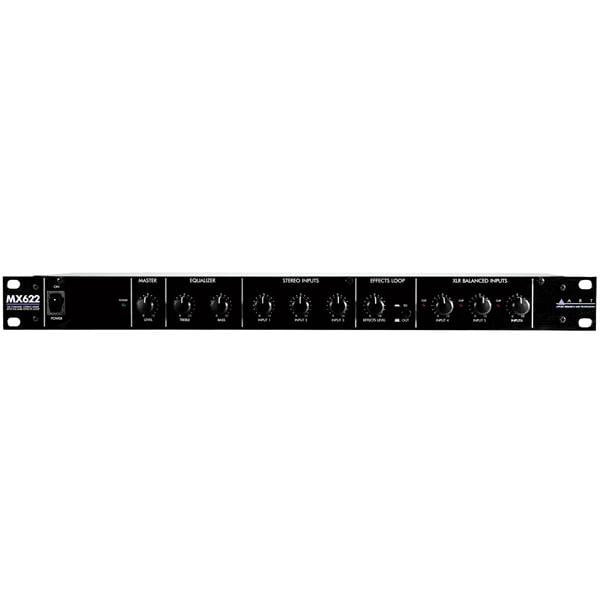

ART MX622 6 Channel Stereo Mixer Overview: The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer.

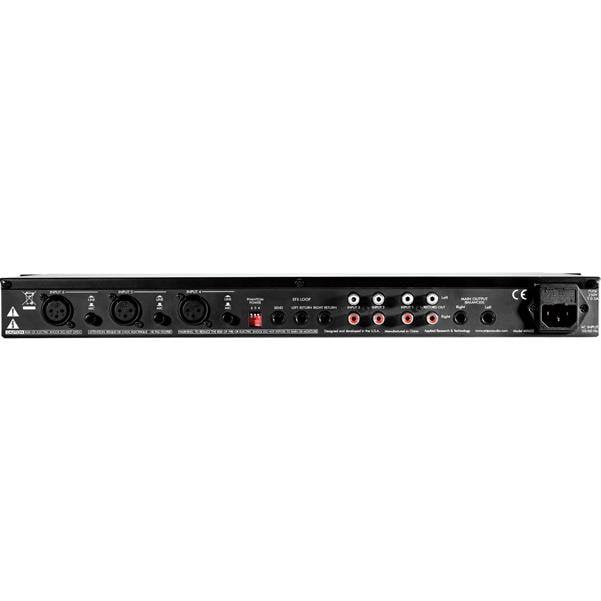

The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation Features: Three Balanced XLR Inputs Switchable Mic/Line Level Three Stereo RCA Inputs with Separate Level Controls Level Control and Clip Indicators Selectable 15-volt Phantom Power for Mic Channels Balanced TRS 1/4-inch Main Output Jacks with Master Level Control Versatile Two-Band Master EQ Separate Stereo Record Outputs Effects Loop with Level Independent Level Control Specifications: Input Connections: XLR-F balanced (x3) 1/4-inch unbalanced (x2) 3 pairs stereo RCA (6 total) Output Connections: TRS balanced 1/4-inch (x2) 1/4-inch unbalanced (x1) RCA (x2) Input Impedance: 600/22K Ω mic/line XLR inputs / 10K Ω RCA inputs / 22K Ω 1/4-inch effects returns Output Impedance: 50 Ω 1/4-inch main outputs / 1K Ω RCA record outputs / 100 Ω effects output Total Harmonic Distortion: .01% Typical Signal to Noise Ratio: > 90dB typical Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs Phantom Power: +15Volts DC (regulated / low noise) Power Requirements: USA - 105 to 125 VAC / 50-60Hz, 15 W typical Equalizer Range: +/-12dB @ 100Hz & 10kHz Dimensions: 1.75"H x 19"W x 6.0"D (44.5mm x 483mm x 152mm) Weight: 6.2 lbs (2.8 kg).
