ART MX821 8 Channel Mic-Line Mixer with Tone

ART MX821 8 Channel Mic-Line Mixer with Tone Overview: The ART MX821 is a versatile rack mount mixer combining eight independent input channels into a single mono line level mixed output Essential features include: XLR mic and 1/4-inch line inputs, individual level and tone controls, switch-selectable +48 Volt phantom power on each channel.

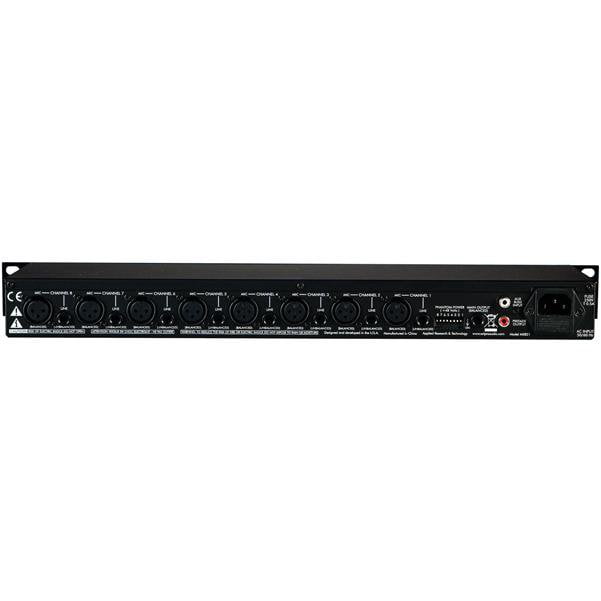

Main output is balanced low impedance An additional pre-fade output and auxiliary buss input jacks allow patching multiple MX821''s together when more channels are needed.

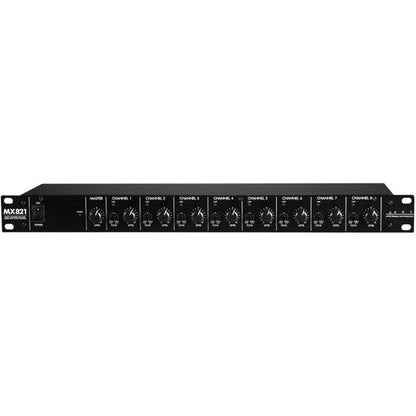

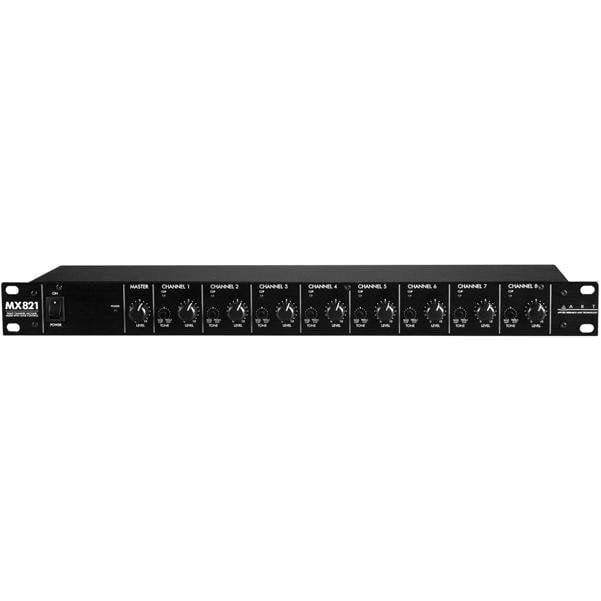

Built in power supply and single high 19-inch rack mount format allows for easy installation and reliable long term operation Features: Eight Independent Input Channels Level and Tone Controls on each Channel Balanced XLR and 1/4-inch Unbalanced Line Inputs on each Channel 48 Volt Phantom Power on XLR inputs with DIP Switch for each Channel Balanced TRS 1/4-inch Main Output Jack with Master Level Control RCA-type Pre-Fade Output (Not Affected by Master Level Control) RCA-type Aux Buss Input Jack for Channel Expansion Solid Single High Rack Mount Chassis with Built In Power Supply Specifications: Input Connections: XLR-F balanced (8), 1/4-inch unbalanced (8), RCA (1) Output Connections: 1/4-inch balanced TRS (1), RCA (1) Input Impedance: 2K Ohms Mic, 20K Ohms Line, 10K Ohms Aux.

Bus In Output Impedance: 200 Ohms balanced Main Out, 100 Ohms Pre-Fade Out Maximum Input Level: -6dBu Mic, +18dBu Line Maximum Output Level: +27dBu balanced, +21dBu unbalanced Phantom Power: +48 Volts DC (regulated/low noise) Maximum Gain: 65dB/39dB mic/line Signal to Noise Ratio: >90dB typical THD: <0.01% typical Equivalent Input Noise -108dBu typical CMRR: >52dB typical Phase Shift: <10 degrees, 20Hz - 20kHz Power Requirements: 120VAC / 50-60Hz, or 230VAC / 50 Hz, 15VA Dimensions: (HxWxD in) 1.75 x 19 x 6 Dimensions: (HxWxD mm) 44.5 x 483 x 152 Weight: 6.3 lbs (2.9kg).
